I n i t i a l C o n f i gu r a t i o n
2.
Note: Only Turbo Product Coding is acceptable for FEC when the CDD-56X is
NOTE
3.

Set the Vipersat Configuration

1.
2-10
Enter R to access the Rx Configuration screen shown in figure 2-8. Set
the Rx parameters for Frequency, Data Rate, FEC, Code Rate, and
Modulation as specified by the network administrator.
The Receive parameters must be set for each Demod. Enter Z at the com-
mand prompt to select the desired Demod, then set the Receive parameters
for that Demod. Repeat for each Demod.
running in Vipersat mode.

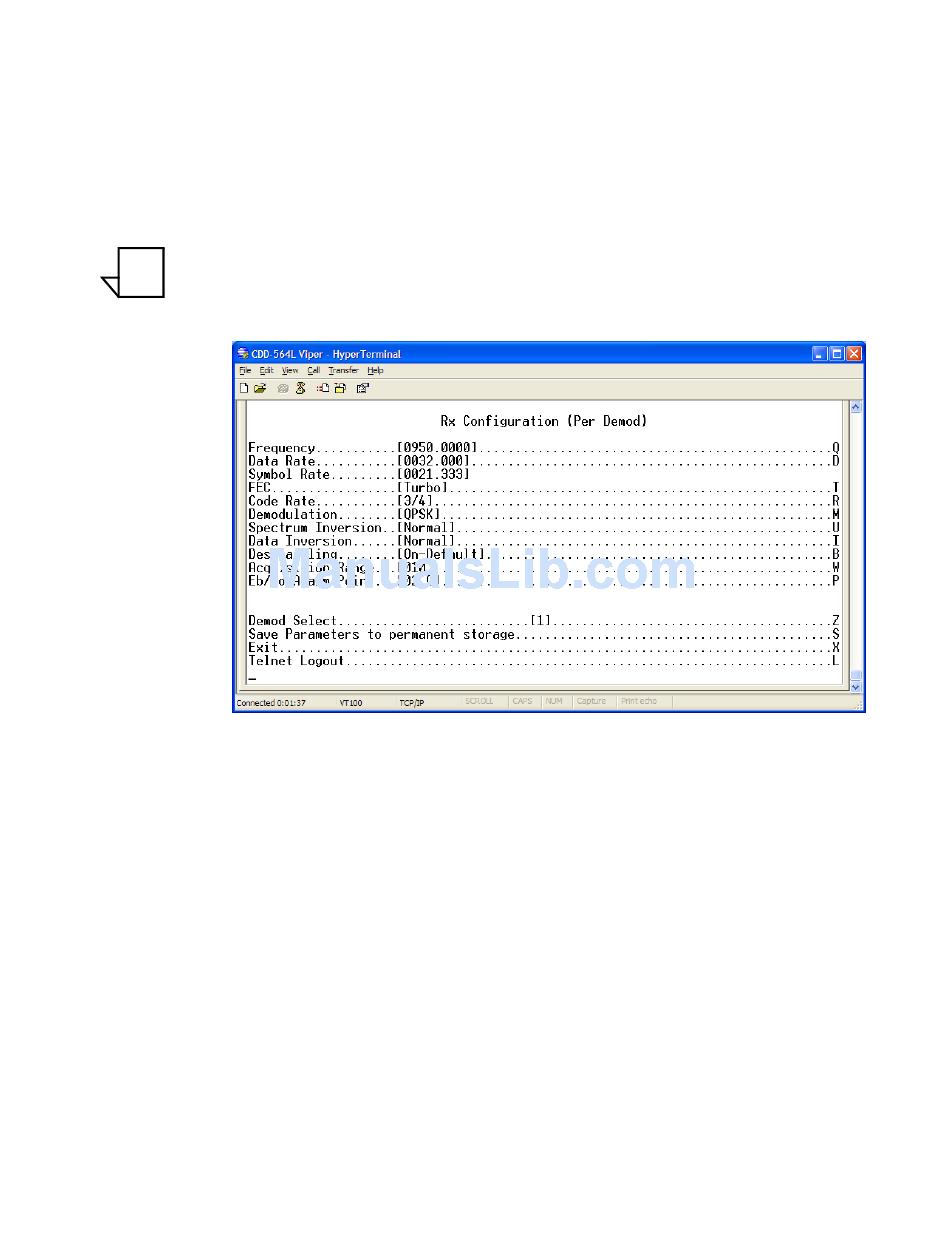

Figure 2-8
Save the settings to flash by entering S at the command prompt.
Enter V at the Main Menu command prompt (figure 2-1) to select the
Vipersat Configuration menu shown in figure 2-9.
Rx Configuration screen
V i p e r s a t C D D - 5 6 X S e r i e s U s e r G u i d e
