Entering an M at the command prompt brings up the dialog shown in
figure 3-19 allowing the minimum data length, in milliseconds, to be changed
for the target CDD-56X.

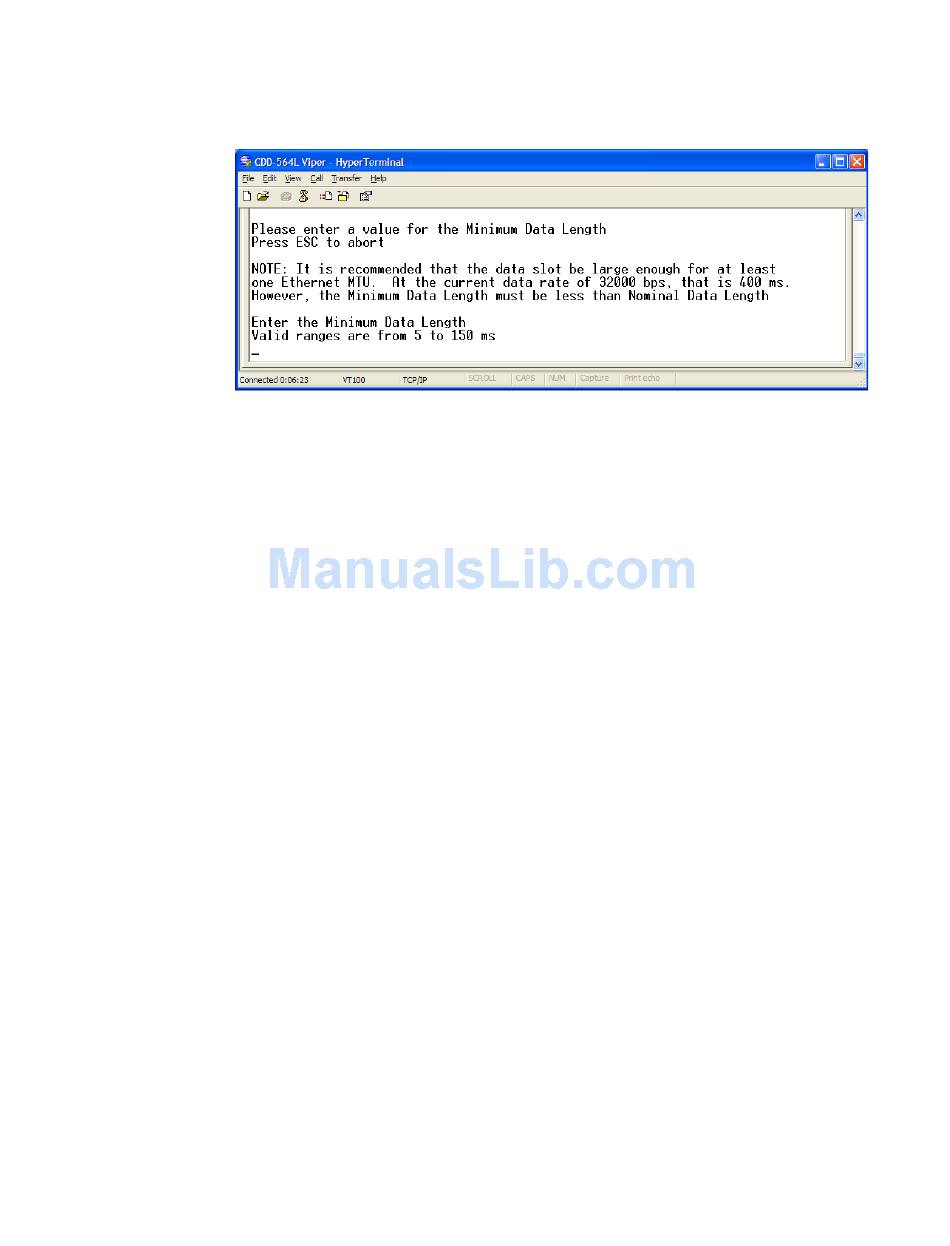

Figure 3-19
Minimum Data Length prompt

Slot Cycle Length

This menu item is for information only and displays the Slot Cycle Length in
milliseconds and bytes for the remotes in the group. This value represents the
total amount of time—preamble, data length, and guardband—allocated to the
Remote terminal during one spin cycle.

Slot Start in Cycle

This menu item appears in the STDMA screen when the Unit Role is Remote;
however, it is not relevant since a Remote configuration does not enable
STDMA.

Set Remotes

This menu item appears in the STDMA screen when the Unit Role is Hub with
No Expansion.
Entering an R at the command prompt displays the STDMA Remotes Menu as
shown in figure 3-20. This screen is used to define and make modifications to
the Remotes that belong to the STDMA group for the Hub burst controller, as
well as to display the burst map status information for each Remote.
