V i p e r s a t C o nf i g u r a t i o n
at the STDMA Remotes Menu command prompt displays the Remote Policies
screens shown in figure 3-23 (GIR Hub) and figure 3-25 (Entry Channel Hub).

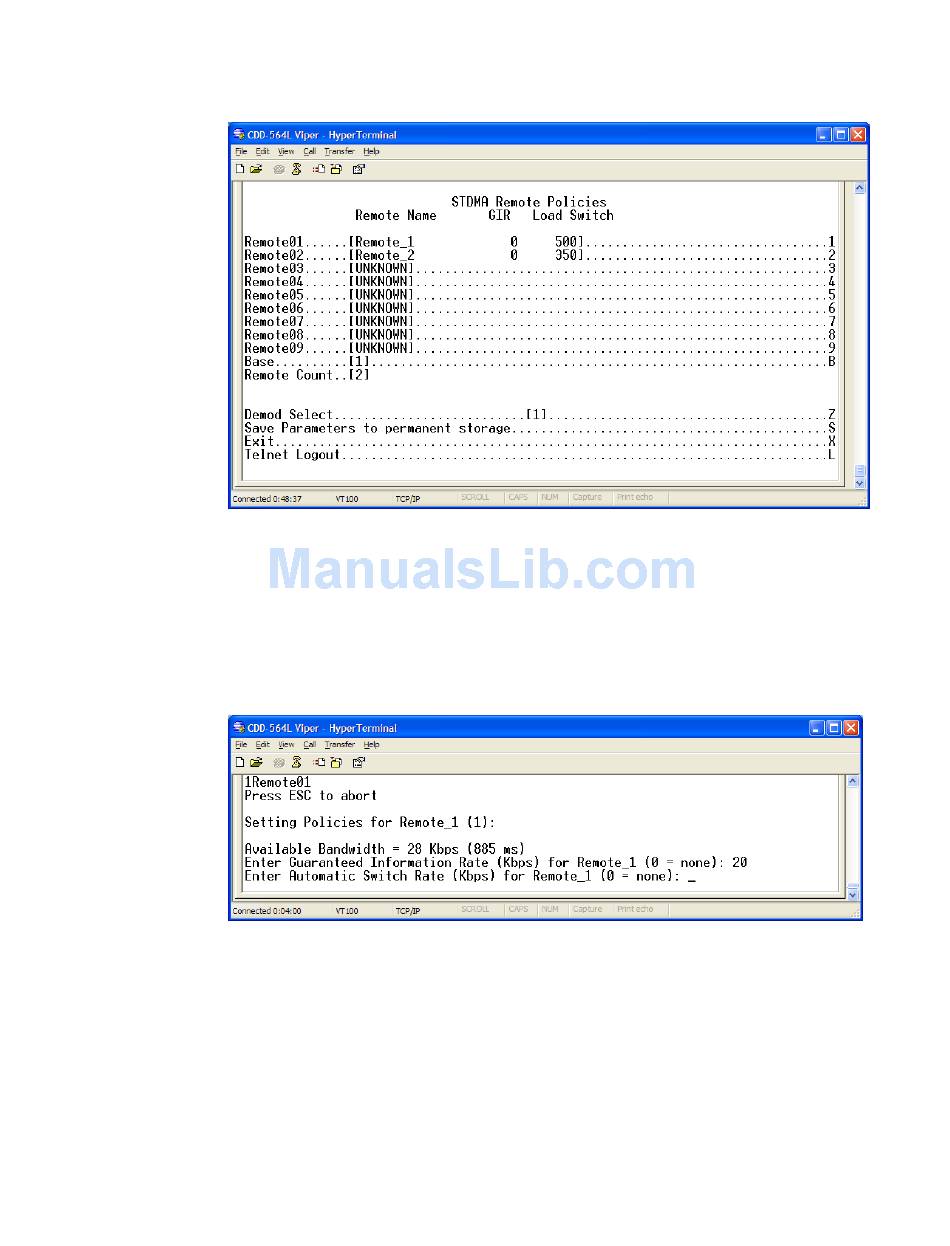

Figure 3-23
STDMA Remote Policies screen (GIR Hub)
Entering the Remote number at the command prompt in figure 3-23 allows the
Guaranteed Information Rate and the Automatic Load Switch Rate for that
Remote to be set, as shown in figure 3-24. Note that the Available Bandwidth is
displayed for reference in this screen to assist with entering the appropriate
rates. The cycle length for GIR is limited to a maximum of one second.
Figure 3-24
GIR Remote Policies prompt
Set the Automatic Load Switch Rate to a value greater than the GIR to allow the
Remote to be automatically switched out of STDMA and into SCPC mode
when traffic exceeds the GIR. A Switch Rate of 0 will prevent the Remote from
being switched out of STDMA and into SCPC mode.
The Remote Policies screen for an Entry Channel Hub type allows the SCPC
data rates and switch types to be specified for when the Remotes will switch and
the desired starting points for communications.
V i p e r s a t C D D - 5 6 X S e r i e s U s e r G u i d e
3-22
