V i p e r s a t C o nf i g u r a t i o n

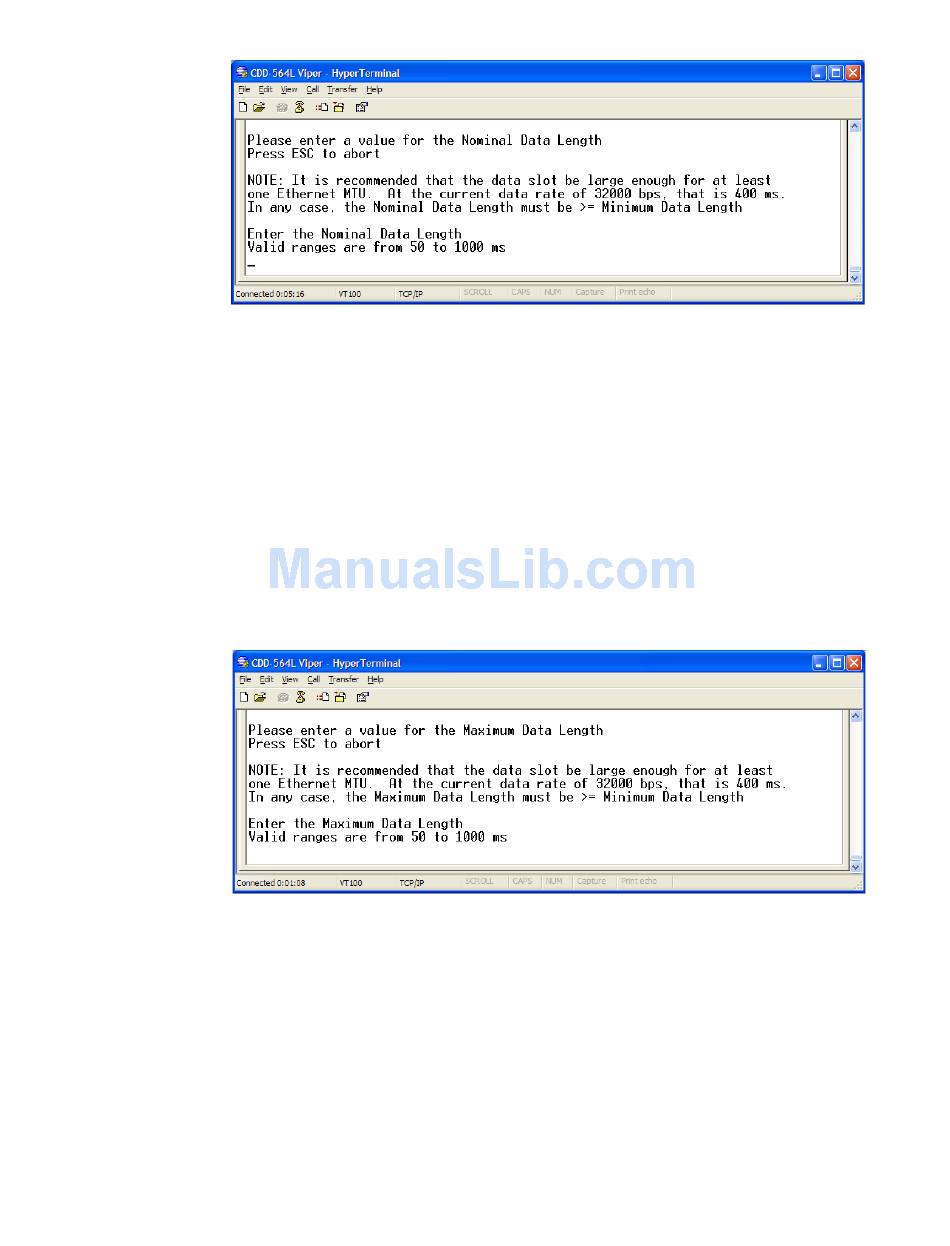

Figure 3-17
Nominal Data Length prompt

Maximum Data Length

This menu item, which appears for Dynamic Cycle Hub type, displays the
current Maximum Data Length in milliseconds and bytes for the remotes in
the group, and represents the maximum amount of data that can be transmitted
or received in one spin of the STDMA cycle by each of the remotes belonging
to that group. This is the maximum amount of time that the remote is provided
to send data in the cycle.
To change this setting, enter B at the command prompt to display the dialog
shown in figure 3-18.
Figure 3-18
Maximum Data Length prompt

Minimum Data Length

This menu item, which appears for all Hub types except Fixed, displays the
current Minimum Data Length in milliseconds and bytes for the remotes in the
group, and represents the minimum amount of data that can be transmitted or
received in one spin of the STDMA cycle by each of the remotes belonging to
that group. This is the minimum amount of time that the remote is provided to
send data in the cycle.
