M e n u D e s c r i p t i o n s
Ensure that the Working Mode is set to Router-Vipersat.
If it is not, enter C at the command prompt and change the setting by selecting
4, as shown in figure 3-3. The unit will reboot automatically in order to imple-
ment the change for this setting.
Note: If the Router-Vipersat option does not appear as a selection, the Vipersat
NOTE
From the Administration menu, enter an F at the prompt to display the Feature
Configuration screen shown in figure 3-4.
3-4

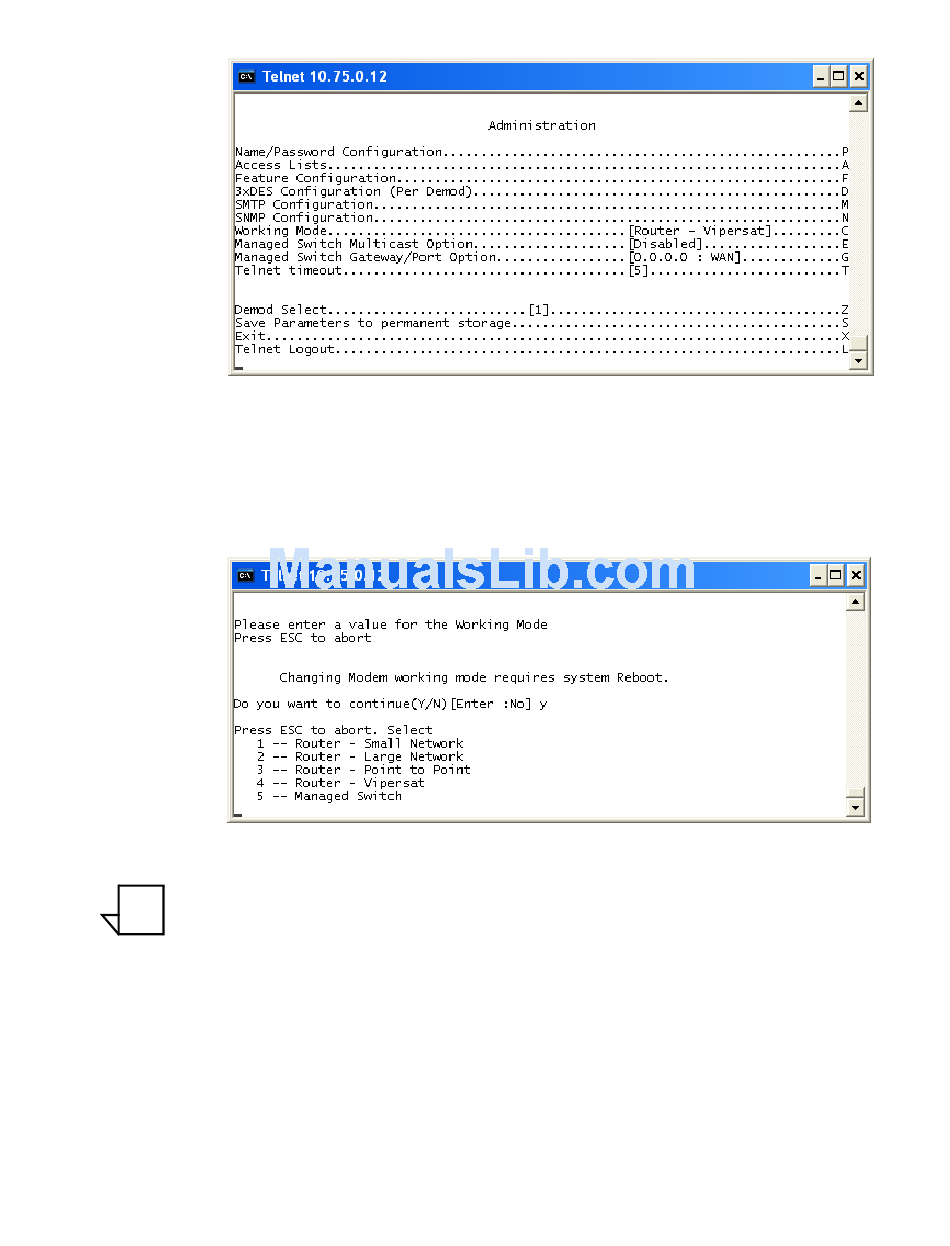

Figure 3-2
Figure 3-3
Feature Code has not yet been entered into this unit. Input the Vipersat
code as described in the next section..
Administration screen
Working Mode dialog
V i p e r s a t C D D - 5 6 X S e r i e s U s e r G u i d e
