Auto Switching; Figure 3-38 Automatic Switching Screen - Comtech EF Data Vipersat 564L User Manual

V i p e r s a t C o nf i g u r a t i o n
Automatic Switching for the CDD-56X is an option that is available only when
configured as an STDMA Hub unit (burst controller). Note that Automatic
switching does not apply to either a Hub with Expansion or a Remote with
Expansion; these configurations operate in dedicated SCPC mode and all
switching control is performed by the VMS. As is shown in table 2-2, Auto
Switching should be Disabled for these two configurations.
The Auto Switching feature must be Enabled (as described in the section
"Feature Configuration" on page 3-5) in order to allow any associated Remote
modems to perform STDMA/SCPC switching. In order for a Remote modem in
the group to be automatically switched between STDMA and SCPC modes, the
Auto Switching feature of that Remote must be Enabled as well.
Selecting Automatic Switching from the Vipersat Configuration menu
shown in figure 3-6 (enter A) for a CDD-56X operating as a network Hub will
display the menu shown in figure 3-38.

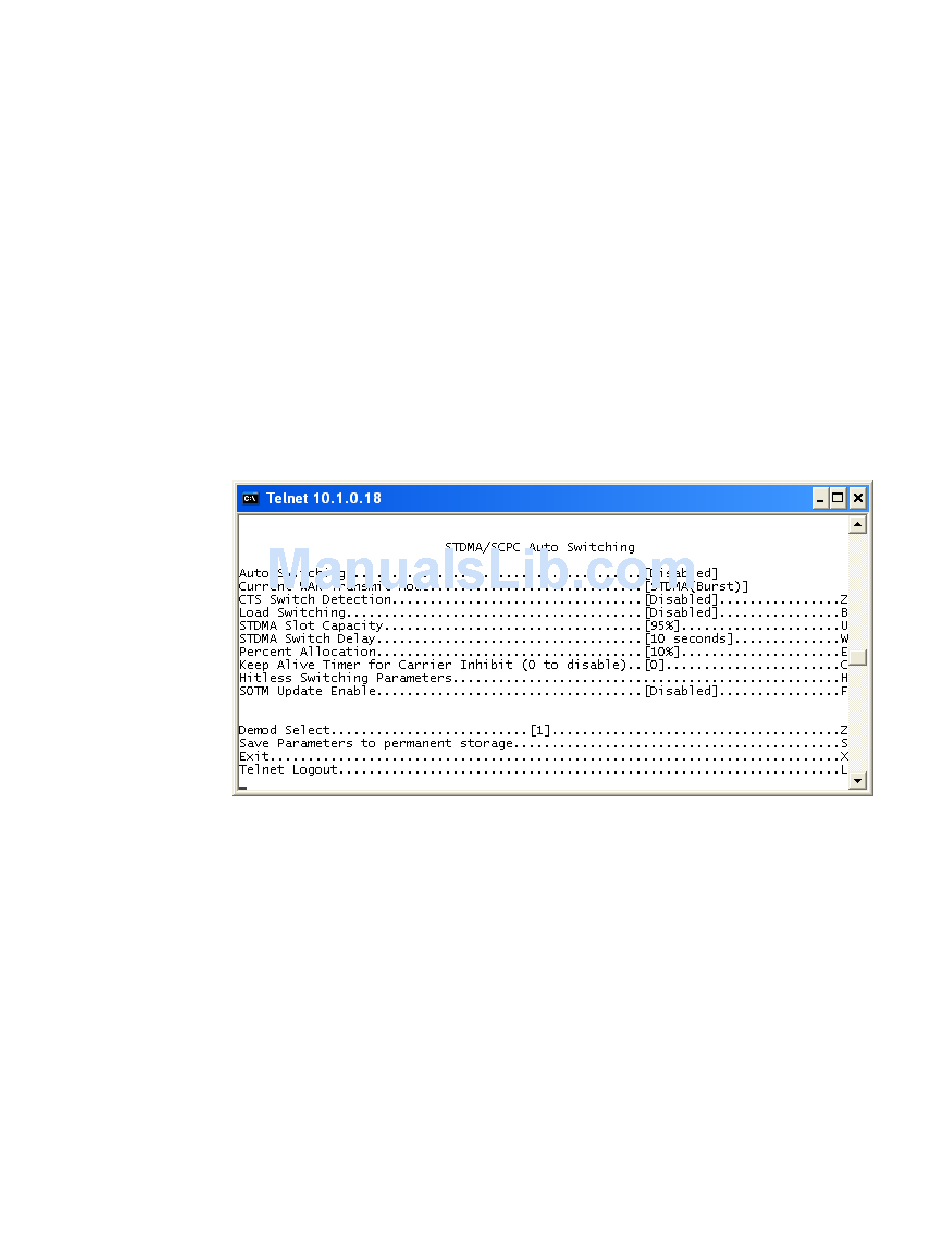

Figure 3-38
Automatic Switching screen
The following sections describe the menu items of the STDMA/SCPC Auto
Switching screen shown in figure 3-38.

Auto Switching

The Auto Switching item on the menu shown in figure 3-38 is for information
only and shows the current configuration of the Hub CDD-56X. This feature is
Enabled and Disabled as described in the section "Feature Configuration" on
page 3-5. Auto Switching must be Enabled in order to utilize any of the related
features/commands in this menu.
Note that Auto Switching must be Enabled on a Hub STDMA Controller that is
configured for Entry Channel mode.
