V i p e r s a t C o nf i g u r a t i o n
Note that this screen dialog example displays the frequency range for the CDM-
570L L-Band modem. For the CDM-570, the range displayed will be either 50
to 90 MHz or 100 to 180 MHz.

Receive Data Rate

Enter N at the command prompt to use the dialog shown in Figure 3-89 to set
the Receive Data Rate for the target CDM-570/570L's Home State.
Note that the valid range for this parameter will vary depending on the Modula-
tion Type, Coding Rate, and FAST feature Data Rate.

Receive FEC Type

Enter O at the command prompt to use the dialog shown in figure 3-90 to set the
Receive FEC Type for the target CDM-570/570L's Home State. Turbo must
be selected when operating in Vipersat mode.
3-66

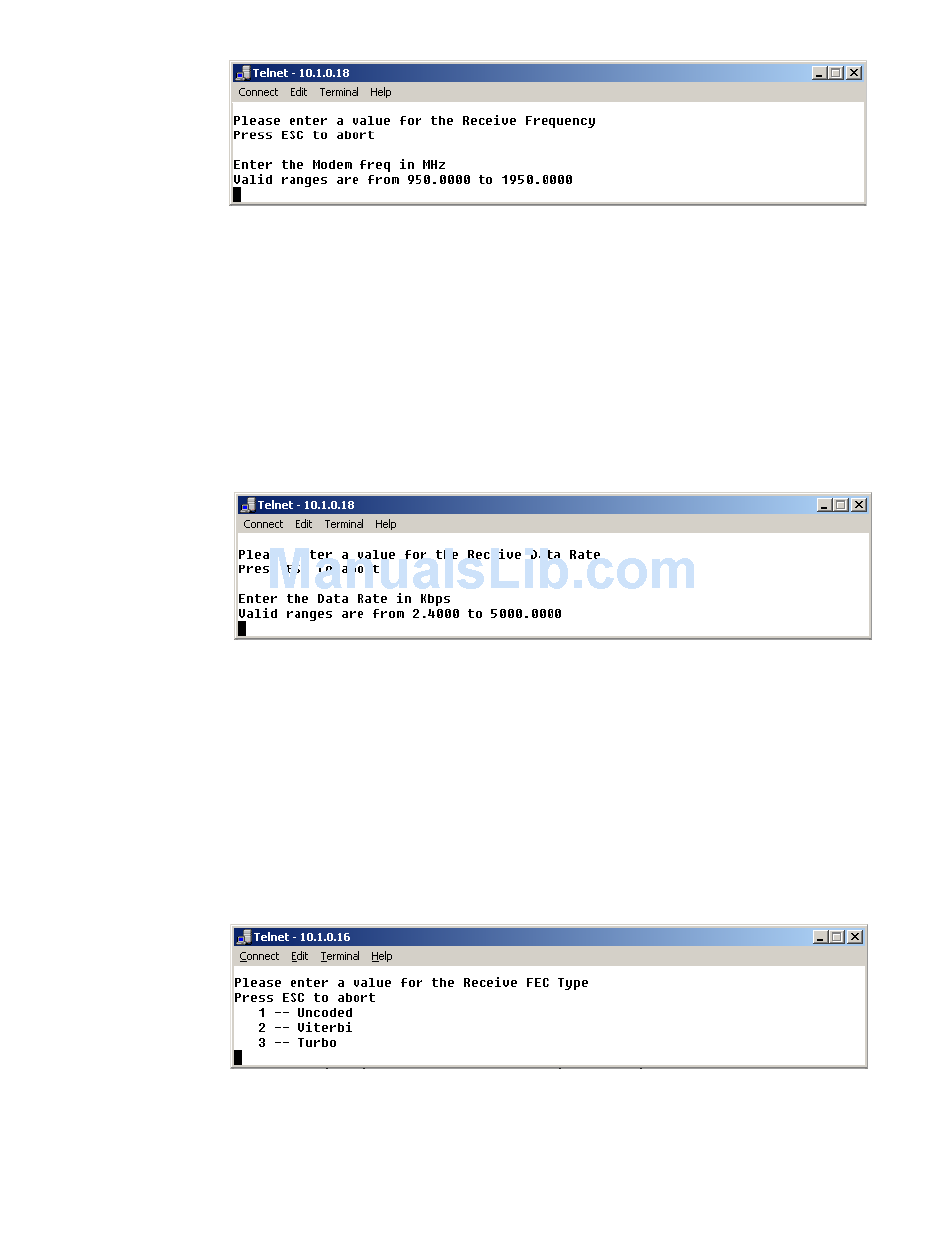

Figure 3-88
Receive Frequency prompt
Figure 3-89
Receive Data Rate prompt
Figure 3-90 Receive FEC Type prompt
