Base; Remote Count; Set Remote Policies; Figure 3-22 Base Remote Display Prompt - Comtech EF Data Vipersat 564L User Manual

• R = Removed – This Remote is currently removed from the burstmap.
• D = Disabled – This Remote is currently disabled and is not in the
• S = Switched – This Remote is currently switched into SCPC mode.
• H = Home State Revert – This Remote is not currently receiving burst
• CF – This Remote has not sent an acknowledgement to the burst controller

Base

Entering a B at the command prompt in figure 3-20 allows entering the Remote
number to start displaying remotes in this menu screen. Entering the number 1,
as shown in figure 3-20, displays nine remotes, 1 through 9. If the number 4 had
been entered, the display would show the nine remotes starting with Remote 4
(i.e., remotes 4 through 12).

Remote Count

The Remote Count menu item in figure 3-20 is an information-only display
showing the total number of Remotes that currently belong to the STDMA
group for this Hub burst controller.

Set Remote Policies

This menu item, which appears for GIR and Entry Channel Hub types, allows
each Remote to be configured for specific data switching conditions. Entering P
C h ap t e r U s i n g t h e C o m m a n d L in e I n t e r f a c e ( C L I )
3 -
When displayed, this status indicates that the Hub has removed this remote
from the burstmap due to a communications fault.
burstmap.
This status will be displayed when a remote is manually disabled by the
operator or administrator.
When displayed, this status indicates that the VMS has automatically
switched the remote out of the burstmap and into SCPC operation.
maps. When a remote, stuck in SCPC mode by failure to receive a VMS
revert command, sees the burst map with this flag set, it will automatically
revert to its home state and STDMA mode.
since it was enabled.

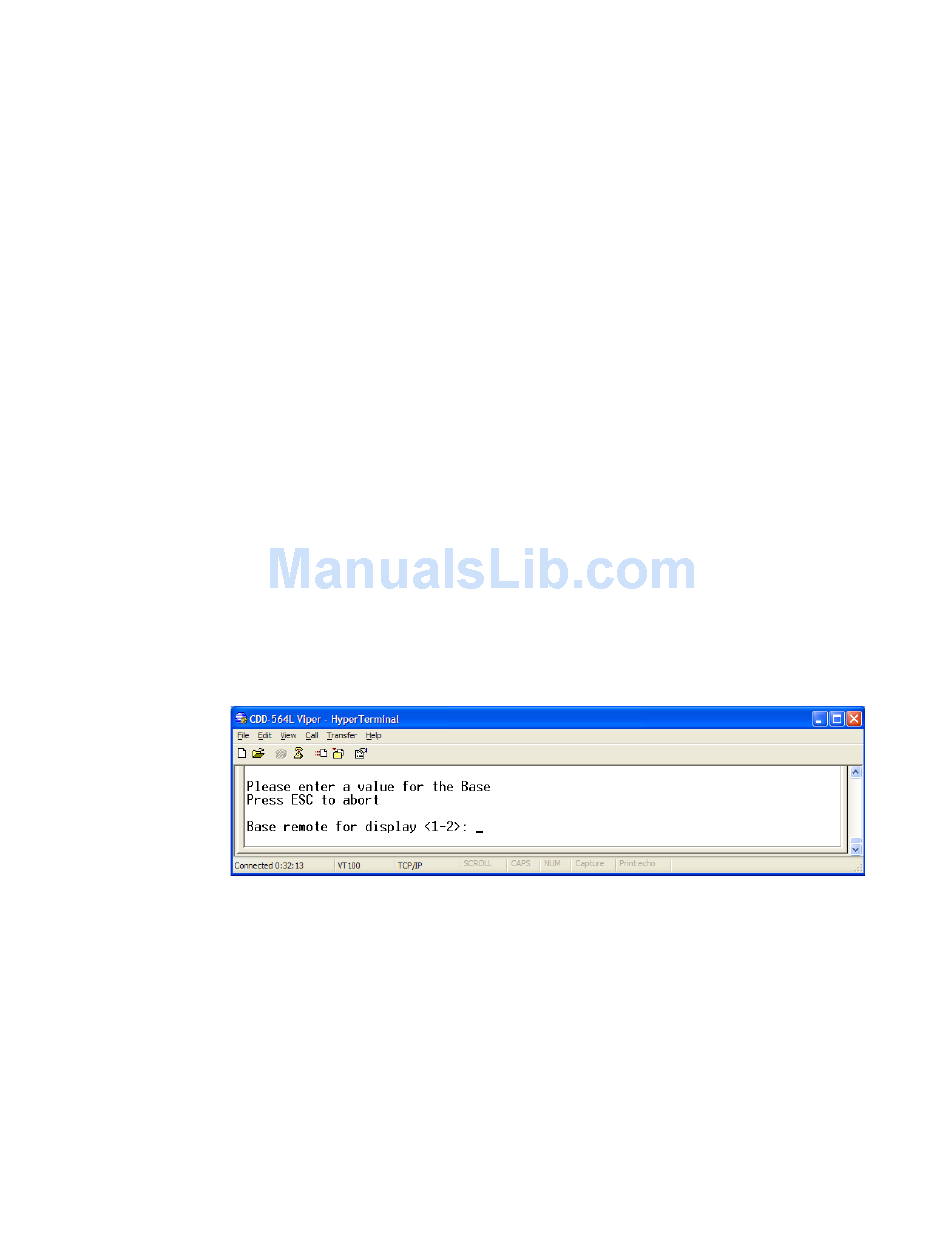

Figure 3-22
Base Remote Display prompt
V i p e r s a t C o n f i g u r a t io n
3-21
