Slot Data Length; Nominal Data Length; Figure 3-16 Slot Data Length Prompt - Comtech EF Data Vipersat 564L User Manual

Tip: Refer to the Viper Calculator for determining Slot Preamble Length values

Slot Data Length

This menu item, which appears for Fixed and Entry Channel Hub types,
displays the current Slot Data Length in milliseconds and bytes for the remotes
in the group, and represents the amount of data that can be transmitted or
received in one spin of the STDMA cycle by each of the remotes belonging to
that group. This is the amount of time that the remote is provided to send data in
the cycle.
To change this setting, enter B at the command prompt to display the dialog
shown in figure 3-16.

Nominal Data Length

This menu item, which appears for Dynamic Slot Hub type, displays the Nomi-
nal slot Data Length in milliseconds and bytes for the remotes in the group,
and represents the approximate amount of data that can be transmitted or
received in one spin of the STDMA cycle by each of the remotes belonging to
that group. This is the amount of time that the remote is provided to send data in
the cycle.
Entering a B at the command prompt brings up the dialog shown in figure 3-17
allowing changing the nominal data length, in milliseconds, for the target
CDD-56X.
C h ap t e r U s i n g t h e C o m m a n d L in e I n t e r f a c e ( C L I )
3 -
to enter at the command prompt. For a copy of the latest Viper Calculator,
contact a Comtech Vipersat Networks representative.

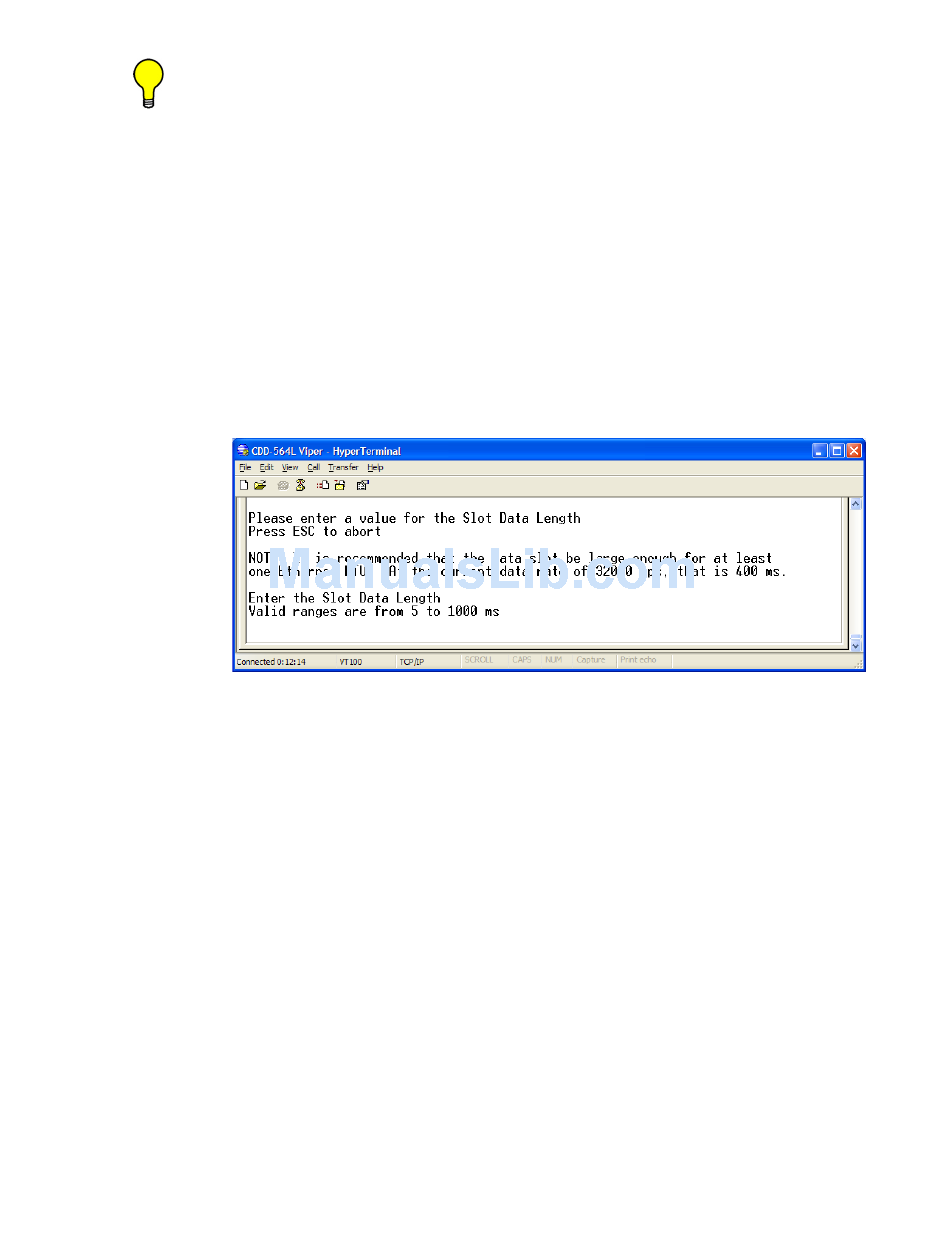

Figure 3-16
V i p e r s a t C o n f i g u r a t io n
Slot Data Length prompt
3-17
