V i p e r s a t C o n f i g u r a t io n

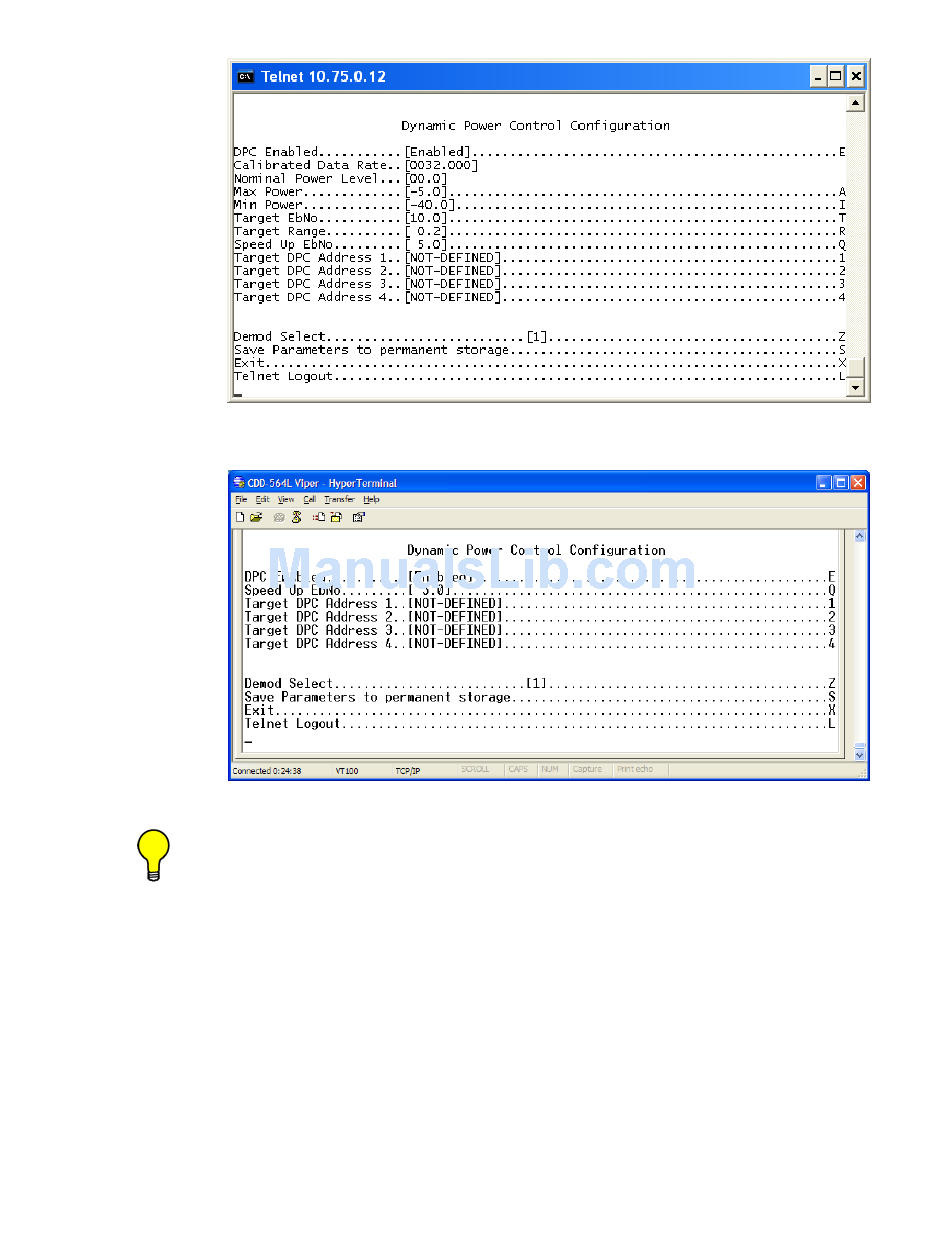

Figure 3-51
DPC Configuration screen (Hub, STDMA)
Figure 3-52
DPC Configuration screen (Hub/Remote, SCPC)
Tip: The DPC feature will not function unless the Outbound IP address is
defined in the STDMA screen for the Hub BC modem.

DPC Enabled

The DPC Enabled command (enter E) is a toggle that allows the Dynamic
Power Control feature to be either Enabled or Disabled. The CDD-56X is
shipped with the DPC Enabled menu item turned off (Disabled) to allow
entrance link levels calibration during terminal setup.
C h ap t e r U s i n g t h e C o m m a n d L in e I n t e r f a c e ( C L I )
3 - 3-41
