I P Ad d r e s s i n g
IP Address IP Address
Subnet Mask Subnet Mask
ANDing Result ANDing Result
A calculator, available from SolarWinds, performs these IP and subnet mask
calculations and can be found at:
http://www.solarwinds.com/products/freetools/index.aspx

Network Segments

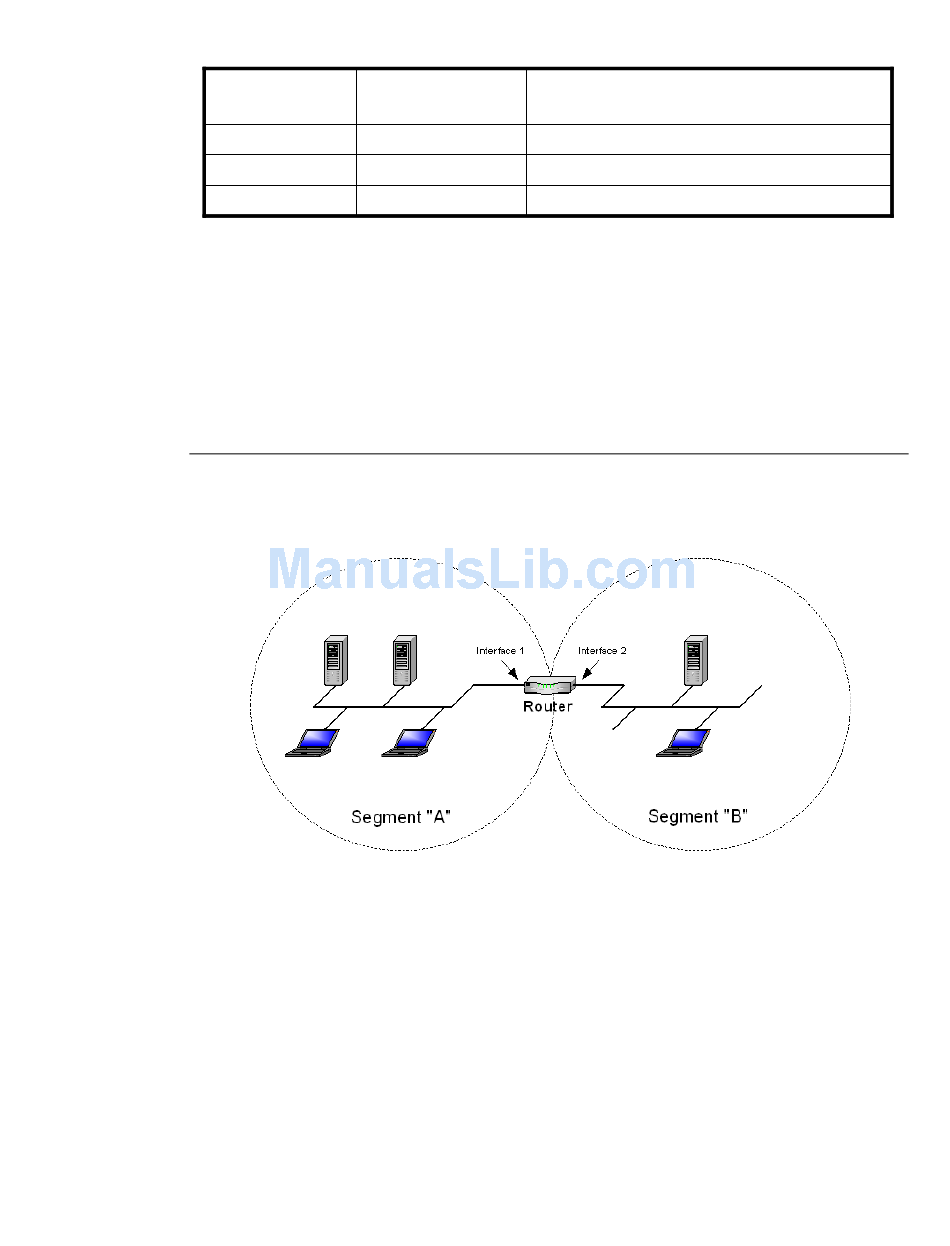

A "Network Segment" is a portion of a network that is bordered by two router
interfaces as shown in Figure A-8.
Each network segment must either be on a different network or a different
subnet. For example, if you have a single IP address available, you can change
the default mask from 255.255.255.0 to 255.255.255.192. The resulting calcula-
tion yields four subnets:
• 192.168.100.0
• 192.168.100.64
• 192.168.100.128
• 192.168.100.192
A-10
Dotted Decimal Dotted Decimal
Address Address
192.168.2.66 192.168.2.66
255.255.255.0 255.255.255.0
192.168.2.0 192.168.2.0
Figure A-7
ANDing an IP address and a subnet mask
Figure A-8
Binary Values Binary Values
11000000.10101000.00000010.01000010 11000000.10101000.00000010.01000010
11111111.11111111.11111111.00000000 11111111.11111111.11111111.00000000
11000000.10101000.00000010.00000000 11000000.10101000.00000010.00000000
Network Segments
