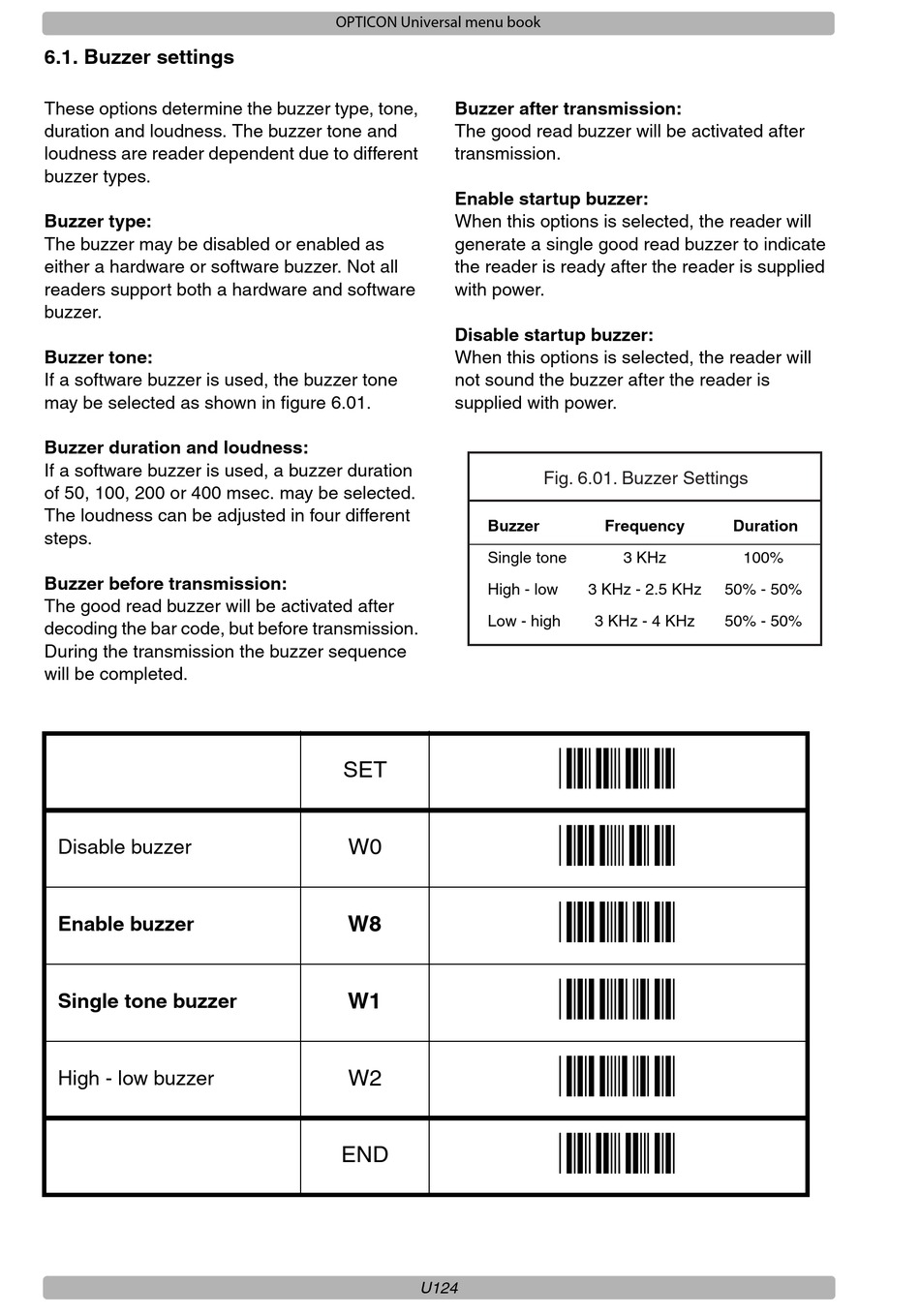

6.1. Buzzer settings

These options determine the buzzer type, tone,
duration and loudness. The buzzer tone and
loudness are reader dependent due to different
buzzer types.
Buzzer type:
The buzzer may be disabled or enabled as
either a hardware or software buzzer. Not all
readers support both a hardware and software
buzzer.
Buzzer tone:
If a software buzzer is used, the buzzer tone
may be selected as shown in figure 6.01.
Buzzer duration and loudness:
If a software buzzer is used, a buzzer duration
of 50, 100, 200 or 400 msec. may be selected.
The loudness can be adjusted in four different
steps.
Buzzer before transmission:
The good read buzzer will be activated after
decoding the bar code, but before transmission.
During the transmission the buzzer sequence
will be completed.
Disable buzzer
Enable buzzer
Single tone buzzer
High - low buzzer
OPTICON Universal menu book
Buzzer after transmission:
The good read buzzer will be activated after
transmission.
Enable startup buzzer:
When this options is selected, the reader will
generate a single good read buzzer to indicate
the reader is ready after the reader is supplied
with power.
Disable startup buzzer:
When this options is selected, the reader will
not sound the buzzer after the reader is
supplied with power.
Buzzer
Single tone
High - low
Low - high
SET
W0
W8
W1
W2
END
U124

Fig. 6.01. Buzzer Settings

Frequency
3 KHz
3 KHz - 2.5 KHz
3 KHz - 4 KHz
_ZZ_
_W0_
_W8_
_W1_
_W2_
_ZZ_
Duration
100%
50% - 50%
50% - 50%
