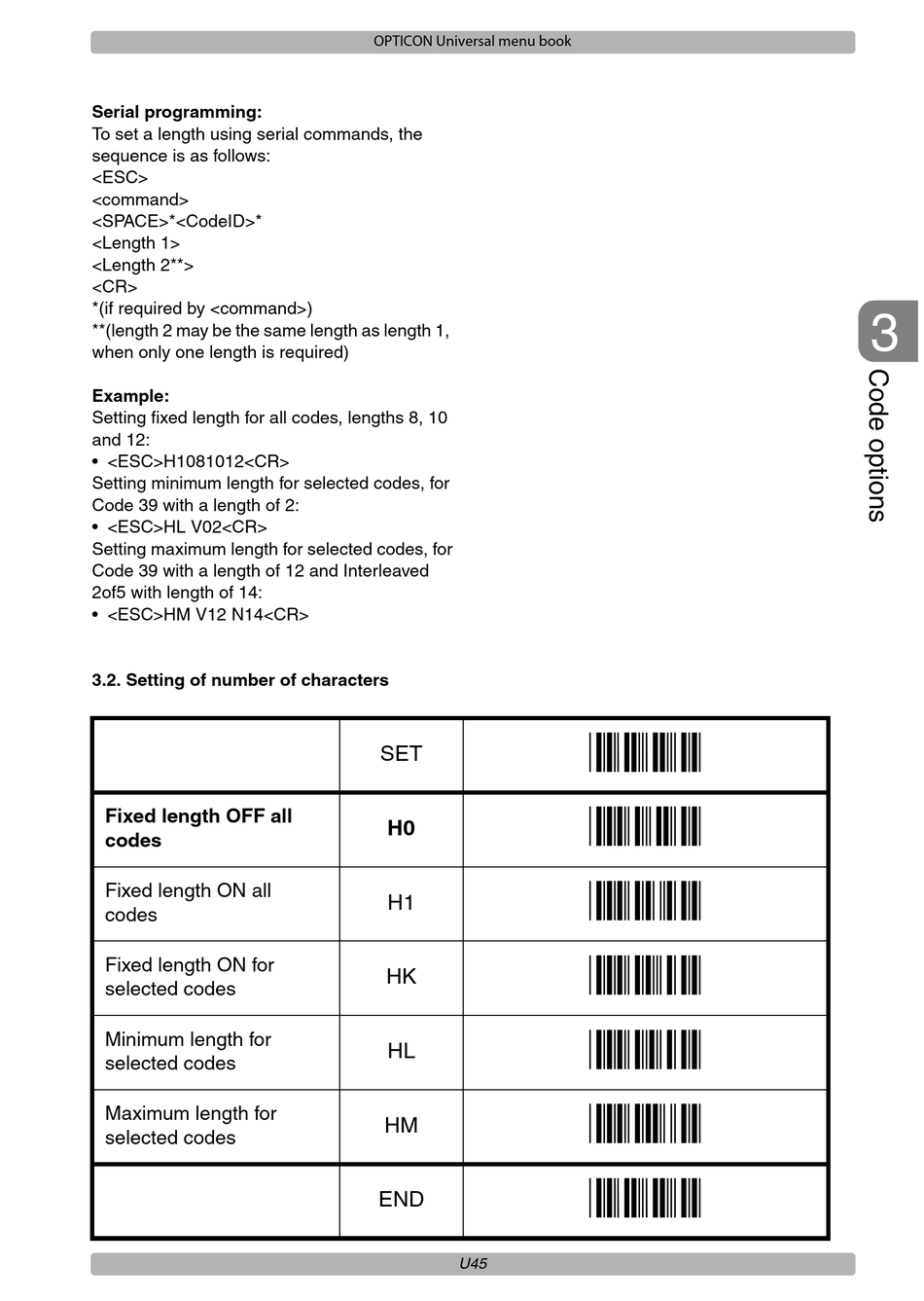

Opticon UNIVERSAL MENU BOOK Command Manual page 52

Serial programming:
To set a length using serial commands, the
sequence is as follows:
<ESC>
<command>
<SPACE>*<CodeID>*
<Length 1>
<Length 2**>
<CR>
*(if required by <command>)
**(length 2 may be the same length as length 1,
when only one length is required)
Example:
Setting fixed length for all codes, lengths 8, 10
and 12:
• <ESC>H1081012<CR>
Setting minimum length for selected codes, for
Code 39 with a length of 2:
• <ESC>HL V02<CR>
Setting maximum length for selected codes, for
Code 39 with a length of 12 and Interleaved
2of5 with length of 14:
• <ESC>HM V12 N14<CR>
3.2. Setting of number of characters
Fixed length OFF all
codes
Fixed length ON all
codes
Fixed length ON for
selected codes
Minimum length for
selected codes
Maximum length for
selected codes
OPTICON Universal menu book
SET
H0
H1
HK
HL
HM
END
U45
_ZZ_
_H0_
_H1_
_HK_
_HL_
_HM_
_ZZ_
