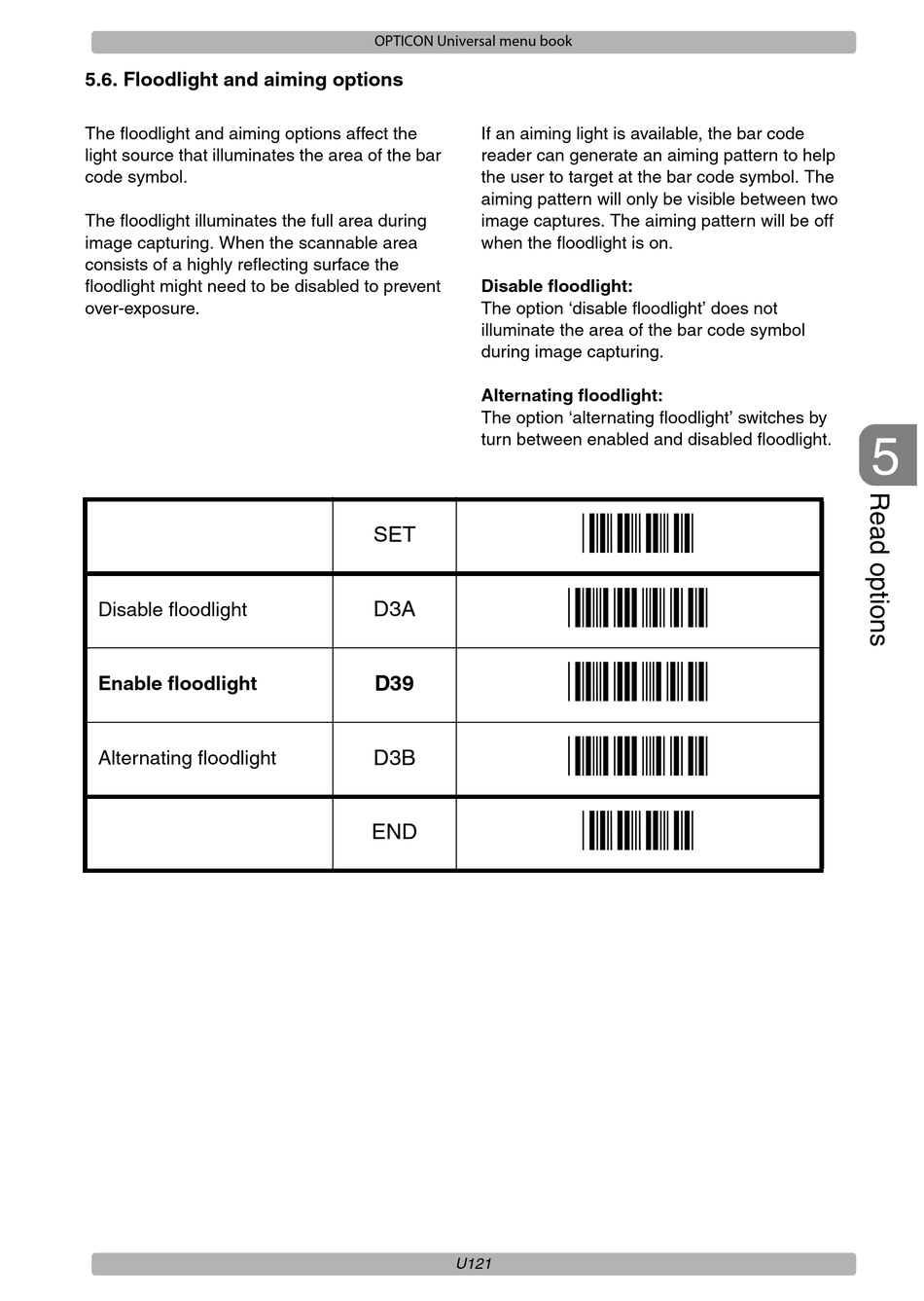

5.6. Floodlight and aiming options

The floodlight and aiming options affect the
light source that illuminates the area of the bar
code symbol.
The floodlight illuminates the full area during
image capturing. When the scannable area
consists of a highly reflecting surface the
floodlight might need to be disabled to prevent
over-exposure.
Disable floodlight
Enable floodlight
Alternating floodlight
OPTICON Universal menu book
If an aiming light is available, the bar code
reader can generate an aiming pattern to help
the user to target at the bar code symbol. The
aiming pattern will only be visible between two
image captures. The aiming pattern will be off
when the floodlight is on.
Disable floodlight:
The option 'disable floodlight' does not
illuminate the area of the bar code symbol
during image capturing.
Alternating floodlight:
The option 'alternating floodlight' switches by
turn between enabled and disabled floodlight.
SET
D3A
D39
D3B
END
U121
_ZZ_
_D3A_
_D39_
_D3B_
_ZZ_
5
