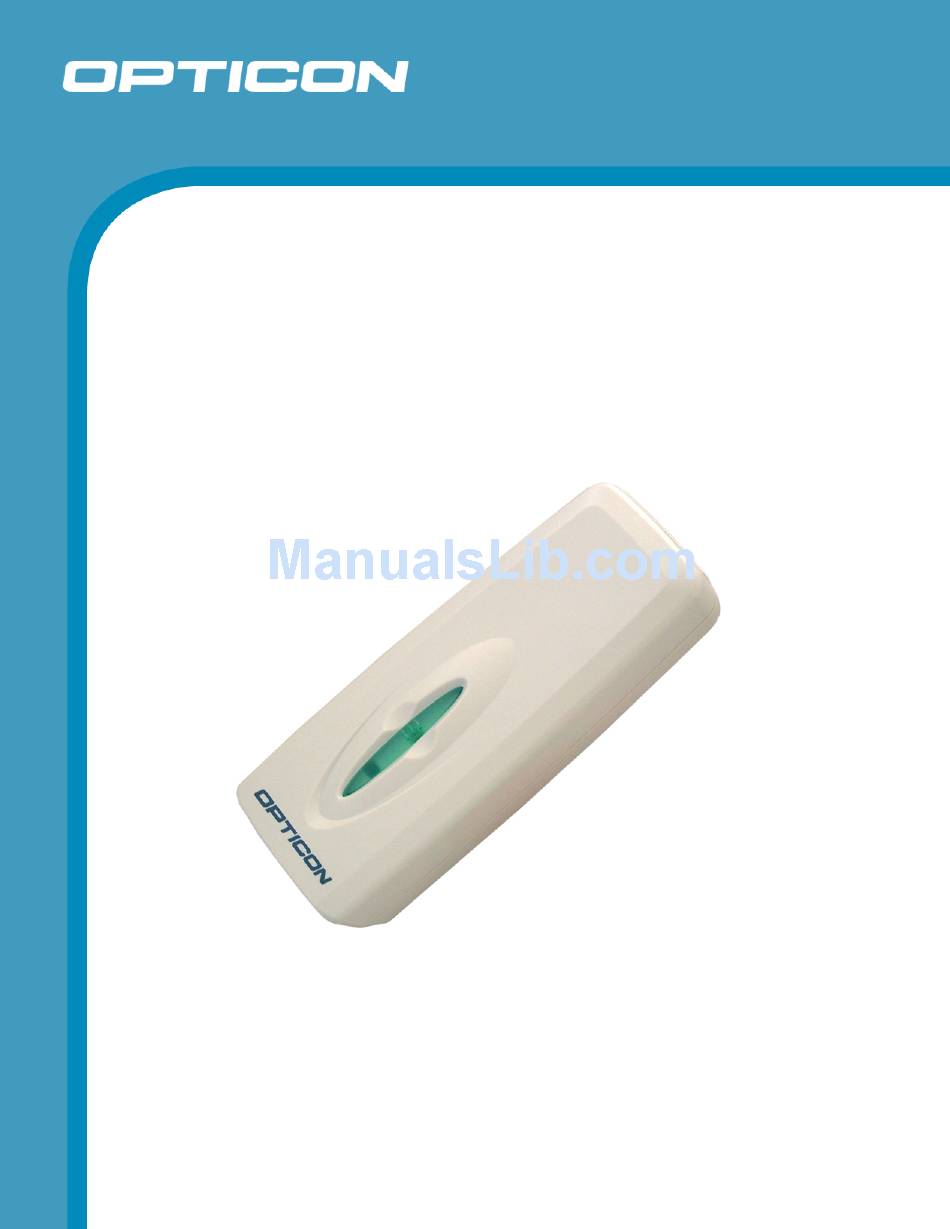

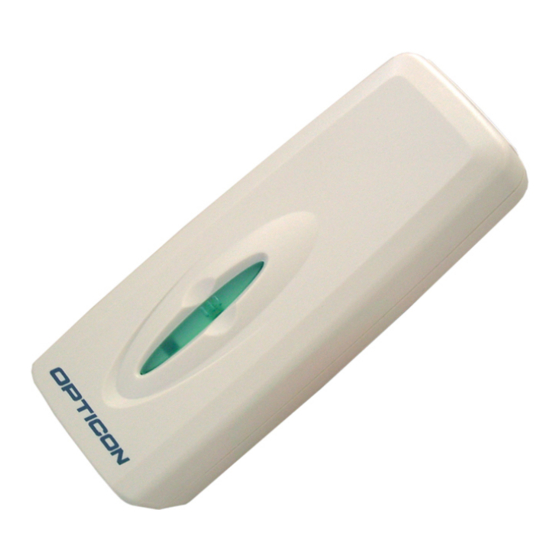

- Page 1 Wireless Barcode Scanner OPL 2724 The OPL 2724 scanner uses wireless Bluetooth 1.2 technology. Scanned data is transferred to the Specifications Manual designated device via wireless communication.
-
Page 2: Document History
Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages. -
Page 3: Table Of Contents
Opticon OPL 2724 Specifications Manual Contents 1. Abstract ............................6 2. Overview............................6 3. Physical Features ........................7 3.1. Dimensions ......................... 7 3.2. Weight ..........................7 3.3. Color............................ 7 4. Environmental Specifications ....................7 4.1. Operating Temperature and Humidity ................. 7 4.2. - Page 4 Opticon OPL 2724 Specifications Manual 9.1.1. Frequency Band........................18 10. Default Settings ........................19 10.1. Set Default Interface ......................19 10.2. Default Settings 1: Readable Codes ................. 19 10.3. Default Settings 2: Read Options, Trigger, Buzzer ............21 10.4. Default Settings 3: Communication Options ..............21 10.5.
- Page 5 Opticon OPL 2724 Specifications Manual Table of Figures Figure 1: Ambient light immunity ....................8 Figure 2: Laser scan tilt and curvature ..................11 Figure 3: Depth of field ....................... 13 Figure 4: Pitch ..........................14 Figure 5: Skew and dead zone....................15 Figure 6: Tilt angle ........................
-
Page 6: Abstract
If the OPL 2724 is disconnected because it is out of range or the Bluetooth device is not available, scanned data will be saved in the built-in scanner memory. The OPL 2724 uses two AAA alkaline batteries as its power supply. -
Page 7: Physical Features
Opticon OPL 2724 Specifications Manual 3. Physical Features 3.1. Dimensions W 96 x D 40 x H 22 mm 3.2. Weight 50 g max. (excluding the weight of the battery) 3.3. Color Off white 4. Environmental Specifications 4.1. Operating Temperature and Humidity Temperature: -5 to 50 °C... -
Page 8: Ambient Light Immunity
Opticon OPL 2724 Specifications Manual 4.3. Ambient Light Immunity Scanning performance is guaranteed when the range of illumination on a barcode surface is between zero and the following values: Incandescent Light to 3000 lx Fluorescent Light to 3000 lx Sunlight... -
Page 9: Controls
Opticon OPL 2724 Specifications Manual 5. Controls Item Specifications Notes 16-bit CISC CPU Clock frequency 14.74 MHz SRAM: 32 KB For WORK/DATA Flash ROM: 256 KB For BIOS/AP 6. Electrical Specifications 6.1. Absolute Maximum Ratings Parameter Symbol Value Unit Power supply voltage -0.3 to 3.6... -
Page 10: Operating Indicators
Opticon OPL 2724 Specifications Manual 6.5. Operating Indicators The OPL 2724 displays its operating state with LEDs and a buzzer. Action Indicator / Buzzer Description Start-up beep 6 short beeps (low, medium, high, Battery is placed in OPL 2724 (start-up buzzer) -
Page 11: Optical Specifications
Opticon OPL 2724 Specifications Manual 7. Optical Specifications Parameter Specification Unit Light source Red laser diode — Wavelength 650 ± 10 (at 25° C) JIS C 6802 Class 1 Light output ≤1.0 (JIS Class 2) Scanning method Bi-directional — Scanning rate 100 ±... -
Page 12: Technical Specifications
Opticon OPL 2724 Specifications Manual 8. Technical Specifications The conditions for technical specifications are as follows, unless otherwise specified in each section. Conditions Ambient temperature Room temperature (5 to 35º C) and humidity: Room humidity (45% to 85% RH) Ambient light:... -
Page 13: Scan Area And Resolution
Opticon OPL 2724 Specifications Manual 8.3. Scan Area and Resolution Depth of Field 8.3.1. The depth of field is measured from the edge of the scanner. The scanning range is within the circular arc centered on the scan origin. Figure 3: Depth of field... -
Page 14: Pitch, Skew, And Tilt
Opticon OPL 2724 Specifications Manual Conditions Barcode Sample: OPTOELECTRONICS Test Sample N/W ratio: 1:2.5 Angle: α = 0°, β = 15°, γ = 0° Curvature: R = ∞ Resolution Symbology Quiet Zone Digit 1.0 mm Code 39 25 mm 0.5 mm... -
Page 15: Skew Angle And Dead Zone
Opticon OPL 2724 Specifications Manual Skew Angle and Dead Zone 8.4.2. Skew angle: β = ±50° (Excluding dead zone) Dead zone: β = ±8° (There are some areas in which decoding fails due to specular reflection.) Figure 5: Skew and dead zone... -
Page 16: Tilt Angle
Opticon OPL 2724 Specifications Manual Tilt Angle 8.4.3. γ = ±20° Scanning performance is guaranteed when γ = ±20° in both CW and CCW directions. Figure 6: Tilt angle Conditions Barcode Sample: OPTOELECTRONICS Test Sample Distance: 96 mm from the optical window of the scanner... -
Page 17: Curvature
Opticon OPL 2724 Specifications Manual 8.5. Curvature With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥15 mm. With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥20 mm. Figure 7: Curvature Conditions Barcode Sample: OPTOELECTRONICS Test Sample PCS = 0.9, Resolution = 0.26 mm Depth of field: Within 96 mm from the optical window of the scanner 9. -
Page 18: Frequency Band
Opticon OPL 2724 Specifications Manual Feature Description Scanner operating mode while Master or Slave mode connected to the host system Security mode Authentication enabled: These settings can be configured using menu barcodes. Encryption Encryption is linked to the authentication setting and cannot be enabled or disabled separately. -
Page 19: Default Settings
Opticon OPL 2724 Specifications Manual 10. Default Settings 10.1. Set Default Interface Scan the following menu barcodes to return to the default settings. Bluetooth Functions Menu labels Menu codes _ZZ_ _UB_ Bluetooth _ZZ_ 10.2. Default Settings 1: Readable Codes Symbology... - Page 20 Opticon OPL 2724 Specifications Manual Symbology Read Transmit Transmit Calculate Other Code Prefix Suffix Length As a single component, only 1D+2D component is allowed GS1-128 — — — Disable (EAN/UCC-128) concatenation GS1 DataBar — — Transmit (RSS) (all, incl. Application CC-A/B);...
-
Page 21: Default Settings 2: Read Options, Trigger, Buzzer
Opticon OPL 2724 Specifications Manual 10.3. Default Settings 2: Read Options, Trigger, Buzzer Item Default Setting Setting the number of characters Fixed length OFF all codes. A minimum length, which varies per symbology, is required. Read mode Multiple read Multiple read reset time... -
Page 22: Serial Number And Labeling
Put the scanner in a protective foam bag and place it in an individual packing box. Size of the package after assembly: 245 (W) x 110 (D) x 38 (H) mm 12.2. Accessory Specifications Put the OPL 2724 into a protective bubble bag and put it into the individual packaging box. Accessories: •... -
Page 23: Durability
Opticon OPL 2724 Specifications Manual 13. Durability 13.1. Static Electricity Air discharge (No malfunction): ±10 kV max. Air discharge (No destruction): ±15 kV max. Indirect discharge (No malfunction): ±19 kV max. Conditions Measurement environment: Use electrostatic testing device compliant with IEC 61000-4-2 Built up and discharged 15 kV of static electricity on the scanner surface 50 times. -
Page 24: Reliability
Opticon OPL 2724 Specifications Manual 14. Reliability MTBF (mean time between failures) of the laser scan engine is 10,000 hours, when the product is not on all the time. Keystroke verification: the expected lifetime of the trigger key is 500,000 uses when the key is pressed with 2 kgf force. -
Page 25: R&Tte
Peeling off the certificate label 15.7. State of California: Perchlorate Best Management Practices The batteries on some Opticon products may contain Perchlorate. To comply with California Perchlorate Best Practice Regulations and the Law for the Promotion of Utilization of Recyclable Resources (Japan), products that may contain Perchlorate materials should be properly labeled on the exterior of all outer shipping packages and/or in locations that otherwise satisfy the California Perchlorate Best Management Practices. -
Page 26: Safety
Opticon OPL 2724 Specifications Manual 16. Safety Handle this product carefully. Do not deliberately subject it to any of the following. 16.1. Shock Do not throw or drop the scanner. Do not drop or put heavy items on this product or its cable. -
Page 27: Mechanical Drawing
Opticon OPL 2724 Specifications Manual 17. Mechanical Drawing Figure 9: Mechanical drawing...
