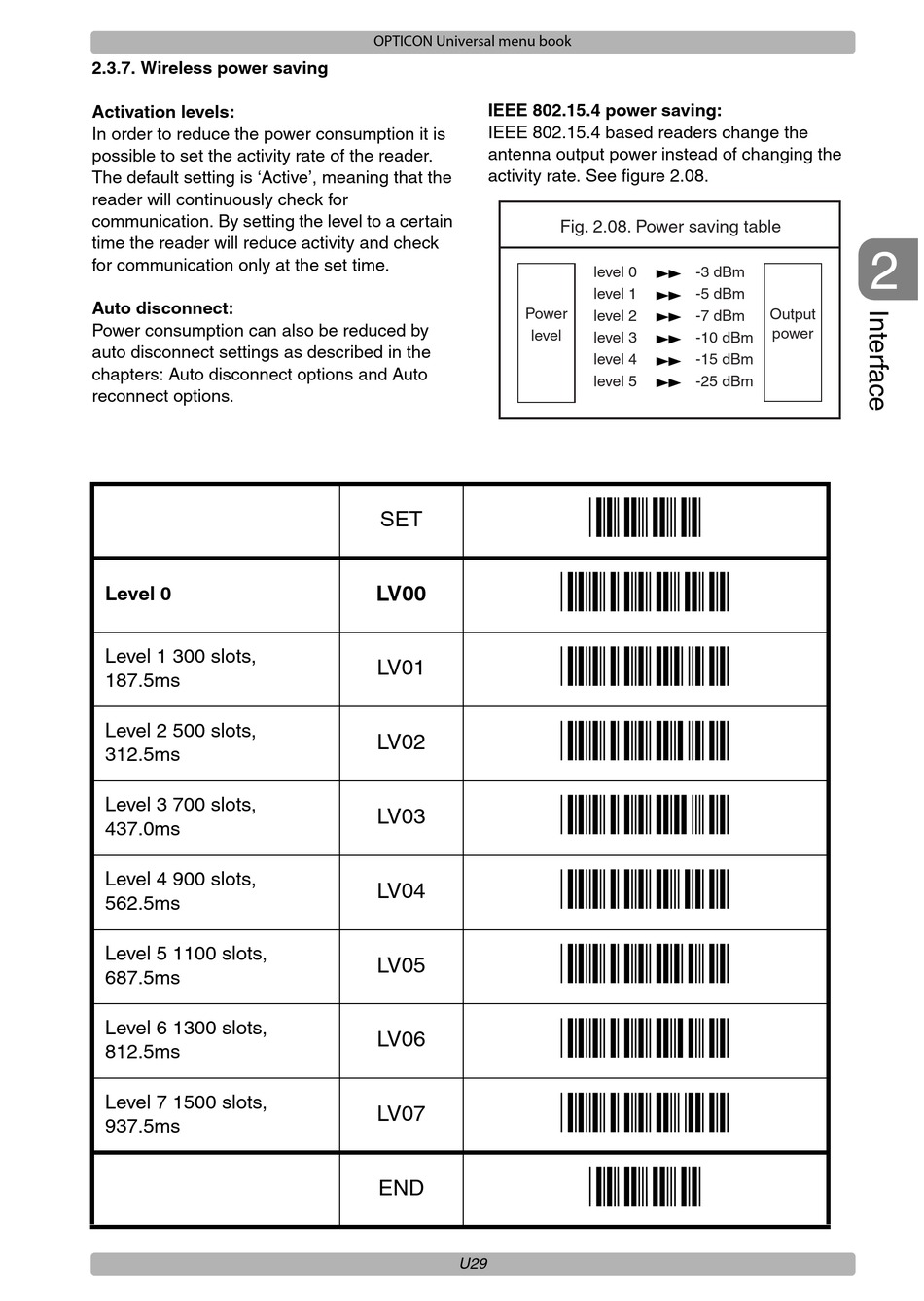

Wireless Power Saving; Fig. 2.08. Power Saving Table - Opticon UNIVERSAL MENU BOOK Command Manual

2.3.7. Wireless power saving

Activation levels:
In order to reduce the power consumption it is
possible to set the activity rate of the reader.
The default setting is 'Active', meaning that the
reader will continuously check for
communication. By setting the level to a certain
time the reader will reduce activity and check
for communication only at the set time.
Auto disconnect:
Power consumption can also be reduced by
auto disconnect settings as described in the
chapters: Auto disconnect options and Auto
reconnect options.
Level 0
Level 1 300 slots,
187.5ms
Level 2 500 slots,
312.5ms
Level 3 700 slots,
437.0ms
Level 4 900 slots,
562.5ms
Level 5 1100 slots,
687.5ms
Level 6 1300 slots,
812.5ms
Level 7 1500 slots,
937.5ms
OPTICON Universal menu book
IEEE 802.15.4 power saving:
IEEE 802.15.4 based readers change the
antenna output power instead of changing the
activity rate. See figure 2.08.
Power
level
SET
LV00
LV01
LV02
LV03
LV04
LV05
LV06
LV07
END
U29

Fig. 2.08. Power saving table

level 0 -3 dBm
level 1 -5 dBm
level 2 -7 dBm
level 3 -10 dBm
level 4 -15 dBm
level 5 -25 dBm
