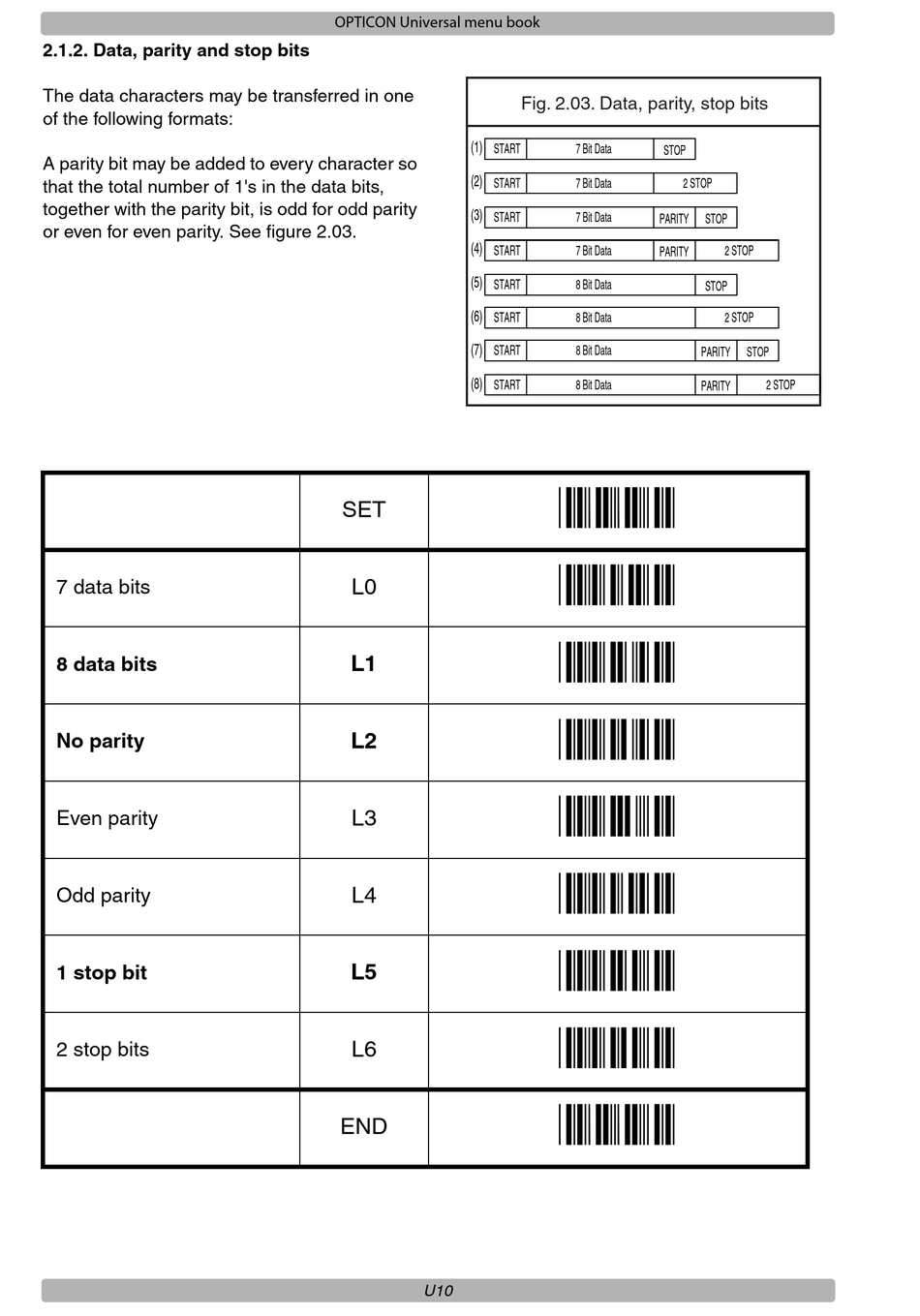

2.1.2. Data, parity and stop bits
The data characters may be transferred in one
of the following formats:
A parity bit may be added to every character so
that the total number of 1's in the data bits,
together with the parity bit, is odd for odd parity
or even for even parity. See figure 2.03.
7 data bits
8 data bits
No parity
Even parity
Odd parity
1 stop bit
2 stop bits
OPTICON Universal menu book
(1)
START
(2)
START
(3)
START
(4)
START
(5)
START
(6)
START
(7)
START
(8)
START
SET
L0
L1
L2
L3
L4
L5
L6
END
U10

Fig. 2.03. Data, parity, stop bits

7 Bit Data
STOP
7 Bit Data 2 STOP
7 Bit Data
PARITY
7 Bit Data
PARITY
8 Bit Data
8 Bit Data
8 Bit Data
8 Bit Data
_ZZ_
_L0_
_L1_
_L2_
_L3_
_L4_
_L5_
_L6_
_ZZ_
STOP
2 STOP
STOP
2 STOP
PARITY STOP
2 STOP
PARITY
