INTRODUCTION

This menu book is intended for setting up your
bar code reader to optimize its performance for
your particular application. When the required
options have been configured, they remain in
the reader, even after power down. The reader
can be returned to factory default by reading
the default label.
Menu labels
The reader must be set by reading the bar code
labels in the menu table. The layout of the table
is explained in next figure 0.01.

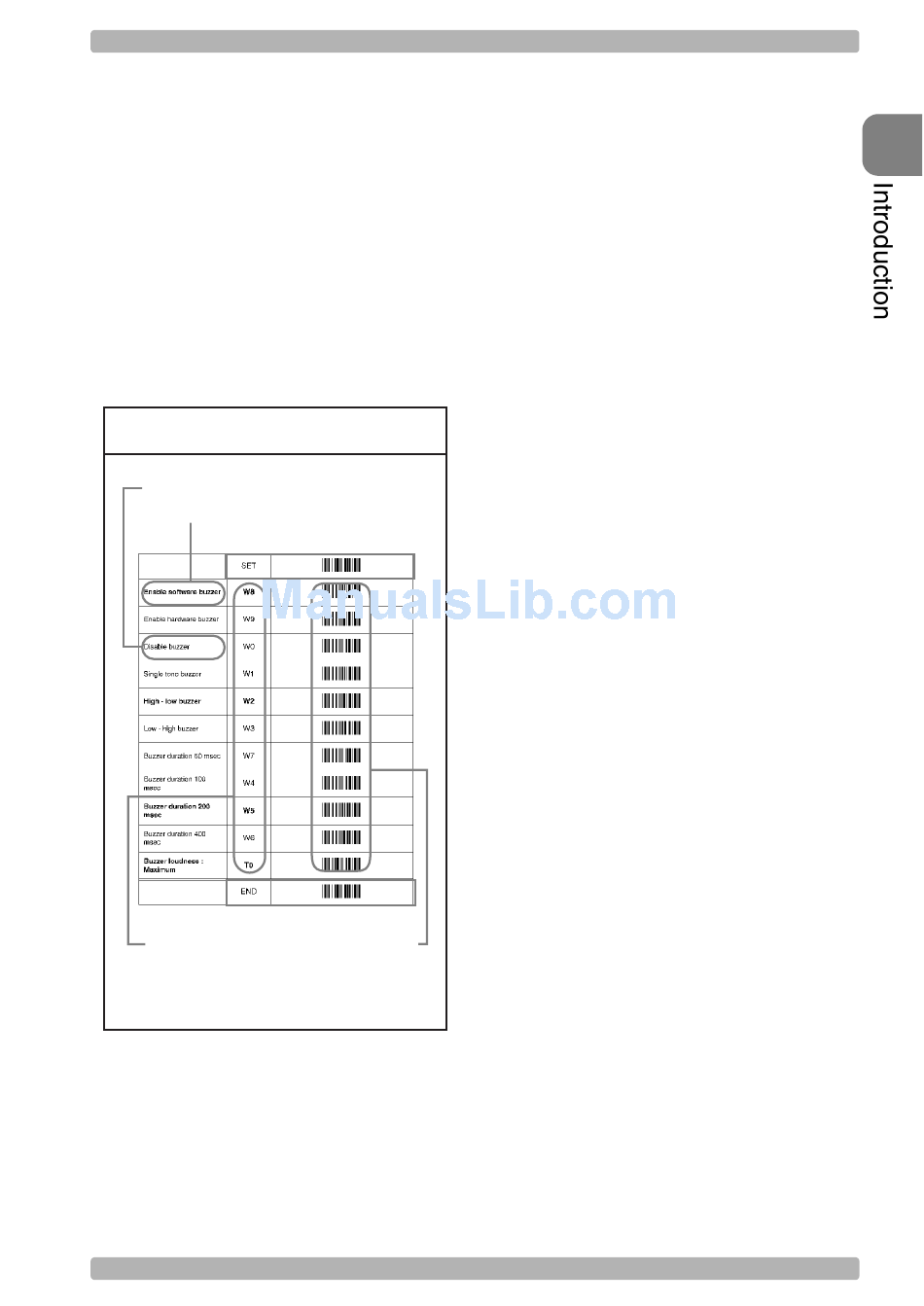

Fig. 0.01. Menu labels

optional setting
factory default setting
serial commands
Besides options, some chapters have
commands. The commands need to be
scanned directly, without reading the "SET" and
"END" labels. The commands are executed
directly and, unlike options, are not stored in
non volatile memory.
OPTICON Universal menu book
Enter mode
Save mode
configuration parameters
U1
0
