- Page 1 2D Imager Scanner OPI-3601 This manual provides specifications for the OPI-3601 Specifications Manual handheld 2D imager scanner.
-
Page 2: Document History
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT. Serial Number A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty. - Page 3 OPI-3601 Specifications Manual Revision History Specification No. : SS12016 Product name : OPI-3601 Edition Date Page Section Description of Changes First 2012/09/21 Initial release...
-
Page 4: Table Of Contents
OPI-3601 Specifications Manual Contents 1. Abstract ............................1 2. Overview ............................1 3. Basic Specifications ........................2 4. Detailed View ..........................5 5. Electrical Specifications ......................6 5.1. AC Adapter Specifications ....................6 5.1.1. Input Specifications ........................6 5.1.2. Output Specifications ........................ 6 5.2. Wedge PS/2 Power Supply (Host) ..................6 5.3. - Page 5 OPI-3601 Specifications Manual 8.3.1. How to Connect ........................19 8.3.2. Caution ............................ 19 8.3.3. Pin Assignment........................20 9. Cable and Connector ........................21 9.1. RS-232C ..........................21 9.2. USB............................21 9.3. Wedge PS/2........................22 9.3.1. Wedge PS/2 Straight Cable ....................22 9.3.2. Wedge PS/2 Branch Cable ..................... 22 10.
- Page 6 OPI-3601 Specifications Manual 16. Product Labels ..........................32 17. Packaging Specifications ......................33 17.1. Individual Packaging (RS-232C/Wedge PS/2)..............33 17.2. Collective Packaging (RS-232C/Wedge) ................34 17.3. Individual Packaging (USB) ....................35 17.4. Collective Packaging (USB) ....................36 18. Physical Features ........................37 18.1. Dimensions ........................37 18.2. Weight..........................37 18.3.
-
Page 7: Abstract
This manual provides specifications for the OPI-3601 handheld 2D imager scanner. 2. Overview The OPI-3601 is a handheld 2D imager scanner that enables high speed scanning of standard linear (1D) and 2D symbologies. Main features of the OPI-3601 are as follows: ・High-speed scanning... -
Page 8: Basic Specifications
OPI-3601 Specifications Manual 3. Basic Specifications Item Specification Note CPU: ARM-926EJ-S Core: 400 MHz SDRAM 256 Mbits (2 M × 4 Banks × 32 Bits ) SDCLK: 133 MHz Flash ROM 16 Mbits (1 M × 16 Bits) Flash Memory... - Page 9 OPI-3601 Specifications Manual Item Specification Note PDF417, MicroPDF417, Codablock F, QR Disable Code 128 Code , Micro QR Code, DataMatrix (ECC 0 - Symbologies when Codablock F is 140 / ECC 200), MaxiCode (Modes 2 to 5), enabled. Aztec Code, Chinese Sensible Code PDF417 : 0.169 mm...
- Page 10 OPI-3601 Specifications Manual Item Specification Note This scanner is an Exempt Risk Group LED product. Peak Wavelength: LED safety IEC 62471-1:2006 Exempt Risk Group 624 nm For residential, EMI/RFI VCCI / EN55022 / FCC Class-B commercial and light- industrial environments...
-
Page 11: Detailed View
OPI-3601 Specifications Manual 4. Detailed View Figure 1: Detailed View of OPI-3601 Name Description By pressing this key, the scanner starts taking an image from the scanning Trigger Key window and LED illumination is emitted to read 1D/2D codes. Scanning Window Light paths of the imager, LED illumination and LED aiming. Ensure that the lens is not exposed to dust and dirt before scanning. -
Page 12: Electrical Specifications
Specifications Manual 5. Electrical Specifications The OPI-3601 comprises ‘Camera Module Section’ with CMOS sensor, ‘Decoder Section’ for decoding 1D / 2D code data from a scanned image, ‘Communication Control Section’ to communicate with a host and ‘Power Supply Section’ for the main power supply conversion. -
Page 13: Optical Specifications
OPI-3601 Specifications Manual 6. Optical Specifications 6.1. Basic Optical Specifications Item Characteristics Scan method CMOS area sensor (white / black) Number of effective pixel (Column) × (Row) 752 × 480 dots Image capture speed (*1) Frame rate 60 fps Focal distance... -
Page 14: Aiming Pattern
OPI-3601 Specifications Manual 6.2. Aiming Pattern The aiming is used for the following purpose: 1. Fill light to recognize the appropriate reading range. 2. Fill light when auto trigger is used. The aiming specifications are as follows: - An optical axis of imaging field of view and the center of horizontal aiming width coincide at a distance of L=85±20 mm from the front edge of the scanner. -
Page 15: Technical Specifications
OPI-3601 Specifications Manual 7. Technical Specifications Aim the laser light at the center of a code to scan it. For long distance scanning, ambient light entering the angle of view may affect the scanning performance. The conditions for technical specifications are as follows, unless otherwise specified in each section. -
Page 16: Barcode Test Sample
OPI-3601 Specifications Manual 7.1. Barcode Test Sample 1D Bar Codes <Code 39> Resolution Symbology Size (mm) No. of Digits 0.127 mm (5 mil) 32 × 10 0.20 mm (7.9 mil) 100 × 10 Code 39 0.254 mm (10 mil) 32.5 × 12 0.508 mm (20 mil) -
Page 17: Scan Area And Depth Of Field
OPI-3601 Specifications Manual 7.2. Scan Area and Depth of Field The scan area is measured from the front edge of the scanner. 0.127(5mil) 0.254mm(10mil) [ Unit ： mm ] Code 39 0.508(20mil) 0.20(7.9mil) Code 128 0.33(1.3mil) UPC 100% 0.169(6.7mil) PDF417 0.254(10mil) -
Page 18: Printed Contrast Signal (Pcs)
OPI-3601 Specifications Manual 7.3. Printed Contrast Signal (PCS) 0.3 or higher <Conditions> : 32% and higher (70% or higher reflectivity of space and quiet zone) Distance : 105mm from the front edge of the scanner Bar Code Sample : UPC specified in Chapter 8. (Resolution: 0.33 mm, PCS: 0.3) MRD = Minimum reflectance of white bar - Maximum reflectance of black bar Reflectance of white bar－Reflectance of black bar... -
Page 19: Pitch, Skew And Tilt
OPI-3601 Specifications Manual 7.6. Pitch, Skew and Tilt Pitch : α = ±50° Skew : β = ±50° Tilt : γ = ±180° <Conditions> Bar Code Sample : 0.33 mm UPC specified in Chapter 7.1 Distance : 105 mm from the front edge of the scanner Curvature : R = ∞... -
Page 20: Auto Trigger
7.8. Auto Trigger A dedicated stand contains a magnet and when the OPI-3601 is placed into this stand, it can detect this magnet and enters auto trigger mode. The scanner starts scanning automatically when it detects a change in brightness that occurs when a bar code label is presented in front of it. -
Page 21: Auto Trigger Detection
OPI-3601 Specifications Manual Auto Trigger Detection 7.8.2. Trigger is enabled when inserting a gray-colored paper on a black backing paper. Trigger is also enabled when inserting a black-colored paper on a gray backing paper. <Conditions> Paper used : Black paper from Glory called as Black 010010016... -
Page 22: Interface Specifications
OPI-3601 Specifications Manual 8. Interface Specifications The OPI-3601 supports four types of interfaces; RS-232C, USB-HID, USB-COM and Wedge/PS2. 8.1. RS-232C Communication Setting 8.1.1. Baud rate : 300 ~ 115200 bps Data length : 7 / 8 bits Parity bits : No / Even / Odd parity... -
Page 23: Rs-232C Interface Circuit
OPI-3601 Specifications Manual RS-232C Interface Circuit 8.1.3. Scanner Host ICL3223 equivalents Jack which supports EIAJ RC5320A Figure 12: Interface Circuit Connector : D-Sub 9pin, female Power supply : EIAJ RC5320A (voltage classification 2) jack... -
Page 24: Usb
OPI-3601 Specifications Manual 8.2. The USB interface models have two specifications: HID (Human Interface Device Class) and COM (Communication Device Class). With USB-COM model, VCP (Virtual Communication Port) allows virtual serial communication and the commands can be transmitted from the host computer. -
Page 25: Wedge Ps/2
Wedge PS/2 How to Connect 8.3.1. ・Connect the branch cable (without label on, 6-pin Mini-DIN female) to the OPI-3601 Wedge PS/2 interface cable connector (6-pin Mini-DIN male). ・Connect the branch cable connector (6-Pin Mini-DIN male) to the host keyboard connector. -
Page 26: Pin Assignment
Pin No. Signal Name KEY DATA KEY CLK Pin No. Signal Name CPU DATA CPU CLK Wedge PS/2 Interface Cable for the OPI-3601 Pin No. Signal Name CPU DATA KEY DATA CPU CLK KEY CKL Figure 15: Pin Assignment (Wedge PS/2) -
Page 27: Cable And Connector
OPI-3601 Specifications Manual 9. Cable and Connector 9.1. RS-232C Weight: approx. 90 g Figure 16: Cable (RS-232C) 9.2. Weight: approx. 70 g Figure 17: Cable (USB) -
Page 28: Wedge Ps/2
OPI-3601 Specifications Manual 9.3. Wedge PS/2 Wedge PS/2 Straight Cable 9.3.1. Weight: approx. 75 g Figure 18: Cable (Wedge PS/2) Wedge PS/2 Branch Cable 9.3.2. Weight: approx. 25 g This cable is required when connecting both the scanner and the keyboard to the host. -
Page 29: Environmental Specifications
OPI-3601 Specifications Manual 10. Environmental Specifications 10.1. Temperature Scanning performance is guaranteed when the range of ambient temperature around the scanner is the following values: Operating Temperature : -20 ~ 50 °C Storage Temperature : -20 ~ 60 °C <Conditions>... -
Page 30: Ambient Light Immunity
: 5.0 V Figure 20: Ambient Light Immunity * Be sure that the direct light or specular reflection from the light source does not enter the light receiving section of the OPI-3601. 10.4. Dust and Drip Proof IEC IP42 equivalent Protection against solid objects: Level 4 Protected against solid objects greater than 1.0 mm... -
Page 31: Cable Strength
OPI-3601 Specifications Manual 10.5. Cable Strength There shall be no sign of malfunction after the following cable strength test. Cable Strength Test: Affix the scanner to an immovable object and pull it using a force of 24.5 N (2.5 kgf static loading) for 1 second. Repeat this 20 times continuously. -
Page 32: Drop Impact Strength (Without Packaging)
OPI-3601 Specifications Manual 10.9. Drop Impact Strength (without packaging) There shall be no sign of malfunction after the following drop test. Drop test: Drop the scanner three times (15 times in total), at each 5 face, from a height of 150cm onto a concrete floor as shown below. -
Page 33: Default Setting
OPI-3601 Specifications Manual 11. Default Setting 11.1. Default Setting Menu Code The OPI-3601 is set to default settings by reading the following menu label regardless of the interface types. Default @MENU_OPTO@ZZ@BAP@ZZ@OTPO_UNEM@ 11.2. Supported Symbologies 1D bar codes 11.2.1. Minimum Code type... -
Page 34: Gs1 Databar, Composite Code
OPI-3601 Specifications Manual GS1 Databar, Composite Code 11.2.2. Code type Default Remarks GS1 DataBar ・GS1 DataBar Omnidirectional ・GS1 DataBar Truncated ○ ・GS1 DataBar Stacked ・GS1 DataBar Stacked Omnidirectional GS1 conversion (setting required) GS1 DataBar Limited ○ GS1 DataBar Expanded ・GS1 DataBar Expanded ○... -
Page 35: Other Default
Buffered mode (default) @MENU_OPTO@ZZ@D80@ZZ@OTPO_UNEM@ @MENU_OPTO@ZZ@D81@ZZ@OTPO_UNEM@ [Stand detection] Enable stand detection Disable stand detection (default) @MENU_OPTO@ZZ@*4@ZZ@OTPO_UNEM@ @MENU_OPTO@ZZ@*5@ZZ@OTPO_UNEM@ * Refer to “OPI-3601 User’s Manual” for supported commands. 11.4. RS-232C Default Item Default Setting Baud rate 9600 bps Parity bits No parity Data length... -
Page 36: Usb-Com
OPI-3601 Specifications Manual 11.5. USB-COM OPTOELECTRONICS USB-COM driver needs to be downloaded. Item Description Baud rate USB2.0 Full Speed Power supply 500 mA Vender ID 065A Product ID A002 Microsoft Windows 2000 / XP/ Vista / 7 Supported OS (32/64 bit) -
Page 37: Regulatory Compliance
MTBF (Mean Time Between Failures) 47,480 hours Note: The reliability of the OPI-3601 is guaranteed as far as it is operated under normal operating conditions in the range of advised operating temperature and without excessive electrical or mechanical shock. 15. Precautions Handle this product carefully. -
Page 38: Product Labels
OPI-3601 Specifications Manual 16. Product Labels The product labels are affixed to the scanner as shown below. Figure 23: Product Labels Shows the product name, serial number, month and year of Grip label L manufacture, standards-compliant languages and logos. Grip label R Shows the standards-compliant languages and logos. -
Page 39: Packaging Specifications
OPI-3601 Specifications Manual 17. Packaging Specifications 17.1. Individual Packaging (RS-232C/Wedge PS/2) Put the scanner in a protection poly bag and place it in a box. Assembled package size: 260 × 115 × 103 (WDH mm) POLY BAG POLY BAG 5E0021 OPR32018008C0-00 *Put AC-Adaptor &... -
Page 40: Collective Packaging (Rs-232C/Wedge)
OPI-3601 Specifications Manual 17.2. Collective Packaging (RS-232C/Wedge) Assembled package size: 560 × 650 × 350 (WDH mm) Box OPR 3201 800 1C0 -00 Box：B88010-24 Rows Th e o rd er of s e ri al - No . Carton box ：OPR32018002C0-00 Carton Box：B88010-25... -
Page 41: Individual Packaging (Usb)
OPI-3601 Specifications Manual 17.3. Individual Packaging (USB) Put the scanner in a protection poly bag and place it in a box. Assembled package size: 245 × 112 × 85 (WDH mm) PROTECTION BAG E B85009-09 Color-Tie(Black):5H0001 USER'S MANUAL 5J0062A BOX：B05053-8001 【原産国表示】～country of origin～... -
Page 42: Collective Packaging (Usb)
OPI-3601 Specifications Manual 17.4. Collective Packaging (USB) Assembled package size: 540 × 600 × 470 (WDH mm) 個 装箱 列 S/Nの 順 序 The order of serial B05053-8001 ① １ ～ ５ ② ６ ～ １ ０ ③ １ １ ～ １ ５... -
Page 43: Physical Features
OPI-3601 Specifications Manual 18. Physical Features 18.1. Dimensions Approx. 56.0 × 108.1 × 148.6 (WDH mm) 18.2. Weight Approx. 85 g (excluding the cable) 18.3. Mechanical Drawing Figure 30: Mechanical Drawing... -
Page 44: Accessories
Specifications Manual 19. Accessories 19.1. AC Adapter Specifications The OPI-3601 with RS-232C serial interface is shipped with a dedicated AC adapter “Universal AC Adapter Kit.” Plug connectors can be changed for each region. Refer to 19.2 for the detailed view. -
Page 45: Std-3601 Stand (Sold Separately)

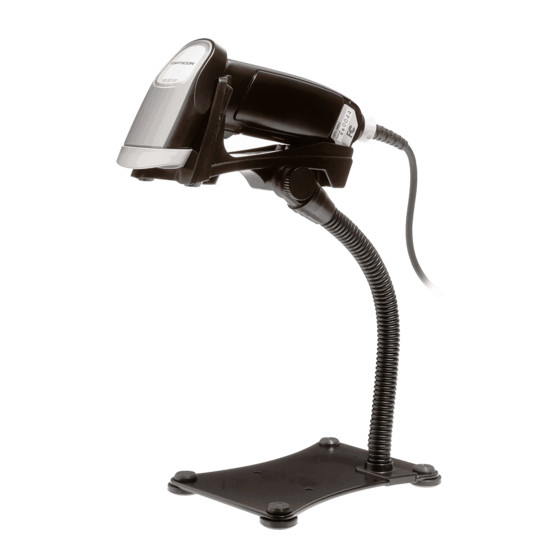

OPI-3601 Specifications Manual 20. STD-3601 Stand (Sold Separately) 20.1. Stand Mechanical Drawing Figure 33: Stand...
