Opticon OPR 3201 Specification Manual

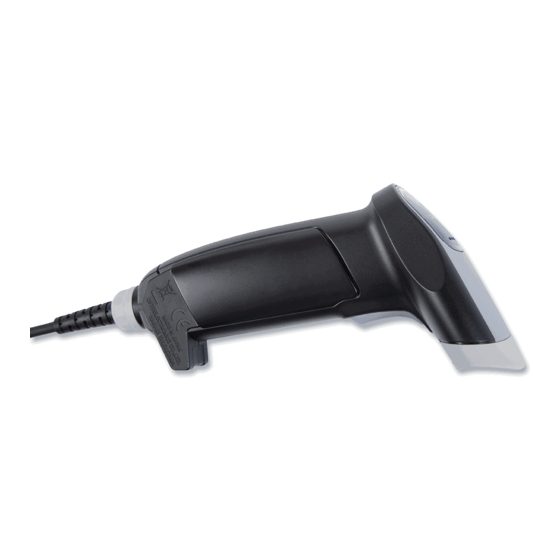

Gun-type laser barcode scanner opr 3201
Hide thumbs Also See for OPR 3201:
Table of Contents

Advertisement

Quick Links

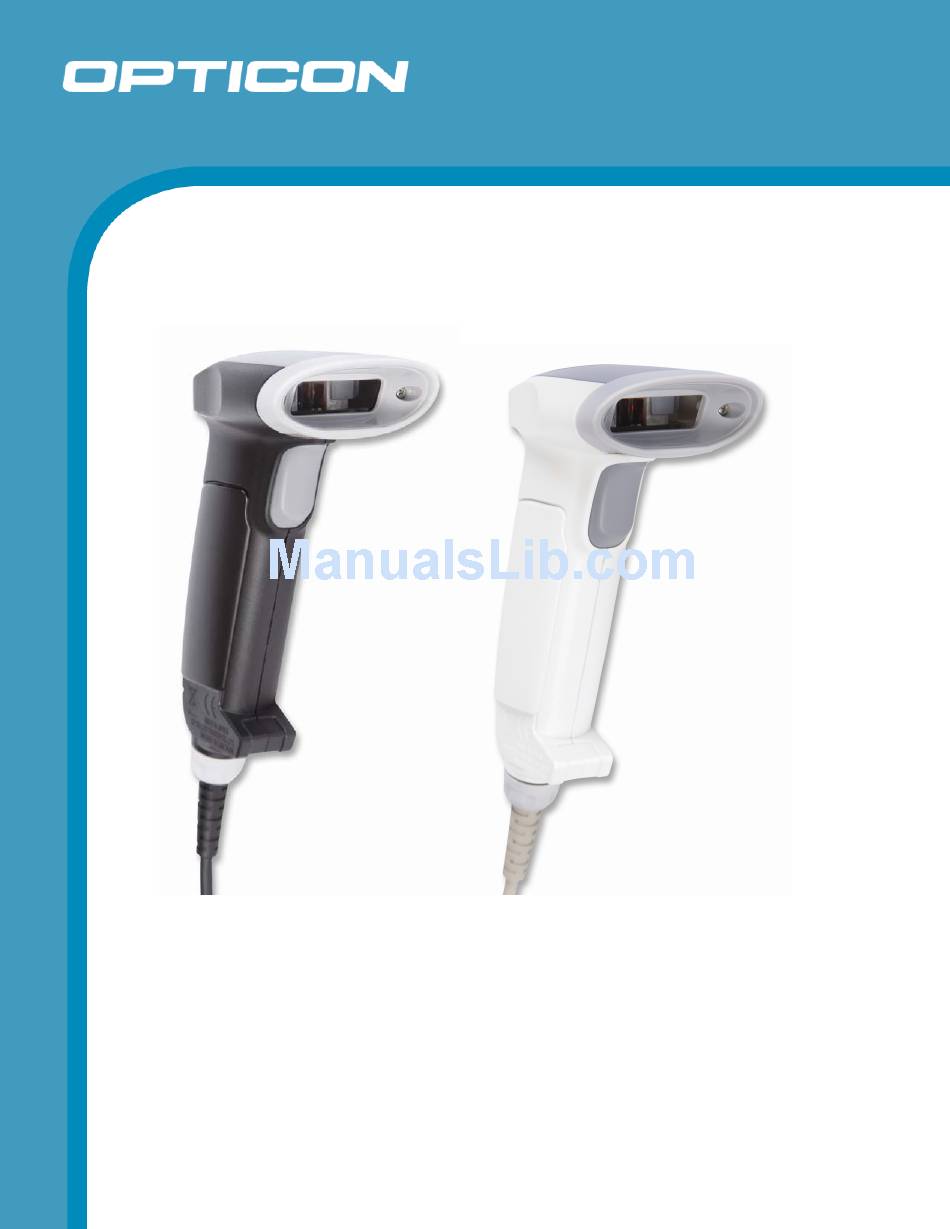

Gun-type Laser Barcode Scanner
OPR 3201
The OPR 3201 is a gun-Type laser barcode scanner
that uses a short-wavelength red laser beam to
enhance the visibility of scanning lines. The decoded
text of barcode images is output through an
Specifications Manual
RS-232C, USB, or Wedge interface.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPR 3201 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Opticon OPR 3201

Summary of Contents for Opticon OPR 3201

  • Page 1 Gun-type Laser Barcode Scanner OPR 3201 The OPR 3201 is a gun-Type laser barcode scanner that uses a short-wavelength red laser beam to enhance the visibility of scanning lines. The decoded text of barcode images is output through an Specifications Manual...

  • Page 2: Document History

    Opticon assumes no liability for any direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and software, even if Opticon has been informed about the possibility of such damages.

  • Page 3: Table Of Contents

    Opticon OPR 3201 Specifications Manual Contents 1. Abstract ............................7 2. Overview............................7 3. Physical Features ........................8 3.1. Dimensions ......................... 8 3.2. Weight ..........................8 4. Environmental Specifications ....................8 4.1. Operating Temperature and Humidity ................. 8 4.2. Charging Temperature ......................8 4.3.
  • Page 4 Opticon OPR 3201 Specifications Manual 9.1.3. Interface Circuit........................19 9.1.4. Character Format........................19 9.1.5. Communication Format......................19 9.1.6. Handshaking ..........................20 9.2. USB-HID and USB-VCP Interface Specifications ............. 25 9.2.1. Settings ............................25 9.2.2. Interface Circuit........................25 9.3. Wedge Interface Specification ..................25 9.3.1. Settings ............................25 10.
  • Page 5 19. Mechanical Drawing ......................... 45 Table of Figures Figure 1: Ambient light immunity....................9 Figure 2: OPR 3201 configuration ....................10 Figure 3: AC adapter 1 ....................... 12 Figure 4: AC adapter 2 ....................... 12 Figure 5: Laser scan tilt and curvature ..................13 Figure 6: Depth of field .......................
  • Page 6 Opticon OPR 3201 Specifications Manual Figure 11: Communication format....................19 Figure 12: No handshaking ......................20 Figure 13: Busy/Ready communication ..................20 Figure 14: Cannot receive command ..................21 Figure 15: Signal timing......................21 Figure 16: Modem transmit data....................22 Figure 17: ACK/NAK........................

  • Page 7: Abstract

    OPR 3201 Specifications Manual 1. Abstract This manual provides specifications for the OPR 3201 Gun-type Laser Barcode Scanner. 2. Overview The use of a short-wavelength red laser beam enhances the visibility of scanning lines. The decoded text of barcode images is output through an RS-232C, USB, or Wedge interface, depending on the specification.

  • Page 8: Physical Features

    Opticon OPR 3201 Specifications Manual 3. Physical Features 3.1. Dimensions W 56.0 x D 108.1 x H 148.6 mm 3.2. Weight 78.0 g ±5 g (max.), excluding the cable 4. Environmental Specifications 4.1. Operating Temperature and Humidity Temperature: -5 to 50° C Humidity: 5 to 95% 4.2.

  • Page 9: Figure 1: Ambient Light Immunity

    Opticon OPR 3201 Specifications Manual Figure 1: Ambient light immunity Conditions Barcode Sample: OPTOELECTRONICS Test Sample PCS: Resolution: 0.25 mm Symbology: 9-digit Code 39 Quiet zone: 10 mm N/W ratio: 1:2.5 Distance: 70 mm Angle (see note below): Α = 0° β = 15° γ = 0°...

  • Page 10: Controls

    6. Electrical Specifications 6.1. Configuration The OPR 3201 consists of a laser module (which includes a scan mirror, a coil, and a photo diode), a decode and communication section (which decodes scanned data and carries out signal processing), a 3.3 V power supply, an interface (which outputs decoded data), a buzzer, LEDs, and a trigger key.

  • Page 11: Electrical Characteristics

    The current value depends on the interface type and host computer to which the device is connected. 6.3. AC Adapter The OPR 3201 with RS-232C serial interface is shipped with a dedicated AC adapter “Universal AC Adapter Kit.” Plug connectors can be changed for each region. See diagrams below.

  • Page 12: Ac Input

    Opticon OPR 3201 Specifications Manual AC Input 6.3.1. Dimensions: 47.5 (W) × 28.0 (D) × 75.0 (H) mm (except protruding portion) Figure 3: AC adapter 1 DC Output 6.3.2. Figure 4: AC adapter 2 7. Optical Specifications 7.1. Laser Scan Specifications...

  • Page 13: Tilt Of Laser Scan Line

    Opticon OPR 3201 Specifications Manual Refer to chapter 8, “Technical Specifications,” to read about scanning performance. Tilt of Laser Scan Line 7.1.1. Laser scanning tilt is the vertical difference between both ends of a laser scan line. Measure it in the middle of the laser scan line.

  • Page 14: Technical Specifications

    Opticon OPR 3201 Specifications Manual 8. Technical Specifications The conditions for technical specifications are as follows, unless otherwise specified in each section. Conditions Ambient temperature Room temperature (5 to 35º C) and humidity: Room humidity (45% to 85% RH) Ambient light:...

  • Page 15: Scan Area And Resolution

    Opticon OPR 3201 Specifications Manual 8.3. Scan Area and Resolution Depth of Field 8.3.1. The depth of field is measured from the edge of the scanner. The scanning range is within the circular arc centered on the scan origin. Figure 6: Depth of field...

  • Page 16: Pitch, Skew, And Tilt

    Opticon OPR 3201 Specifications Manual Resolution Symbology Quiet Zone Digit 1.0 mm Code 39 25 mm 0.5 mm Code 39 18 mm 0.25 mm Code 39 10 mm 0.15 mm Code 39 7 mm 0.127 mm Code 39 5 mm 8.4.

  • Page 17: Curvature

    Opticon OPR 3201 Specifications Manual Conditions Barcode Sample: OPTOELECTRONICS Test Sample 70 mm from the edge of the scanner Distance Label Pitch, Skew Angle, Dead Zone PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code 39, Quiet Zone = 10 mm, N/W Ratio = 1:2.5 Tilt Angle PCS = 0.9, Resolution = 0.26 mm, Symbology = 13-digit JAN, Quiet Zone = 10 mm...

  • Page 18: Interface Specifications

    Opticon OPR 3201 Specifications Manual 9. Interface Specifications 9.1. RS-232C Interface Spec 9600 bps to 115.2 kbps Settings and Communication 9.1.1. Reading the menu barcodes in section 11.1 can set the RS-232C interface default. Parameter [U2] setting Baud rate 9600 bps...

  • Page 19: Interface Circuit

    Opticon OPR 3201 Specifications Manual Interface Circuit 9.1.3. Figure 9: Interface circuit Character Format 9.1.4. Figure 10:Character format (same for both sending and receiving) Communication Format 9.1.5. Figure 11: Communication format...

  • Page 20: Handshaking

    Opticon OPR 3201 Specifications Manual Handshaking 9.1.6. Select handshaking options using the menu or command listed below. Handshaking Menu/Command No handshake BUSY/READY MODEM ACK/NAK ACK/NAK NO RESPONSE ON/OFF a) No Handshaking The scanner attempts the communication regardless of the state of the host computer.

  • Page 21: Figure 14: Cannot Receive Command

    Opticon OPR 3201 Specifications Manual within a specified period. The Flow Control time-outs are as follows, and the default setting is “indefinitely“ (I0). Flow Control Time Out Menu/Command Indefinitely 100 ms 200 ms 400 ms Figure 14: Cannot receive command...

  • Page 22: Figure 16: Modem Transmit Data

    XON/XOFF CONTROL During data transmission While this configuration is enabled, the OPR 3201 keeps on sending data until it receives a control code XOFF (ASCII DC3, Hex13). It stops the data transmission once it receives the control code XOFF (ASCII DC3, Hex13). It re-starts sending the data when it receives a control code XON (ASCII DC1, Hex11).

  • Page 23: Figure 17: Ack/Nak

    Opticon OPR 3201 Specifications Manual e) ACK/NAK After data has been transmitted, the scanner expects to receive one of the following responses from the host: ACK response—Action: The scanner completes transmission with the good- read buzzer and returns to the initial state.

  • Page 24: Figure 18: Ack/Nak-No Response

    Opticon OPR 3201 Specifications Manual f) ACK/NAK NO RESPONSE When no response from the host is received within the setting time, the scanner assumes an ACK response, and returns to the initial state without the error buzzer. The other actions are the same as ACK/NAK.

  • Page 25: Usb-Hid And Usb-Vcp Interface Specifications

    Opticon OPR 3201 Specifications Manual 9.2. USB-HID and USB-VCP Interface Specifications Settings 9.2.1. Reading the menu barcodes in section 11.1 can set the USB interface default. The interface is full-speed USB, 12 Mbps (HID/VCP) and low-power bus-powered. For USB-VCP support, a driver must be installed on the host.

  • Page 26: Cable And Connector

    Opticon OPR 3201 Specifications Manual 10. Cable and Connector 10.1. RS-232C Cable (Standard specification) Figure 20: RS-232C cable Straight Type: Φ4.8 ±0.5 mm Diameter: 1500 +50 -0 mm Length: 6 insulated wires, 1 conductive wire Cores: Approximately 40 g Weight: Connector 10.1.1.

  • Page 27: Usb Cable

    Opticon OPR 3201 Specifications Manual 10.2. USB Cable (Standard specification) Figure 21: USB cable Straight Type: Φ4.8 ±0.5 mm Diameter: 1500 +50, -0 mm Length: 4 insulated wires, 1 conductive wire Cores: Approximately 40 g Weight: Connector 10.2.1. Figure 22: USB “A” connector...

  • Page 28: Wedge Cable

    Opticon OPR 3201 Specifications Manual 10.3. Wedge Cable (Standard specification) Figure 23: Wedge cable Y cable Type: Φ4.8 ±0.5 mm Diameter: 1500 +50, -0 mm Length: 6 insulated wires, 1 conductive wire Cores: Approximately 50 g Weight: Connector 10.3.1. a) Host Connector...

  • Page 29: Default Settings

    Opticon OPR 3201 Specifications Manual b) Keyboard Connector Figure 25: Keyboard connector Contact Number Signal Name KEY_DATA KEY_CLK • Do not turn the adapter ON or OFF while using the keyboard, as doing so may cause malfunctions. • Do not use the keyboard or attempt a scanning operation before the operating system on the host computer is fully activated.
  • Page 30 Opticon OPR 3201 Specifications Manual USB-HID Functions Menu labels Menu codes _ZZ_ USB-HID _SU_ _ZZ_ USB-VCP Functions Menu labels Menu codes _ZZ_ USB-VCP _ZZ_ Wedge (with external keyboard) Functions Menu labels Menu codes _ZZ_ AT-Wedge _UB_ Keyboard layout: _KM_ with keyboard...

  • Page 31: Default Settings 1: Readable Codes

    Opticon OPR 3201 Specifications Manual 11.2. Default Settings 1: Readable Codes Symbology Read Transmit Transmit Calculate Other Code Prefix Suffix Length UPC-A — UPC-A Add-on — UPC-E — UPC-E Add-on — EAN-13 — EAN-13 Add-on — EAN-8 — EAN-8 Add-on —...

  • Page 32: Default Settings 2: Read Options, Trigger, Buzzer

    Opticon OPR 3201 Specifications Manual Notes: In the “Reading” column, “ ” means “Enable reading” and “X” means “Disable reading.” In the “Transmit code length” column, “ ” means “Transmit code length” and “X” means “Do not transmit code length.”...

  • Page 33: Default Settings 3: Communication Settings

    Opticon OPR 3201 Specifications Manual 11.4. Default Settings 3: Communication Settings Default Settings 3A: Serial Communication Settings— RS-232C 11.4.1. Parameter “U2” Default Setting Baud rate 9600 bps Parity bits No parity Data length 8 bits Stop bits 1 bit Handshaking...

  • Page 34: Serial Number And Labeling

    Opticon OPR 3201 Specifications Manual 12. Serial Number and Labeling The serial number shown below is affixed to the scanner. Figure 26: Serial number label Figure 27: FCC compliance label Figure 28: CE compliance label...

  • Page 35: Packaging Specifications

    Opticon OPR 3201 Specifications Manual 13. Packaging Specifications 13.1. Individual Packaging Specification Put the scanner in a protective foam bag and place it in an individual packing box. Size of the package (after assembly: (W) 255 x (D) 120 x (H) 105 mm...

  • Page 36: Collective Packaging Specification

    Opticon OPR 3201 Specifications Manual 13.2. Collective Packaging Specification Size of the package (after assembly: (W) 255 x (D) 120 x (H) 105 mm Box B88010- 24 Rows The or der of ser i al - No. Car t on box ：( No. 18) B88010- 25 ①...

  • Page 37: Durability

    Opticon OPR 3201 Specifications Manual 14. Durability 14.1. Static Electricity Air discharge: ±10 kV max. (No malfunction) ±15 kV max. (No destruction) Contact discharge: ±6 kV max. (No malfunction) ±15 kV max. (No destruction) Measurement Use electrostatic testing device compliant with IEC 61000-4-2...

  • Page 38: Vibration Strength (Without Packaging)

    Opticon OPR 3201 Specifications Manual 14.3. Vibration Strength (without packaging) No malfunction occurred after the following vibration test. Vibration test: Increase the frequency of the vibration from 10 Hz to 100 Hz with accelerated velocity 19.6m/s (2G) for 30 minutes (60 minutes for one cycle) in non- operating state.

  • Page 39: Cable Bending Test

    Opticon OPR 3201 Specifications Manual 14.7. Cable Bending Test No malfunction occurred after the following cable bending test. Add a load of 4.9 N (500 gf) to a cable then bend it at an angle of 90 degrees to both right and left.

  • Page 40: Trigger And Read Options

    16. Trigger and Read Options 16.1. Auto Trigger Overview The OPR 3201 has an optional auto trigger setting, which starts barcode reading after detecting a change in reflection in the detection area. When auto trigger is used, the scanner starts barcode reading after detecting a change in reflection in the detection area.

  • Page 41: Stand Detection

    Opticon OPR 3201 Specifications Manual 16.2. Stand Detection Enabled: This option automatically enables auto trigger when the reader is inserted into a stand. Disabled: The reader auto trigger function behaves the same whether it is in or out of the stand.

  • Page 42: Enable Auto Trigger All The Time

    Opticon OPR 3201 Specifications Manual Enable Auto Trigger All the Time 16.3.2. This option enables auto trigger all the time. Functions Menu labels Menu codes _ZZ_ _+I_ Enable auto trigger Disable auto trigger stand detection _*5_ _ZZ_ Only Trigger Manually 16.3.3.

  • Page 43: Regulatory Compliance

    Opticon OPR 3201 Specifications Manual 17. Regulatory Compliance 17.1. Laser Safety The scanner emits laser beams. JIS C6802: 2005: Laser class 2 IEC 825-1/EN 60825-1: Laser class 2 FDA CDRH Laser class II. Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser notice No.

  • Page 44: Safety

    Opticon OPR 3201 Specifications Manual 18. Safety Handle this product carefully. Do not deliberately subject it to any of the following. 18.1. Shock Do not throw or drop the scanner. Do not place heavy objects on the cables. 18.2. Temperature Conditions Do not use the scanner at temperatures outside the specified range.

  • Page 45: Mechanical Drawing

    Opticon OPR 3201 Specifications Manual 19. Mechanical Drawing Dimensions: 56.0 (W) × 108.1 (D) x 148.6 (H) mm (except protruding portion) Figure 35: Mechanical drawing...
