3. PREPARING TO OPERATE THE SCANNER

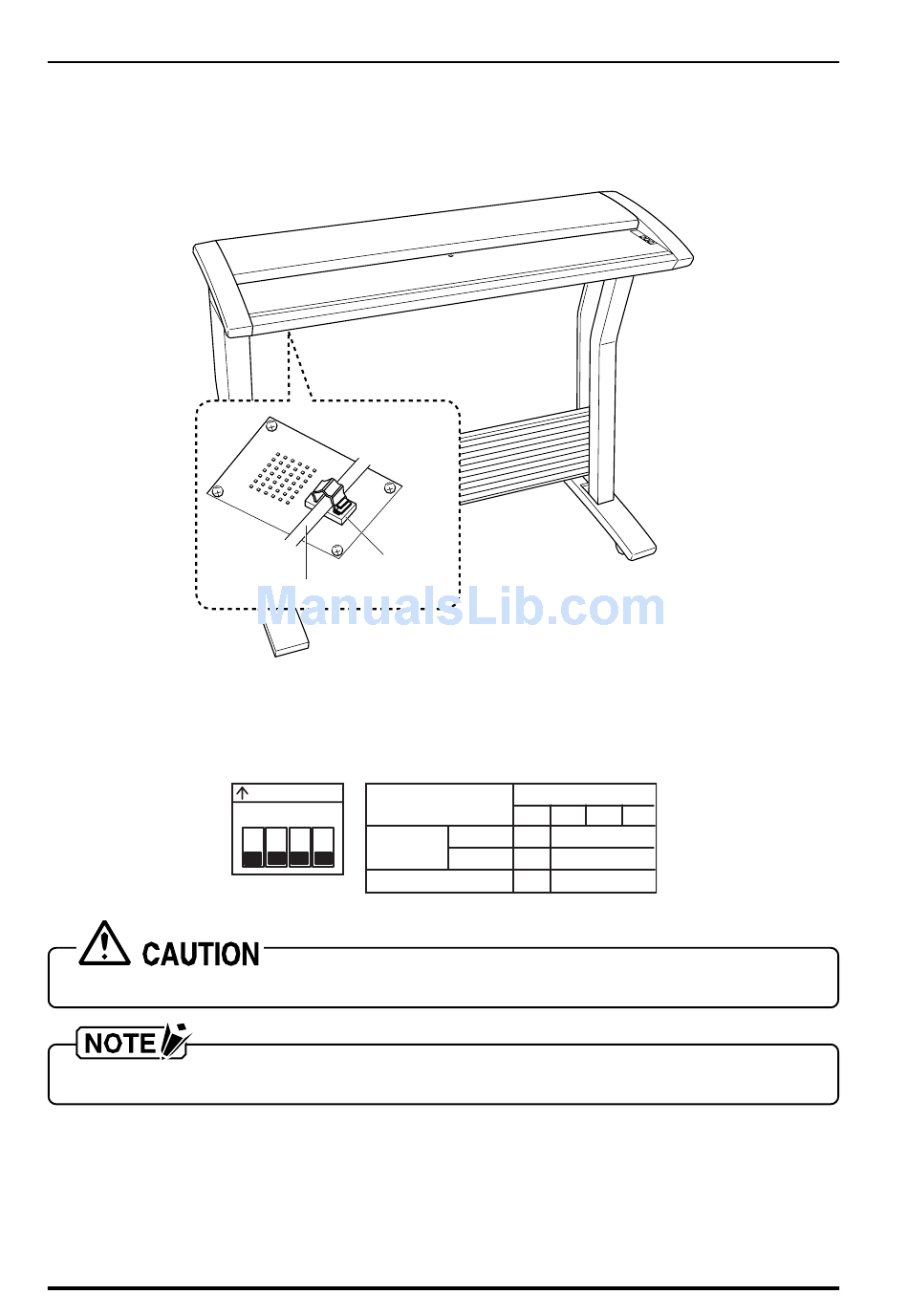

(2) If the SCSI cable comes into contact with the document, use the cable clamp provided
as a standard accessory to fasten the cable to the underside of the scanner, at either
the left or right side (CS1000EV only).
(3) Insert the cable's other end into the computer's connector.
(4) If this scanner will be a terminal within the network configuration, set Bit 4 of the DIP
switch on the scanner's rear panel to enable the internal terminator function.
Turn off the scanner before changing a DIP switch setting.
The scanner comes with the Terminator setting of "Enable" as its factory-preset default.
3 – 4
Cable clamp
SCSI cable
ON
4 3 2 1
Terminator
DIP switch's bits
4 3 2
ON
Disable
OFF
Enable
Usually OFF
1
