2. PREPARATION

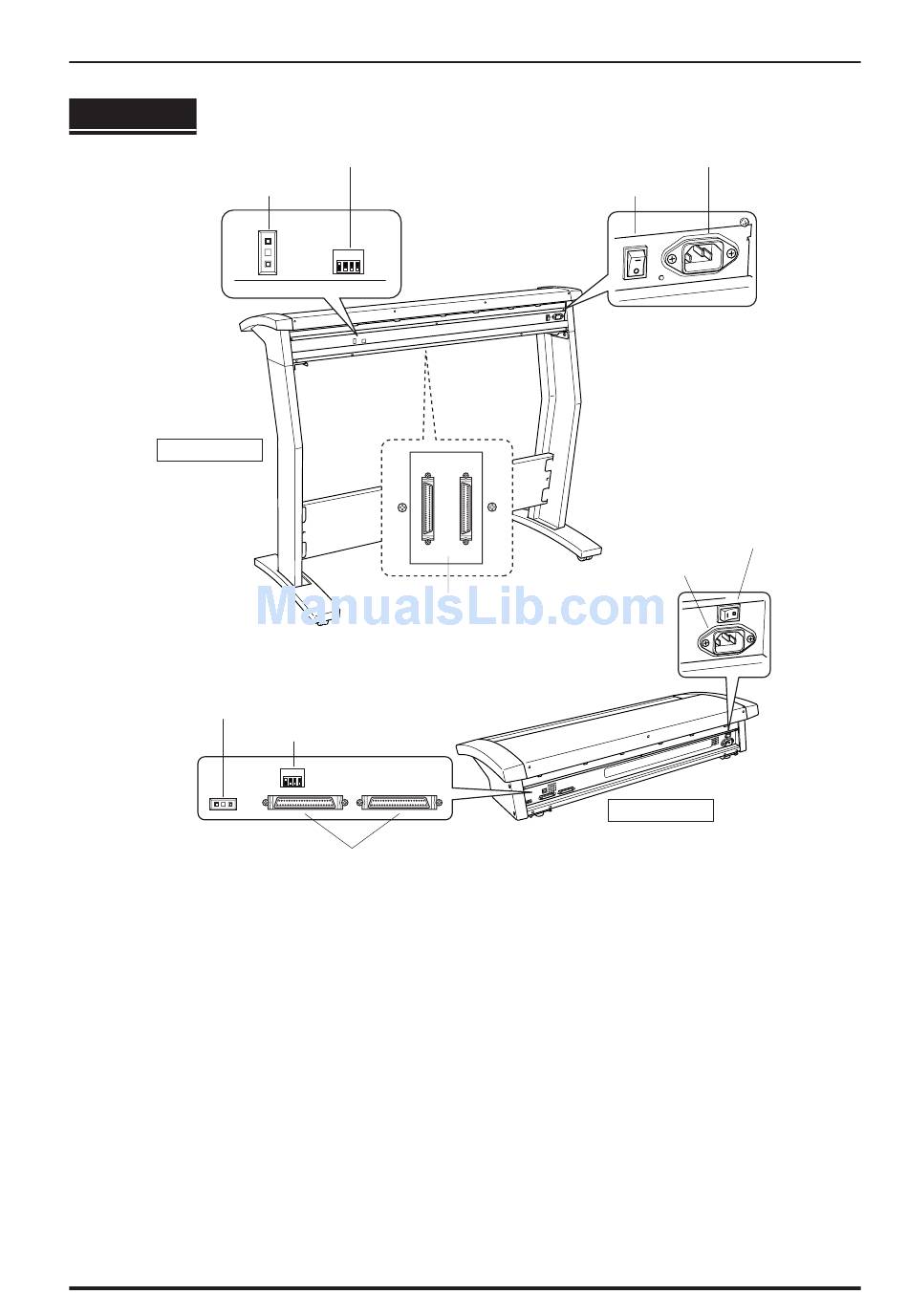

Rear View
DIP switch AC line inlet
SCSI-ID switches
Power switch
2
4 3 2 1
CS1000EV
Power switch
AC line inlet
SCSI connectors
SCSI-ID switches
DIP switch
4 3 2 1
CS1100EV
SCSI connectors
SCSI-ID switches
Used to specify the ID numbers of the SCSI interfaces.
DIP switch
Used to set the scanner's functions.
Power switch
Controls the on/off status of the power supply to the scanner.
AC line inlet
Connect the power cord's female plug here.
SCSI connectors
Used to connect SCSI interface cables. The two connectors are connected in parallel inside
the scanner.
CS1000EV/1100EV 2 – 5
