starts, the serial port remains in Data Mode until the connection is dropped or the
serial port is placed in Command Mode by issuing the modem command +++.

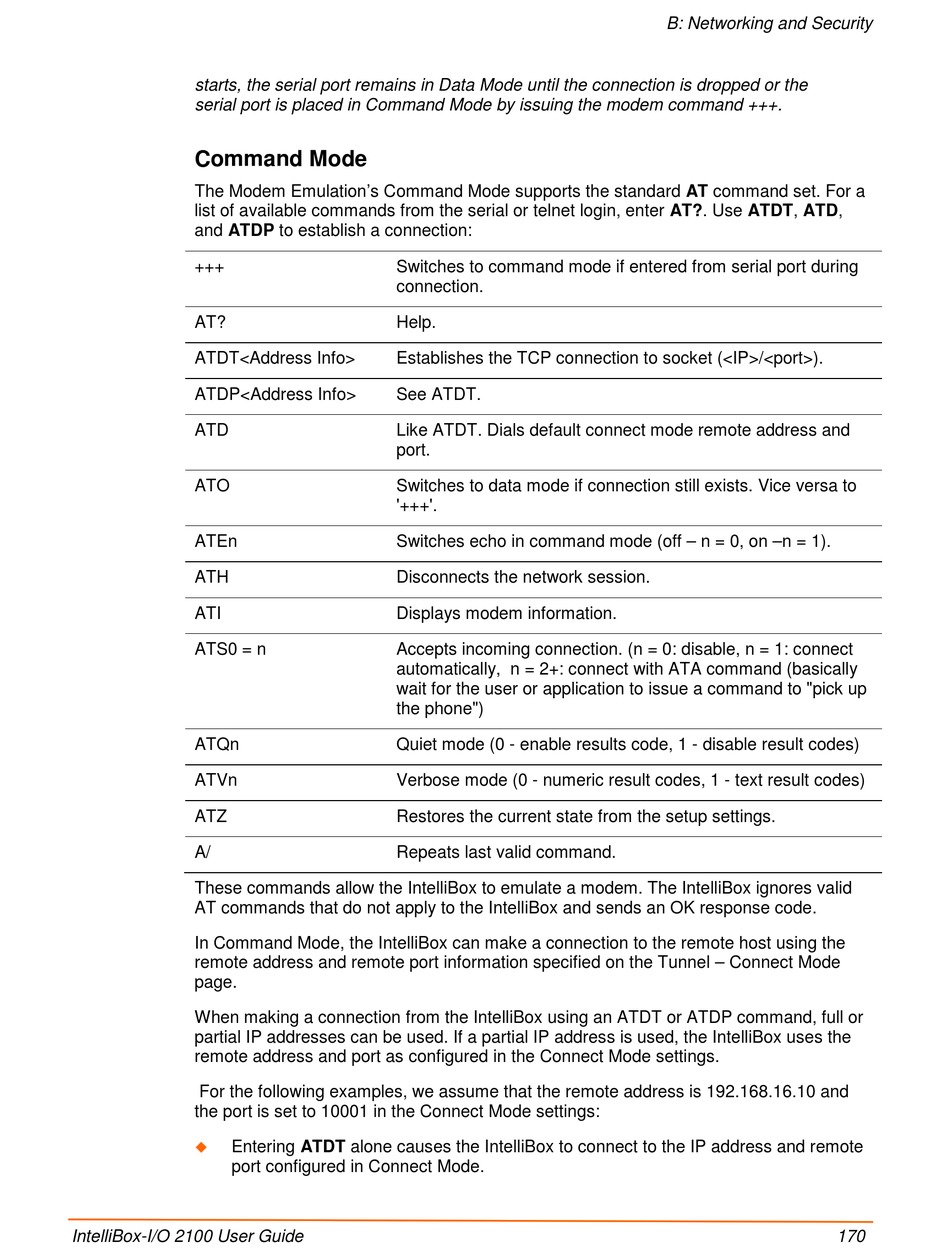

Command Mode

The Modem Emulation's Command Mode supports the standard AT command set. For a
list of available commands from the serial or telnet login, enter AT?. Use ATDT, ATD,
and ATDP to establish a connection:
+++
AT?
ATDT<Address Info>
ATDP<Address Info>
ATD
ATO
ATEn
ATH
ATI
ATS0 = n
ATQn
ATVn
ATZ
A/
These commands allow the IntelliBox to emulate a modem. The IntelliBox ignores valid
AT commands that do not apply to the IntelliBox and sends an OK response code.
In Command Mode, the IntelliBox can make a connection to the remote host using the
remote address and remote port information specified on the Tunnel – Connect Mode
page.
When making a connection from the IntelliBox using an ATDT or ATDP command, full or
partial IP addresses can be used. If a partial IP address is used, the IntelliBox uses the
remote address and port as configured in the Connect Mode settings.
For the following examples, we assume that the remote address is 192.168.16.10 and
the port is set to 10001 in the Connect Mode settings:
 Entering ATDT alone causes the IntelliBox to connect to the IP address and remote
port configured in Connect Mode.
IntelliBox-I/O 2100 User Guide
Switches to command mode if entered from serial port during
connection.
Help.
Establishes the TCP connection to socket (<IP>/<port>).
See ATDT.
Like ATDT. Dials default connect mode remote address and
port.
Switches to data mode if connection still exists. Vice versa to
'+++'.
Switches echo in command mode (off – n = 0, on –n = 1).
Disconnects the network session.
Displays modem information.
Accepts incoming connection. (n = 0: disable, n = 1: connect
automatically, n = 2+: connect with ATA command (basically
wait for the user or application to issue a command to "pick up
the phone")
Quiet mode (0 - enable results code, 1 - disable result codes)
Verbose mode (0 - numeric result codes, 1 - text result codes)
Restores the current state from the setup settings.
Repeats last valid command.
