The After Reboot column in the Current Configuration section of this page shows the
settings that will take effect the next time the IntelliBox reboots.
Changes to the following settings require you to reboot the IntelliBox before the new
settings take effect:
 BOOTP Client

DHCP Client
 IP Address
 Network Mask
 DHCP Client ID
Note: Some settings in the Current Configuration section, such as IP Address
and Network Mask have a Delete link you can click to delete the setting. If you
click this link, a warning message asks whether you are sure you want to delete
the setting. Click OK to delete the setting or Cancel to keep it.
Network
Configuration
Page Settings
BOOTP Client
DHCP Client
IP Address
Network Mask
IntelliBox-I/O 2100 User Guide
7: Network, Serial Line, Tunnel, and Modbus Settings

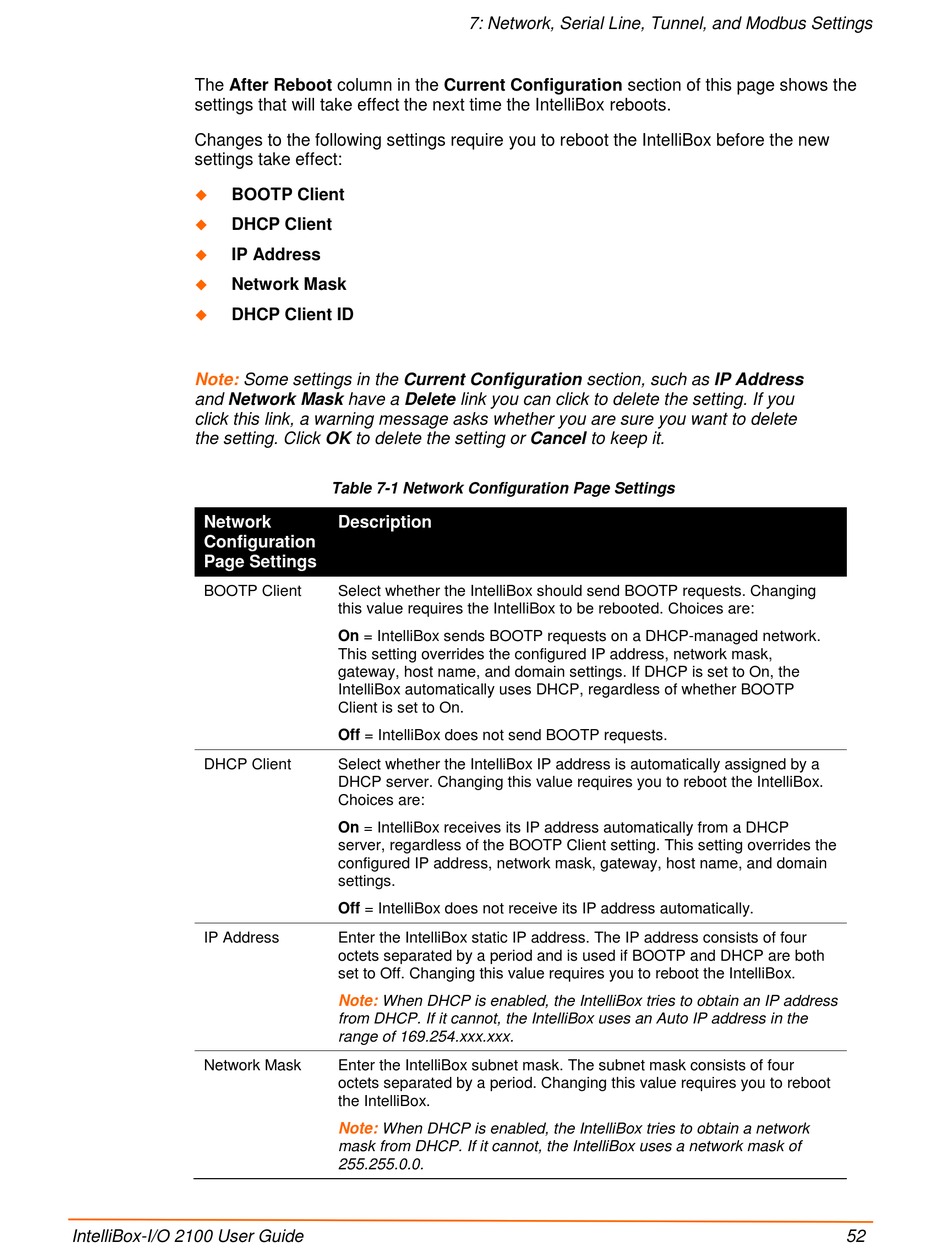

Table 7-1 Network Configuration Page Settings

Description
Select whether the IntelliBox should send BOOTP requests. Changing
this value requires the IntelliBox to be rebooted. Choices are:
On = IntelliBox sends BOOTP requests on a DHCP-managed network.
This setting overrides the configured IP address, network mask,
gateway, host name, and domain settings. If DHCP is set to On, the
IntelliBox automatically uses DHCP, regardless of whether BOOTP
Client is set to On.
Off = IntelliBox does not send BOOTP requests.
Select whether the IntelliBox IP address is automatically assigned by a
DHCP server. Changing this value requires you to reboot the IntelliBox.
Choices are:
On = IntelliBox receives its IP address automatically from a DHCP
server, regardless of the BOOTP Client setting. This setting overrides the
configured IP address, network mask, gateway, host name, and domain
settings.
Off = IntelliBox does not receive its IP address automatically.
Enter the IntelliBox static IP address. The IP address consists of four
octets separated by a period and is used if BOOTP and DHCP are both
set to Off. Changing this value requires you to reboot the IntelliBox.
Note: When DHCP is enabled, the IntelliBox tries to obtain an IP address
from DHCP. If it cannot, the IntelliBox uses an Auto IP address in the
range of 169.254.xxx.xxx.
Enter the IntelliBox subnet mask. The subnet mask consists of four
octets separated by a period. Changing this value requires you to reboot
the IntelliBox.
Note: When DHCP is enabled, the IntelliBox tries to obtain a network
mask from DHCP. If it cannot, the IntelliBox uses a network mask of
255.255.0.0.
