Features

The following list summarizes the key features of the IntelliBox-I/O 2100.
 Monitor events in real-time
 Automatically respond to events with user-defined actions
 Query and gather data from attached device (sent to user via email and RSS feed)
 One RS-232 serial port
 One RS-422/485 serial port
 One RJ45 Ethernet port
 Two isolated configurable digital I/Os

One isolated non-latching relay
 4 MBytes Flash memory
 2 MB (or 16 Mbit) SRAM (Static Random Access Memory)
 Based on Lantronix's Evolution OS™
 Supports secure data encryption by means of AES, SSH, or SSL sessions
 Supports three convenient configuration methods (web, command line, and XML)
 Supports Modbus/TCP, Modbus/RTU and Modbus/ASCII protocols
 Simultaneous communication from up to 16 Modbus CP masters
 Operational temp range -40°C to +75°C
 Wall mount tabs and optional dinrail mount clip

Typical Devices

Examples of typical devices that can connect to the IntelliBox digital I/Os:
 Proximity Sensor
IntelliBox-I/O 2100 User Guide

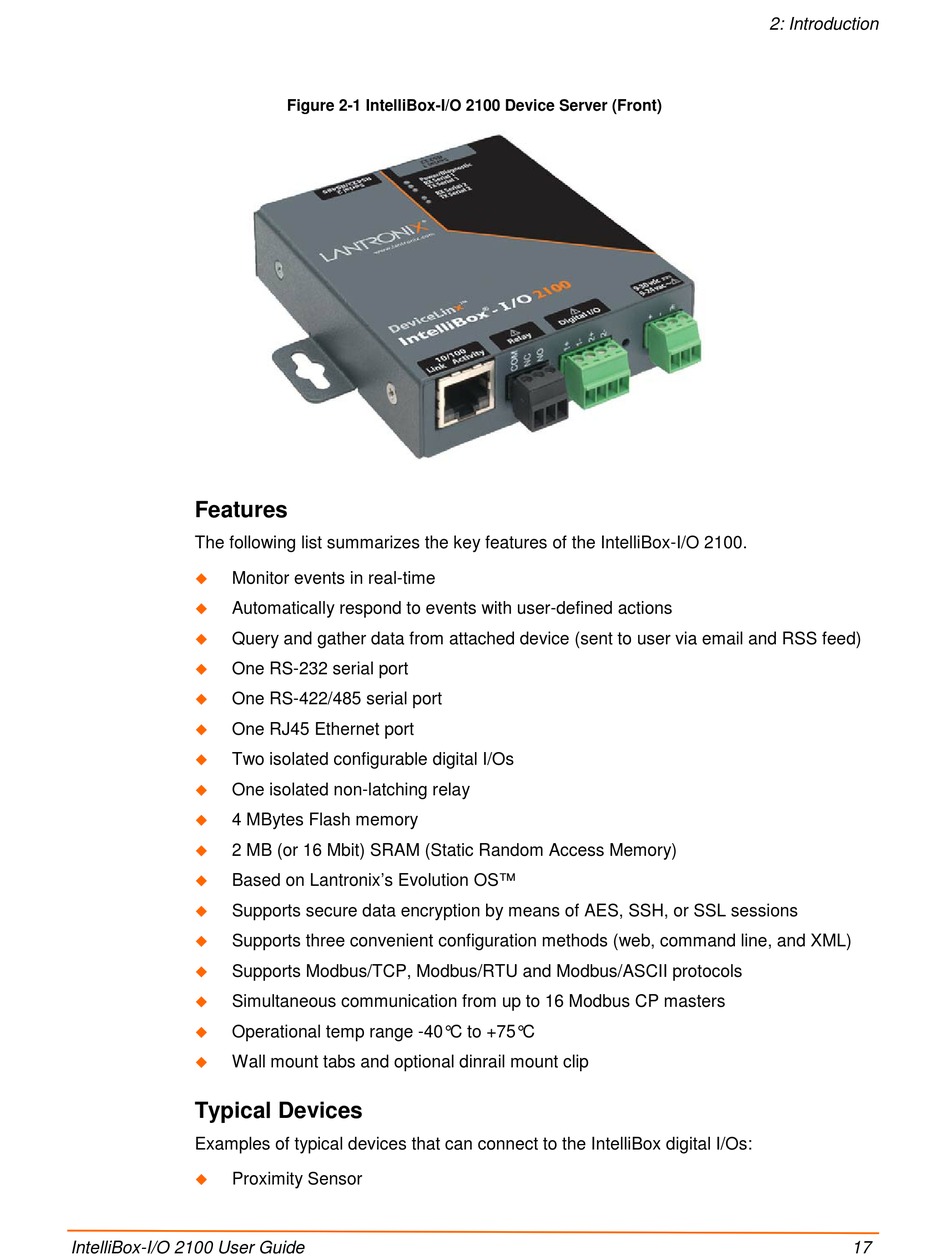

Figure 2-1 IntelliBox-I/O 2100 Device Server (Front)
