13: EventTrak Pages

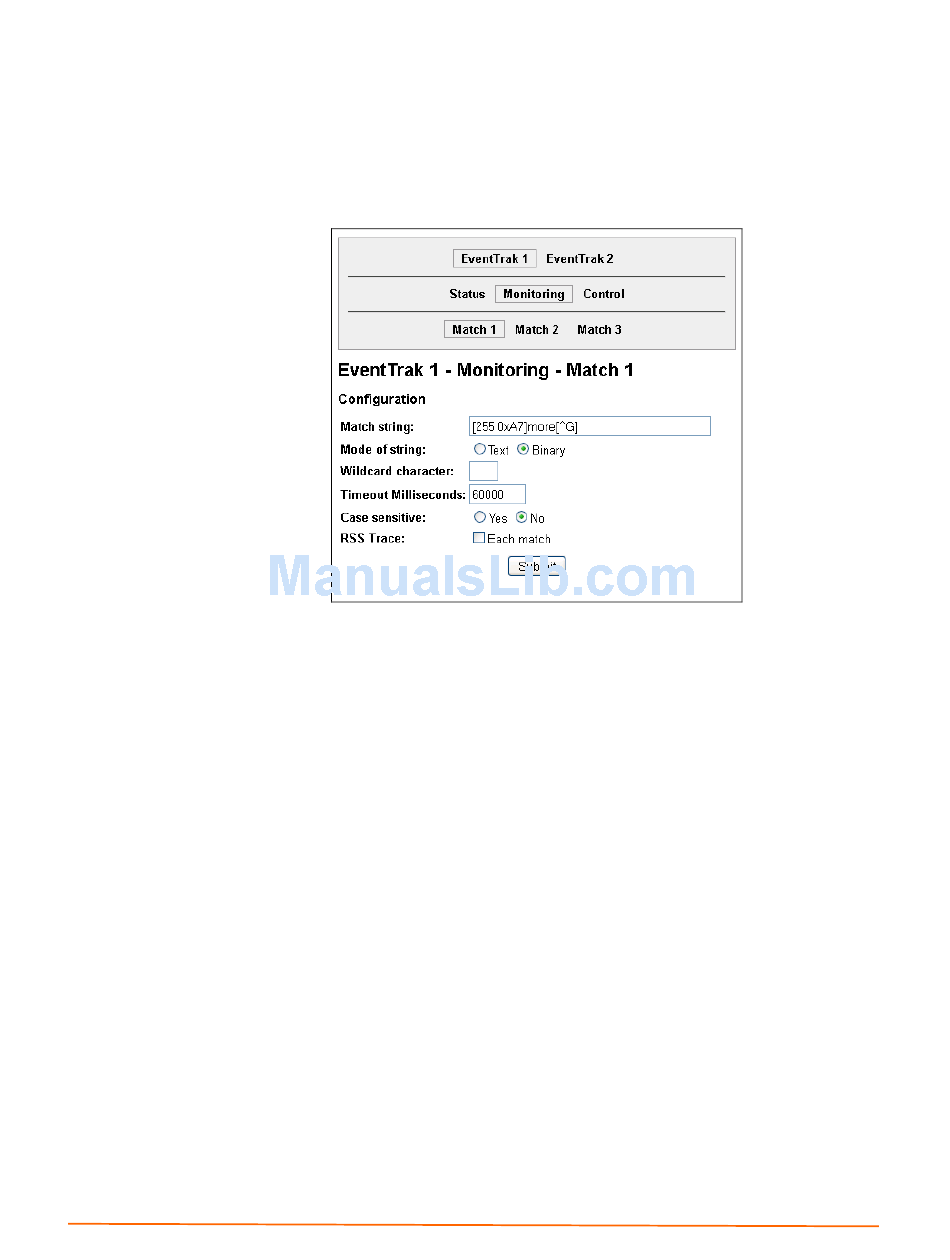

Match String Example 3 – Mixing Text and Special Characters
In this example, the match string contains a combination of decimal, hexadecimal, text,
and control characters. Users can configure EventTrak to monitor specific protocols that
the attached device requires.
Note: Mode of string must be Binary to support hexadecimal, decimal, and
control characters.
EventTrak – Control Page
The EventTrak Control page displays when you click Control at the top of one of the
other EventTrak pages. Each EventTrak has three tasks. Each task can monitor for
different events simultaneously. This page enables you to set up EventTrak to monitor
and take action in response to events. Additionally, a detected event on one task can
trigger an event on another task. Two triggers ( Trigger A and Trigger B) are supported
for sending and and receiving local triggers. This provides flexibility for configuring
definitions of events and actions in response to a detected event. An externally triggered
option is also available to trigger from one eventtrak to another.
The Task configuration page uses a dynamically changing interface. As you make
changes, only applicable settings display. As a result, the IntelliBox interface remains
easy to use while also allowing for highly advanced configurable event detection with
multiple actions.
At the top of the page, select Task 1, Task 2, or Task 3 to display a Control page for
each task you want to configure.
