EventTrak Control
Page Initial
Settings
RSS Trace
Output Control
Step "A"
EventTrak consists of multiple steps that determine the events EventTrak will monitor and
the actions it will take in response to them. A simple EventTrak configuration may only
use one step, while a more complex configuration can use multiple steps in multiple tasks
or even multiple EventTraks. The EventTrak user interface is dynamic; for example, Step
"B" only displays if it can advance to it.
Each step consists of two to four configurable items, depending on the options selected.

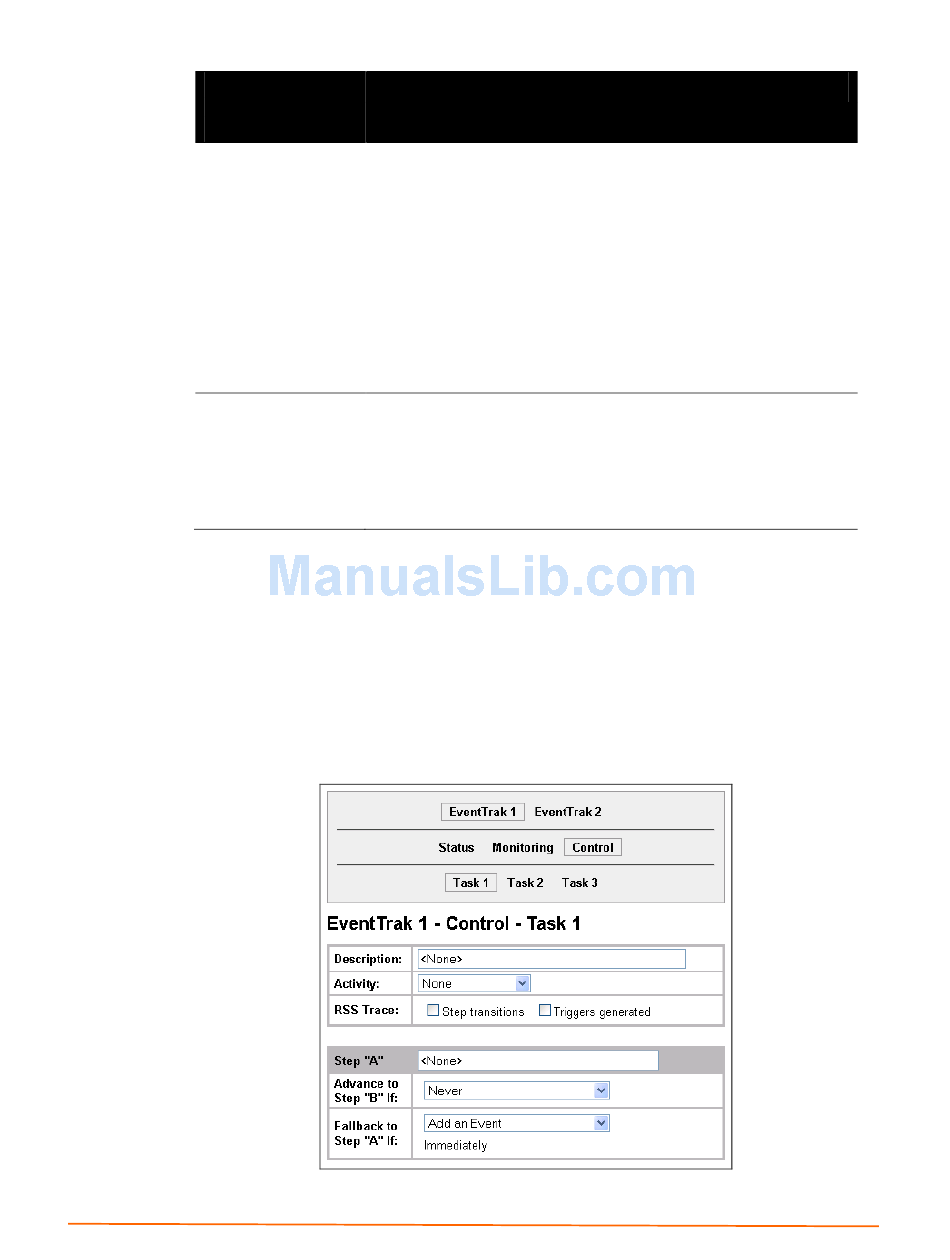

For example, if you select Relay as the initial activity, you must select the initial relay
setting at the beginning of Step "A" as shown in the example below.
IntelliBox-I/O 2100 User Guide
Description
Enables recording on RSS each time EventTrak takes a step or
generates a trigger. Select one or more of the following criteria for
initiating an RSS trace. This function is primarily for troubleshooting.
Choices are:
Step transitions = sends a trace whenever EventTrak moves
forward or back from one step to another.
Triggers generated = sends a trace whenever EventTrak generates
a trigger for an event to take place.
Ping responses = sends a trace whenever the IntelliBox
successfully pings a device.
If you selected XIO1, XIO2, or Relay, select an output control option
in the field that displays. Choices are:
Exclusive = Only one task can control the I/O pin or relay.
Logical-Or (shared): = Multiple tasks can control the I/O pin or
relay.
13: EventTrak Pages
