Tunnel – Serial Settings Page
If you click Serial Settings at the top of one of the Tunnel pages, the Tunnel – Serial
Settings page displays. This page shows the settings for the tunnel selected at the top of
the page and lets you change the settings. If you change the Buffer Size value, you must
reboot the IntelliBox for the change to take effect. Changing the other values does not
require a reboot.
Under Current Configuration, Buffer Size has a Reset link that lets you reset the buffer
size to its default value. If you click this link, a message tells you that you will have to
reboot the IntelliBox. Click OK to proceed or Cancel to cancel the operation.
Note: The default protocol is Tunnel. The protocol on the line 1 page must be
Tunnel for tunneling to operate.
Tunnel –
Serial
Settings Page
Line Settings
Protocol
Buffer Size
DTR
IntelliBox-I/O 2100 User Guide
7: Network, Serial Line, Tunnel, and Modbus Settings

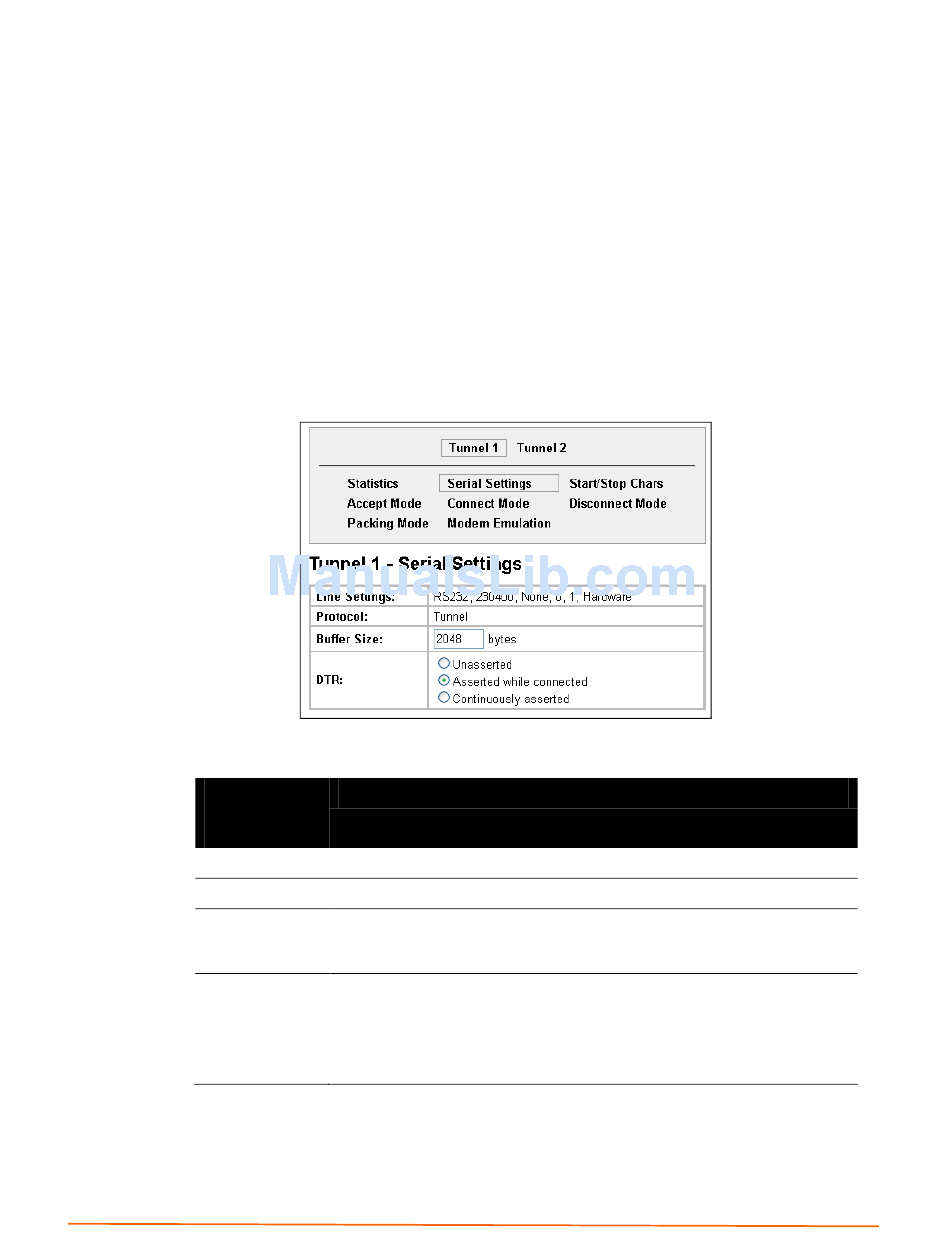

Figure 7-6 Tunnel – Serial Settings Page
Table 7-4 Tunnel – Serial Settings Page
Description
Lists current serial settings for the line.
Lists the protocol being used on the line.
Enter the size of the buffer used to receive data on the serial line.
Range = 1 to 4096 bytes. Default is 2048 bytes. Changing this value
requires you to reboot the IntelliBox.
Select Asserted while connected to assert DTR whenever a connect or
an accept mode tunnel connection is active. Select Continuously
Asserted (default) to assert DTR regardless of the status of a tunnel
connection.
Unasserted sets DTR off always.
61
