Calibrating a Scroller
You can calibrate the center point of any frame in a scroller using the calibrate feature. This will
ensure that color scroll frames will be centered over the aperture of the fixture when you advance
a color scroll frame-by-frame. You can do this using the ML Controls display.
page
136..
N o t e :
To calibrate a scroller:
Step 1:
In the Live display, select the scroller channel.
Step 2:
Use the [ML Controls] key to open the ML Controls display.
Step 3:
To begin calibrating, click on the {Scroller ::} button. The scroller encoder will be
displayed.
Step 4:
Use the scroller encoder to adjust the centerpoint of a frame. It is recommended that
you start with the last frame in the scroll.
Step 5:
When the frame is centered, click {Calibrate}.
Step 6:
Repeat for any remaining frames that need to be calibrated.
58
It is recommended that you calibrate your scroller frames starting with the last
frame and working backward to the first frame. This will help ensure a complete
and accurate calibration.
Calibration may need to be performed when you initially patch a scroller and may
need to be adjusted through the course of operation as spring tension changes in
a color scroller.
• The color category will display automatically with the Hue and Saturation
encoders and a frame picker.

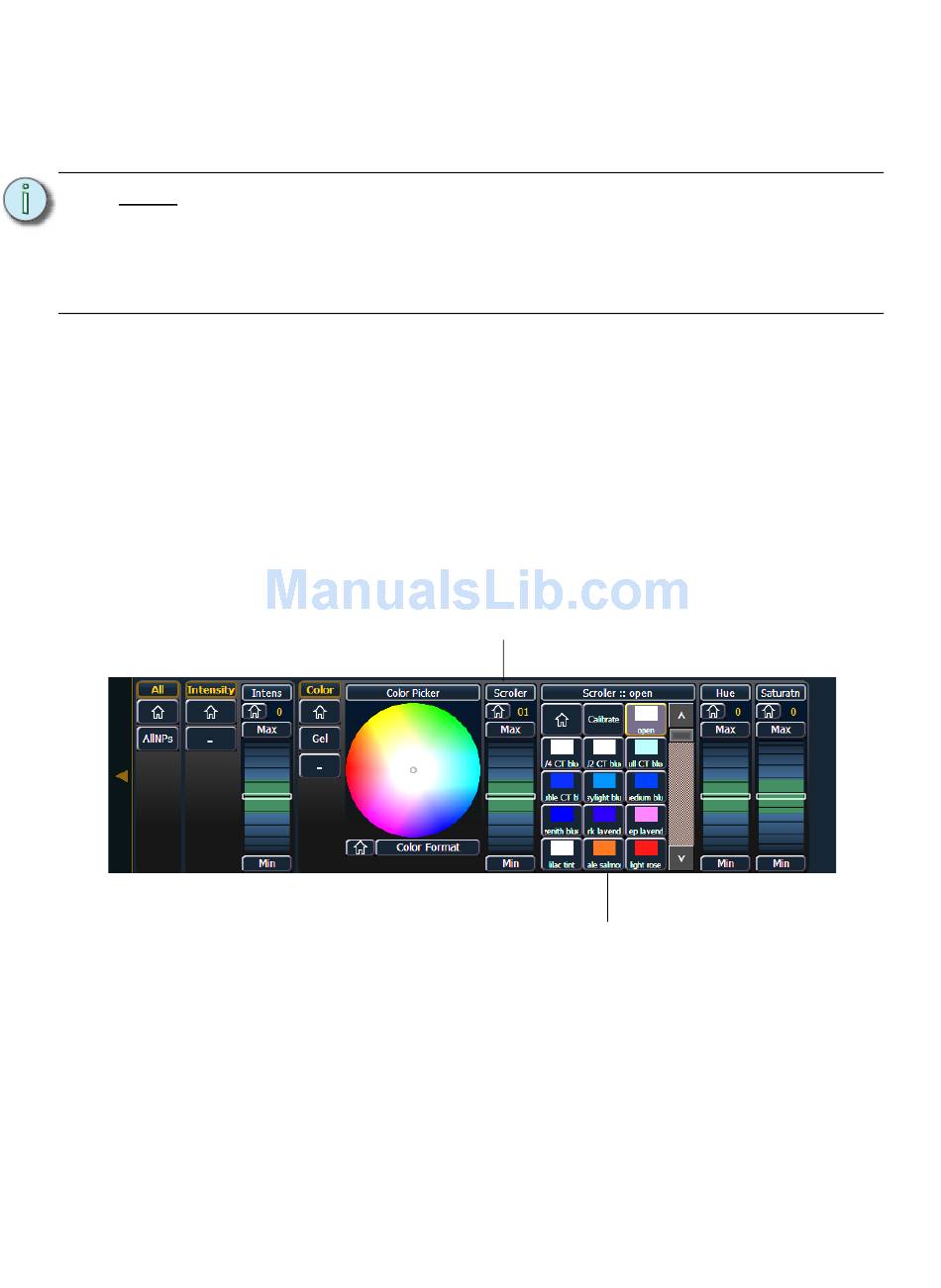

Scroller Encoder
Frame Picker
See "ML Control" on
Element User Manual
