Local I/O

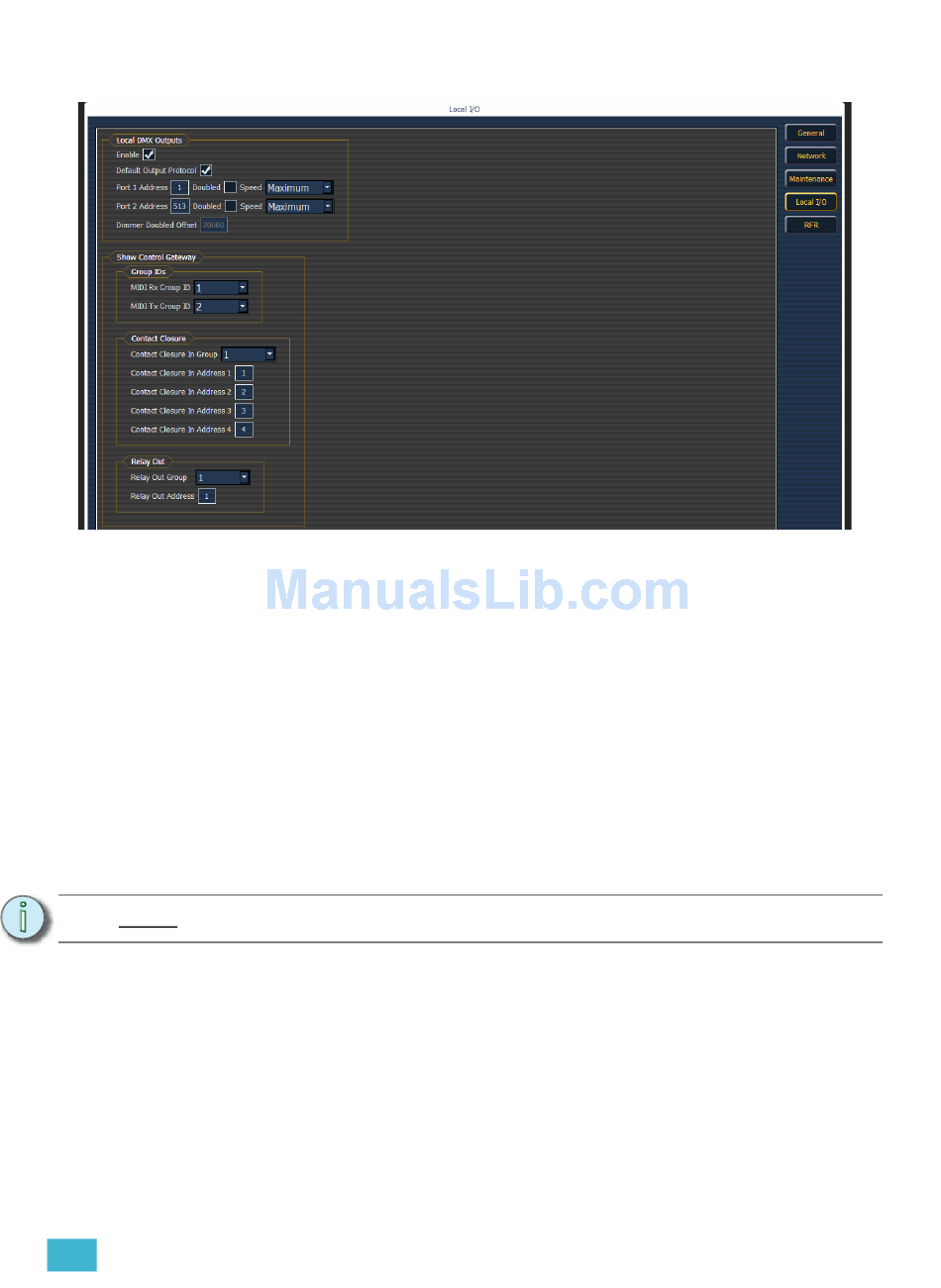

This screen allows you to configure the ports on the back of the Element desk.
L o c a l D M X O u t p u t s
The following settings are available:
• Enable - enables DMX output from the local ports.
• Default Output Protocol - enables DMX as a default output.
• Ports - the settings for the two DMX ports.
• Address - sets the starting address for the port.
• Doubled - enables dimmer doubling on the port.
• Speed - sets the speed for the ports. Options are: maximum, fast, medium, and slow.
The speed may need to be adjusted for certain devices. The default speed is maximum.
• Dimmer Doubled Offset - this offset matches the default offset in CEM+ / CEM3 when
configuring your Sensor dimmer rack for dimmer doubling. The default offset is 20,000.
S h o w C o n tr o l G a te w a y
N o t e :
G r o u p I D s
Allows you to set the group number for the MIDI In and MIDI Out ports. Group numbers can be from
1-32. Default for both ports is 1.
C o n t a c t C l o s u r e ( r e m o t e t r i g g e r c o n n e c t o r )
Allows you to set the Group and Address In values for the remote trigger input on the back of
Element.
B
Element Configuration Utility
To input RS-232 into an Element desk, you will need to use a Net3 I/O Gateway.
