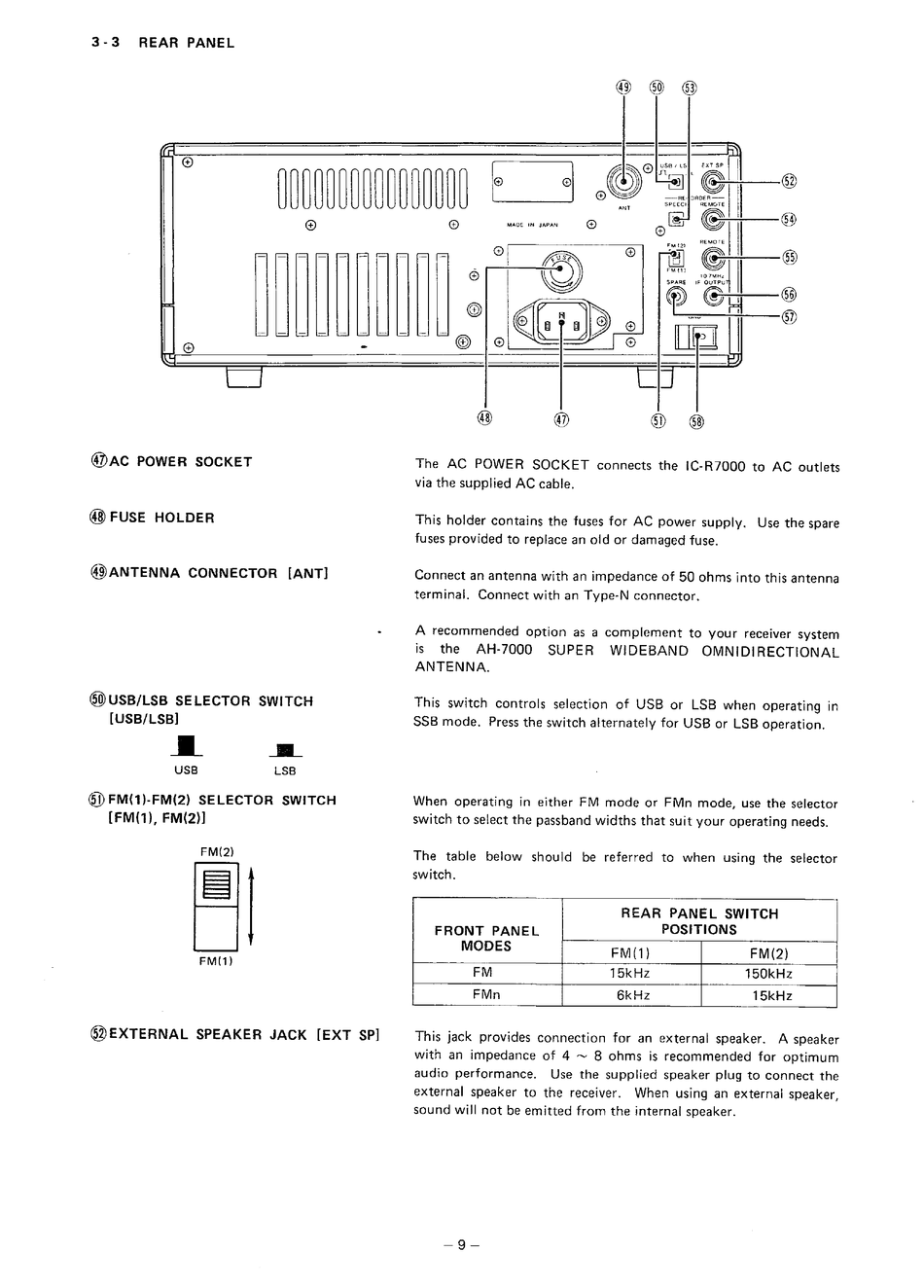

3- 3 REAR PANEL
F l
e
@AC POWER SOCKET
@FUSE HOLDER
@ANTENNA CONNECTOR [ANT]
(@)
USB/LSB SELECTOR SWITCH
[USB/LSB]
_._
---
USB LSB
@FM(1)-FM(2) SELECTOR SWITCH
[FM(1), FM(2)]
FM(2)
~~
FM(1)
(@EXTERNAL SPEAKER JACK [EXT SP]
MAOE IN JAPAN
@
The AC POWER SOCKET connects the IC-R7000 to AC outlets
via the supplied AC cable.
This holder contains the fuses for AC power supply. Use the spare
fuses provided to replace an old or damaged fuse.
Connect an antenna with an impedance of 50 ohms into this antenna
terminal. Connect with an Type-N connector.
A recommended option as a complement to your receiver system
is the AH-7000 SUPER WIDEBAND OMNIDIRECTIONAL
ANTENNA.
This switch controls selection of USB or LSB when operating in
SSB mode. Press the switch alternately for USB or LSB operation.
When operating in either FM mode or FMn mode, use the selector
switch to select the passband widths that suit your operating needs.
The table below should be referred to when using the selector
switch.
REAR PANEL SWITCH
FRONT PANEL
POSITIONS
MODES
FM(1) FM(2)
FM
15kHz 150kHz
FMn
6kHz 15kHz
This jack provides connection for an external speaker. A speaker
with an impedance of 4
~
8 ohms is recommended for optimum
audio performance. Use the supplied speaker plug to connect the
external speaker to the receiver. When using an external speaker,
sound will not be emitted from the internal speaker.
-9-
