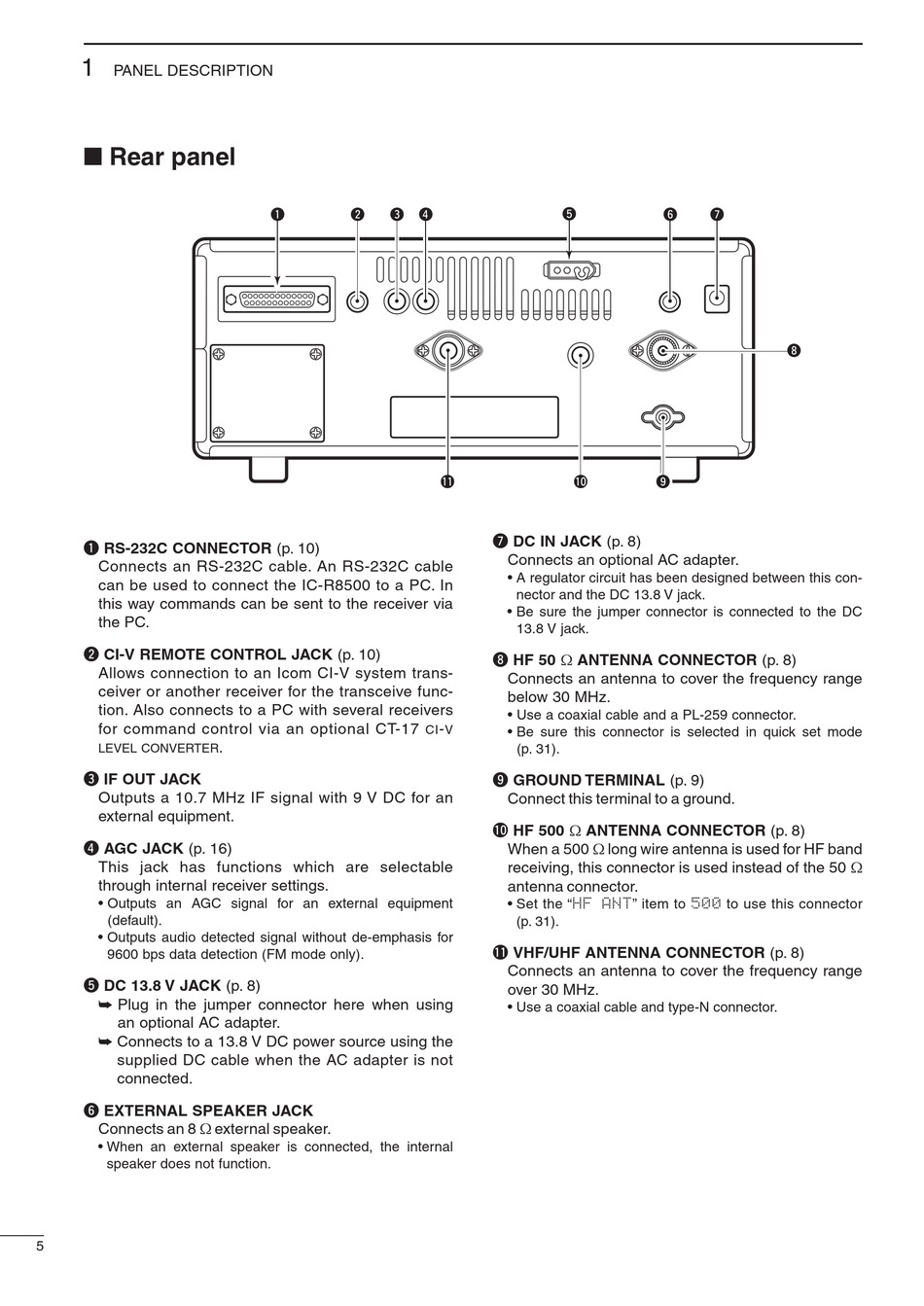

PANEL DESCRIPTION

■ Rear panel

q RS-232C CONNECTOR (p. 10)
Connects an RS-232C cable. An RS-232C cable
can be used to connect the IC-R8500 to a PC. In
this way commands can be sent to the receiver via
the PC.
w CI-V REMOTE CONTROL JACK (p. 10)
Allows connection to an Icom CI-V system trans-
ceiver or another receiver for the transceive func-
tion. Also connects to a PC with several receivers
for command control via an optional CT-17
level converter
e IF OUT JACK
Outputs a 10.7 MHz IF signal with 9 V DC for an
external equipment.
r AGC JACK (p. 16)
This jack has functions which are selectable
through internal receiver settings.
• Outputs an AGC signal for an external equipment
(default).
• Outputs audio detected signal without de-emphasis for
9600 bps data detection (FM mode only).
t DC 13.8 V JACK (p. 8)
➥ Plug in the jumper connector here when using
an optional AC adapter.
➥ Connects to a 13.8 V DC power source using the
supplied DC cable when the AC adapter is not
connected.
y EXTERNAL SPEAKER JACK
Connects an 8 Ω external speaker.
• When an external speaker is connected, the internal
speaker does not function.
5
q w e
.
r t
!1 !0
u DC IN JACK (p. 8)
Connects an optional AC adapter.
• A regulator circuit has been designed between this con-
nector and the DC 13.8 V jack.
• Be sure the jumper connector is connected to the DC
13.8 V jack.
i HF 50 Ω ANTENNA CONNECTOR (p. 8)
Connects an antenna to cover the frequency range
below 30 MHz.
• Use a coaxial cable and a PL-259 connector.
-
ci v
• Be sure this connector is selected in quick set mode
(p. 31).
o GROUND TERMINAL (p. 9)
Connect this terminal to a ground.
!0 HF 500 Ω ANTENNA CONNECTOR (p. 8)
When a 500 Ω long wire antenna is used for HF band
receiving, this connector is used instead of the 50 Ω
antenna connector.
• Set the "HF ANT" item to 500 to use this connector
(p. 31).
!1 VHF/UHF ANTENNA CONNECTOR (p. 8)
Connects an antenna to cover the frequency range
over 30 MHz.
• Use a coaxial cable and type-N connector.
