1

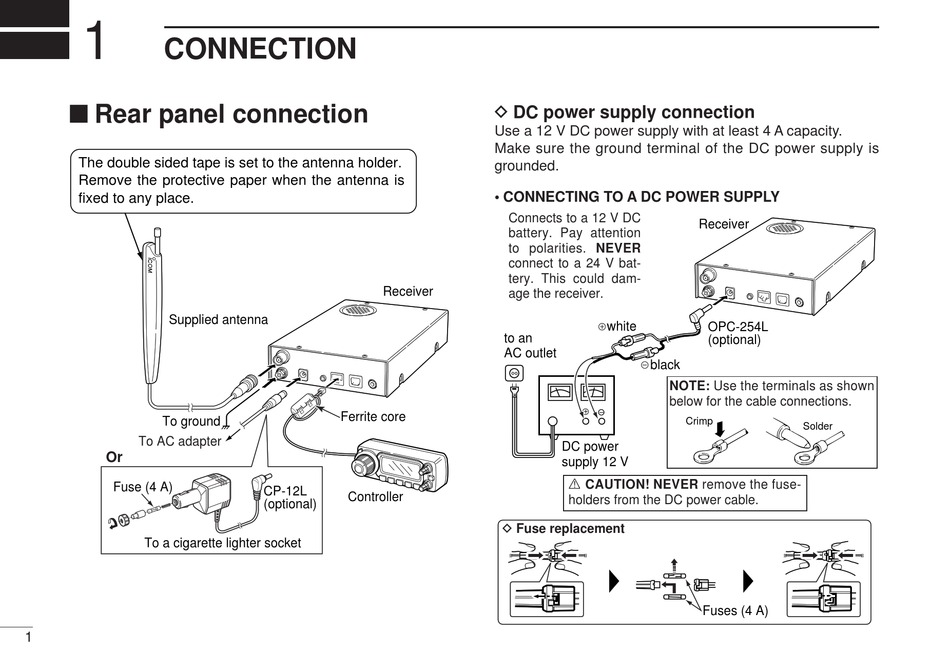

CONNECTION

■ Rear panel connection

The double sided tape is set to the antenna holder.
Remove the protective paper when the antenna is
fixed to any place.
Supplied antenna
To ground
To AC adapter
Or
Fuse (4 A)
To a cigarette lighter socket
1
Receiver
Ferrite core
CP-12L
Controller
(optional)
D DC power supply connection
Use a 12 V DC power supply with at least 4 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.
• CONNECTING TO A DC POWER SUPPLY
Connects to a 12 V DC
battery. Pay attention
to polarities. NEVER
connect to a 24 V bat-
tery. This could dam-
age the receiver.
white
to an
AC outlet
black
NOTE: Use the terminals as shown
below for the cable connections.
⊕ −
DC power
supply 12 V
R CAUTION! NEVER remove the fuse-
holders from the DC power cable.
D Fuse replacement
Receiver
OPC-254L
(optional)
Crimp
Solder
Fuses (4 A)
