BeFORe uSIng

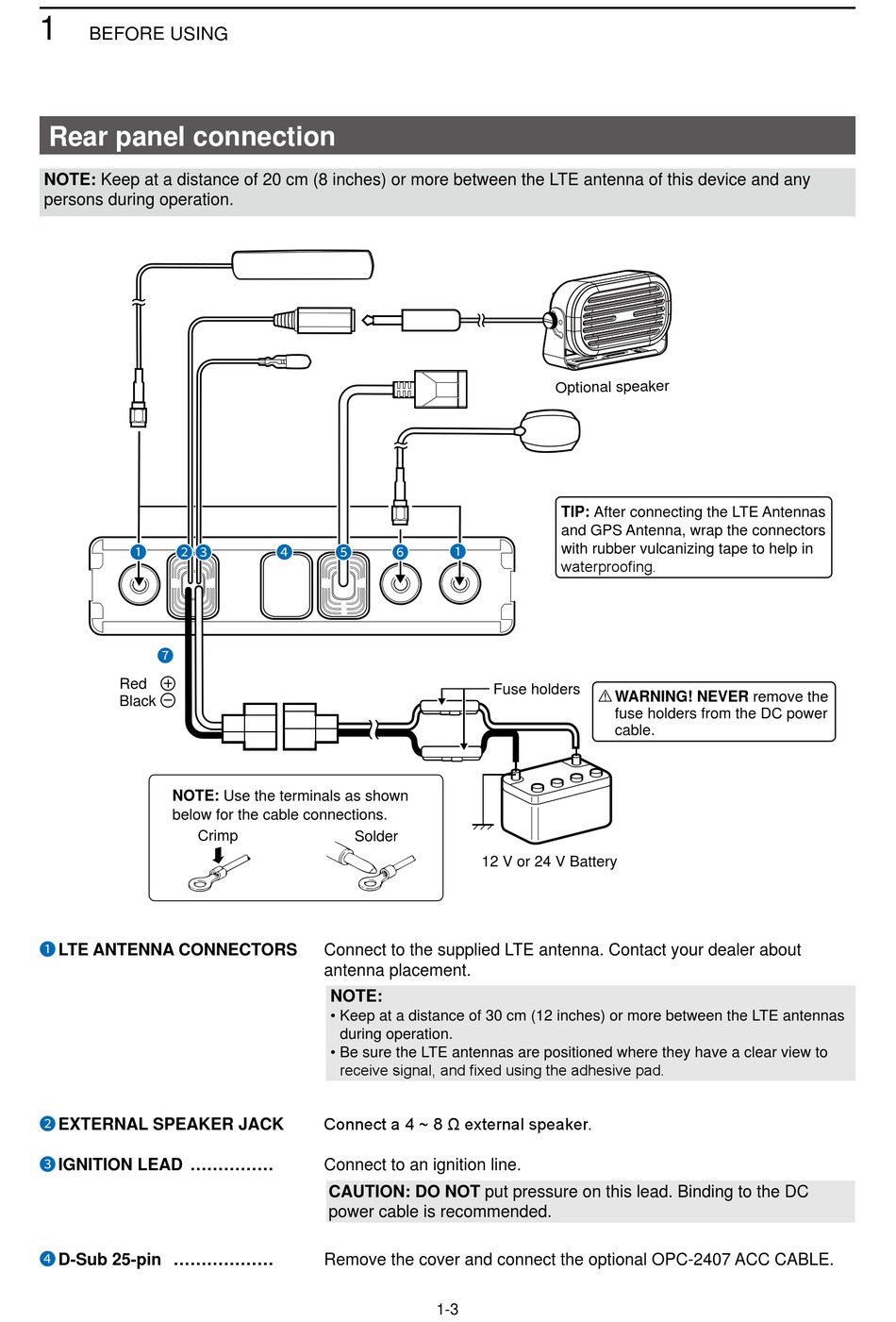

Rear panel connection
NOTE: Keep at a distance of 20 cm (8 inches) or more between the LTe antenna of this device and any
persons during operation.
1
2 3
7
Red
Black
NOTE: use the terminals as shown
below for the cable connections.
Crimp
1
LTE ANTENNA CONNECTORS
2
EXTERNAL SPEAKER JACK
3
IGNITION LEAD ...............
4
D-Sub 25-pin ..................
4
5
6
Solder
Connect to the supplied LTe antenna. Contact your dealer about
antenna placement.
NOTE:
• Keep at a distance of 30 cm (12 inches) or more between the LTe antennas
during operation.
• Be sure the LTe antennas are positioned where they have a clear view to
receive signal, and fi xed using the adhesive pad.
Connect a 4 ~ 8 Ω external speaker.
Connect to an ignition line.
CAUTION: DO NOT put pressure on this lead. Binding to the DC
power cable is recommended.
Remove the cover and connect the optional OPC-2407 ACC CABLe.
1-3
TIP: After connecting the LTe Antennas
and gPS Antenna, wrap the connectors
with rubber vulcanizing tape to help in
1
waterproofi ng.
Fuse holders
R WARNING! NEVER remove the
fuse holders from the DC power
cable.
12 V or 24 V Battery
