4
RECEIVE AND TRANSMIT

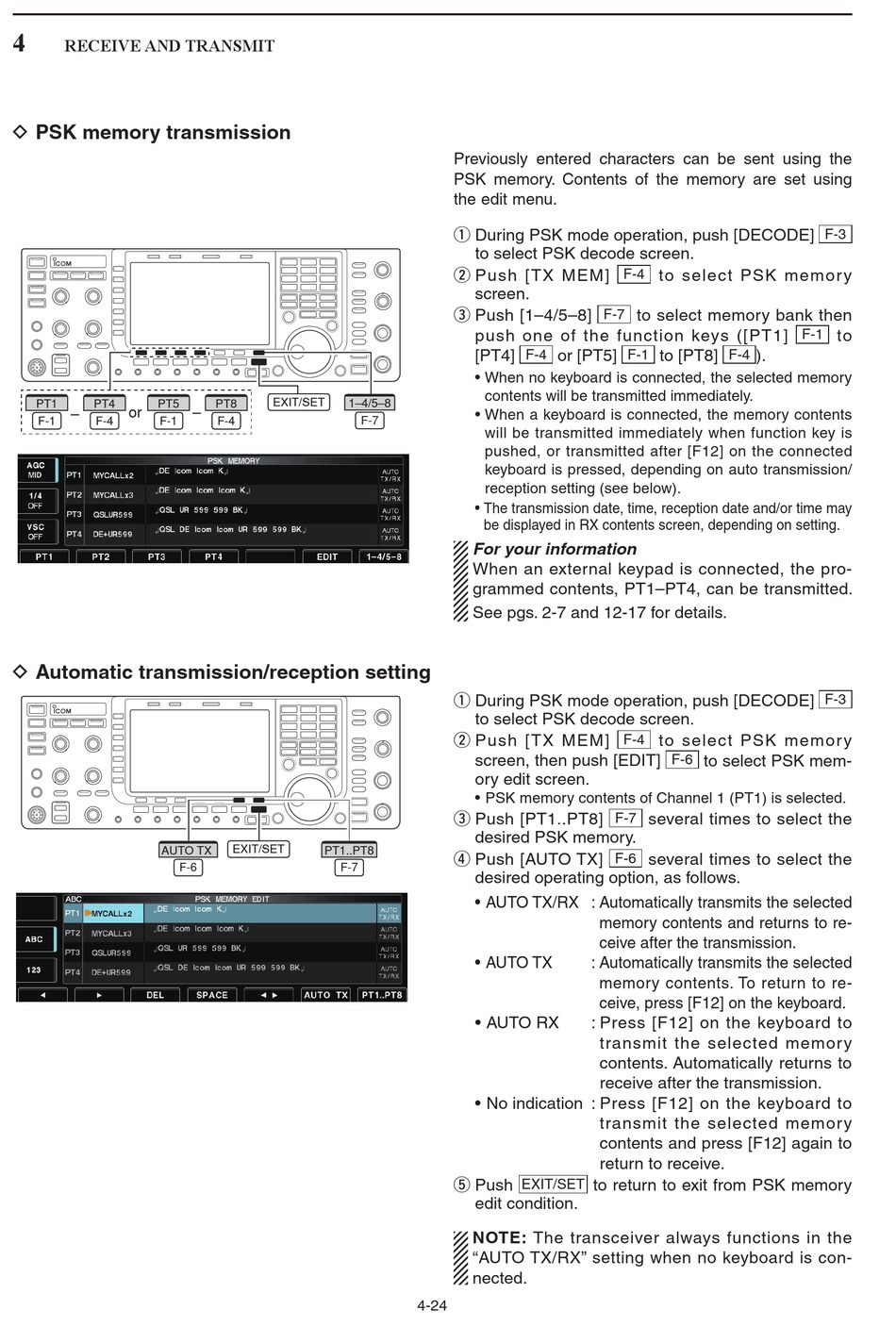

D PSK memory transmission

PT1 PT4 PT5
or
–
F-1 F-4 F-1

D Automatic transmission/reception setting

AUTO TX
F-6
EXIT/SET
PT8 1–4/5–8
–
F-4 F-7
EXIT/SET
PT1..PT8
F-7
Previously entered characters can be sent using the
PSK memory. Contents of the memory are set using
the edit menu.
q During PSK mode operation, push [DECODE]
to select PSK decode screen.
w Push [TX MEM]
screen.
e Push [1–4/5–8]
push one of the function keys ([PT1]
[PT4] or [PT5]
F-4
• When no keyboard is connected, the selected memory
contents will be transmitted immediately.
• When a keyboard is connected, the memory contents
will be transmitted immediately when function key is
pushed, or transmitted after [F12] on the connected
keyboard is pressed, depending on auto transmission/
reception setting (see below).
• The transmission date, time, reception date and/or time may
be displayed in RX contents screen, depending on setting.
For your information
When an external keypad is connected, the pro-
grammed contents, PT1–PT4, can be transmitted.
See pgs. 2-7 and 12-17 for details.
q During PSK mode operation, push [DECODE]
to select PSK decode screen.
w Push [TX MEM]
screen, then push [EDIT]
ory edit screen.
• PSK memory contents of Channel 1 (PT1) is selected.
e Push [PT1..PT8]
desired PSK memory.
r Push [AUTO TX]
desired operating option, as follows.
• AUTO TX/RX : Automatically transmits the selected
• AUTO TX
• AUTO RX
• No indication : Press [F12] on the keyboard to
t Push EXIT/SET
edit condition.
NOTE: The transceiver always functions in the
"AUTO TX/RX" setting when no keyboard is con-
nected.
4-24
to select PSK memor y
F-4
F-7 to select memory bank then
to [PT8] ).
F-1 F-4
to select PSK memor y
F-4
F-6 to select PSK mem-
F-7 several times to select the
several times to select the
F-6
memory contents and returns to re-
ceive after the transmission.
: Automatically transmits the selected
memory contents. To return to re-
ceive, press [F12] on the keyboard.
: Press [F12] on the keyboard to
transmit the selected memory
contents. Automatically returns to
receive after the transmission.
transmit the selected memory
contents and press [F12] again to
return to receive.
to return to exit from PSK memory
F-3
F-1 to
F-3
