Generating a
Dial Plan Report

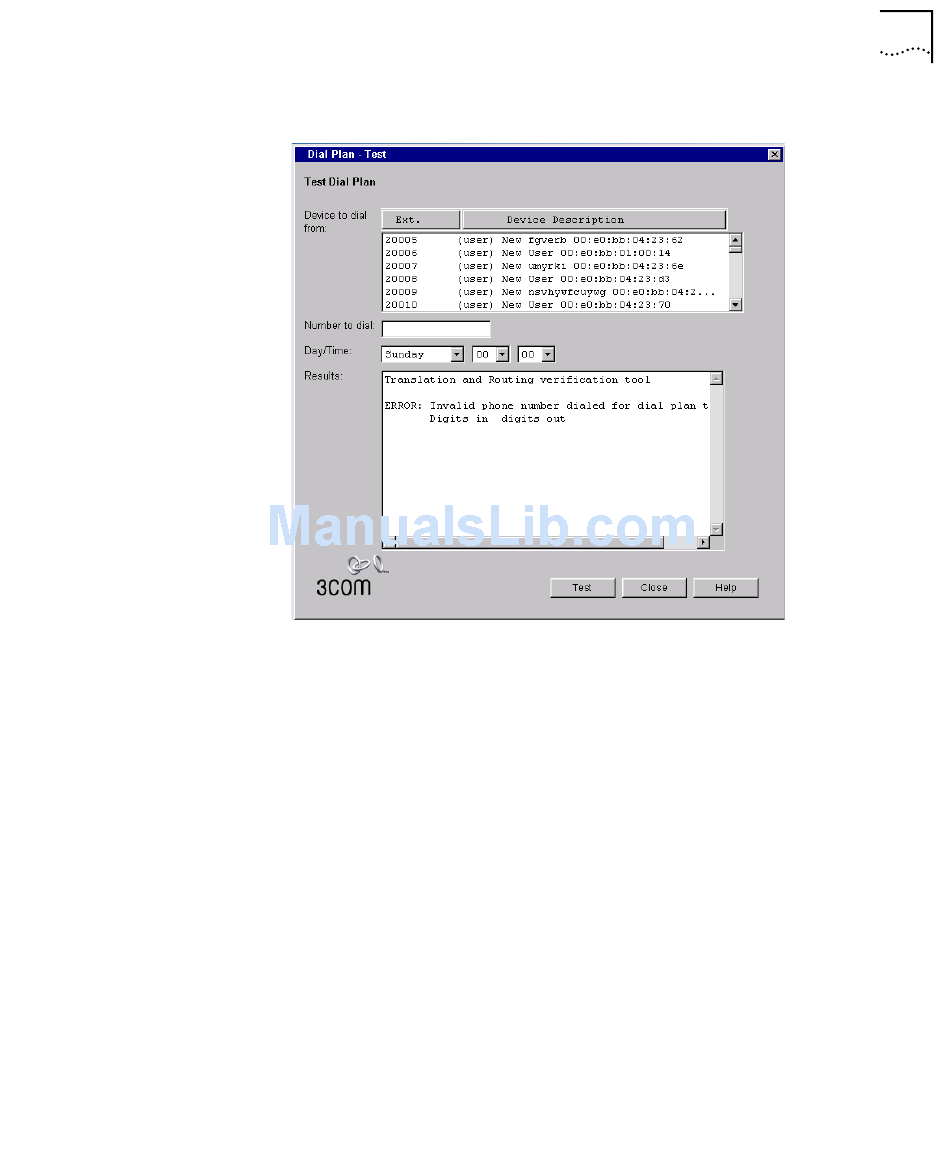

Figure 6 Dial Plan Test Results
This section describes how to create a report containing all dial plan
settings, tables, routes, and pretranslators. The report also performs
a consistency check to ensure that all dial plan table entries point to valid
routes which, in turn, point to valid extensions. The report also identifies
how many devices are using each dial plan table and each pretranslator.
Consider these common dial plan problems:
Dial plan table entries that point to nonexistent routes
■
Timed route entries that point to nonexistent destination routes
■
Destination route entries that point to nonexistent extensions or
■
empty extension lists
Timed route entries that overlap
■
Devices that do not specify a normal table
■
Managing the Dial Plan Configuration File 51
