Viewing Attendant
Console Status
C
ONFIGURATION
5 Click Apply to make the changes and then click OK.
Use the Status button on the Attendant Console tab to check the status
of an Attendant Console. You can also reboot it from this tab with the
Reset Device option.
To view the status of an Attendant Console:
1 In the NBX NetSet - Main Menu window, click Device Configuration . The
Device Configuration dialog box appears (Figure 49).
2 Click the Attendant Console tab. The Attendant Console dialog box
appears (Figure 63).
3 Select the Attendant Console for which you want to view the status and
click Status. The Device Status dialog box appears (Figure 66).

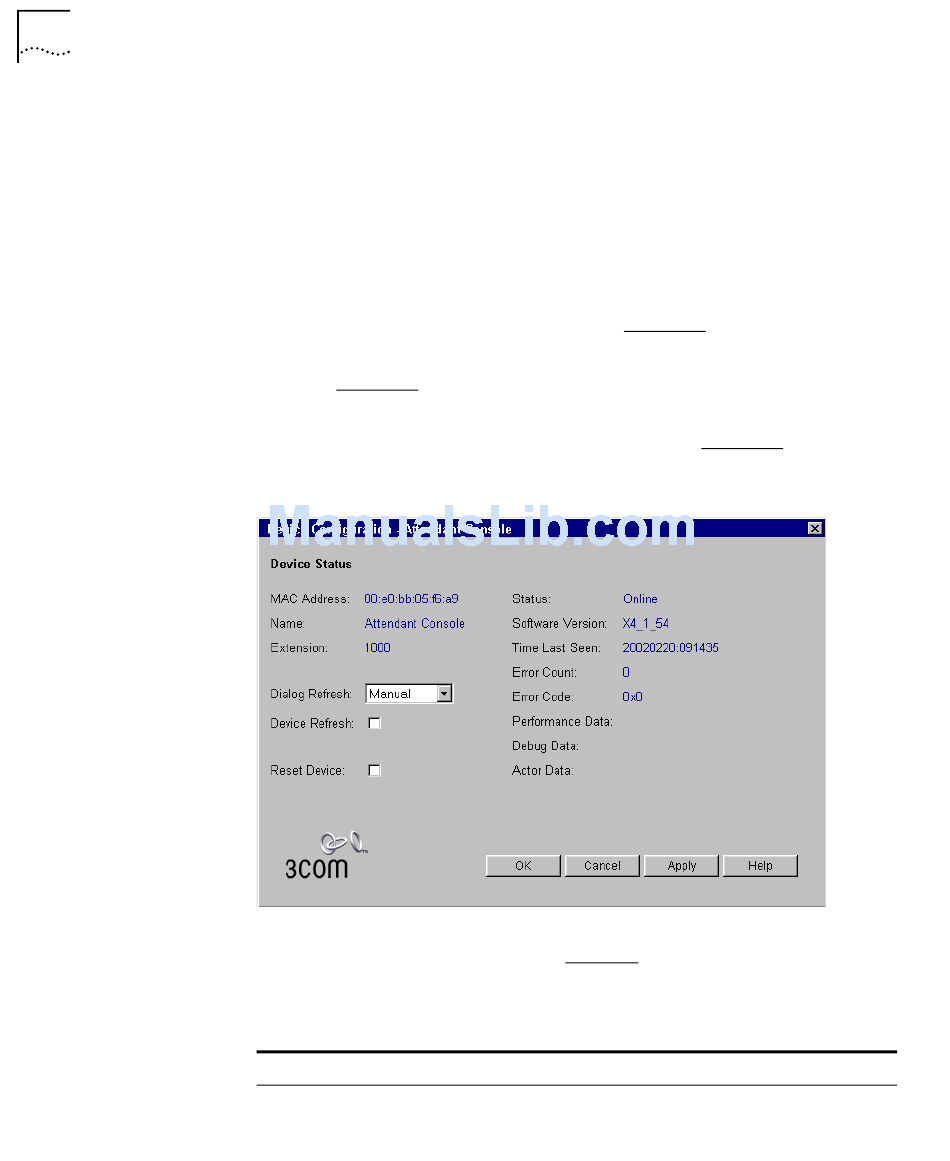

Figure 66 Device Status Dialog Box
4 View the settings and optionally change the Dialog Refresh, Device
Refresh, and Reset Device settings. Table 29 describes each field.
5 Click Apply to apply the settings and then click OK.
Table 29 Device Status Fields
Field
MAC Address
Purpose
The MAC (Media Access Control) address of the
Attendant Console.
