Configuring Vpim Parameters Using The Nbx Netset Utility; Vpim Control Parameters - 3Com SuperStack 3 NBX Administrator's Manual

Configuring VPIM
Parameters Using
the NBX NetSet
Utility
VPIM Control
Parameters

Configuring VPIM Parameters Using the NBX NetSet Utility

Using the NBX NetSet utility, you can configure several VPIM control
parameters, check the status of the VPIM queues, and obtain statistics on
recent VPIM activity.
To set the VPIM control parameters:
1 In the NBX NetSet - Main Menu window, click NBX Messaging.
2 Click the VPIM tab. See Figure 23. Table 15 describes the fields.

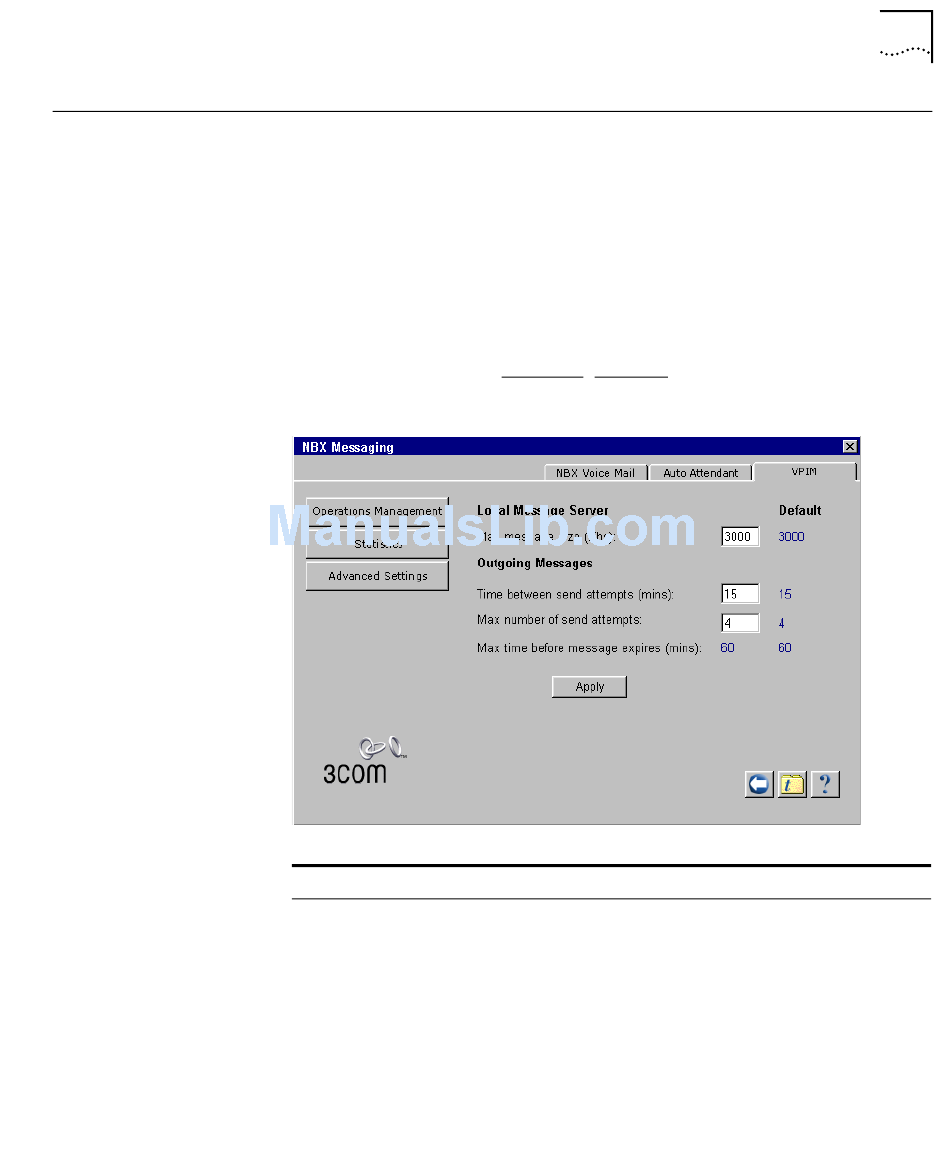

Figure 23 VPIM Tab
Table 15 VPIM Tab Fields
Field
Max message size
Purpose
Controls the size of incoming messages from other
sites. If a message is larger than the specified
value, the NBX system rejects it. The default value
represents a voice mail message approximately 4
to 5 minutes in length.
Default: 3000 Kbytes
79
