E-8 Compaq ProLiant DL380 Generation 2 Server Setup and Installation Guide
RJ-45 Network Connector LEDs
The RJ-45 network connector on the server rear panel contains two LEDs. Use
Figure E-5 and Table E-5 to identify location and status.
3
2
1

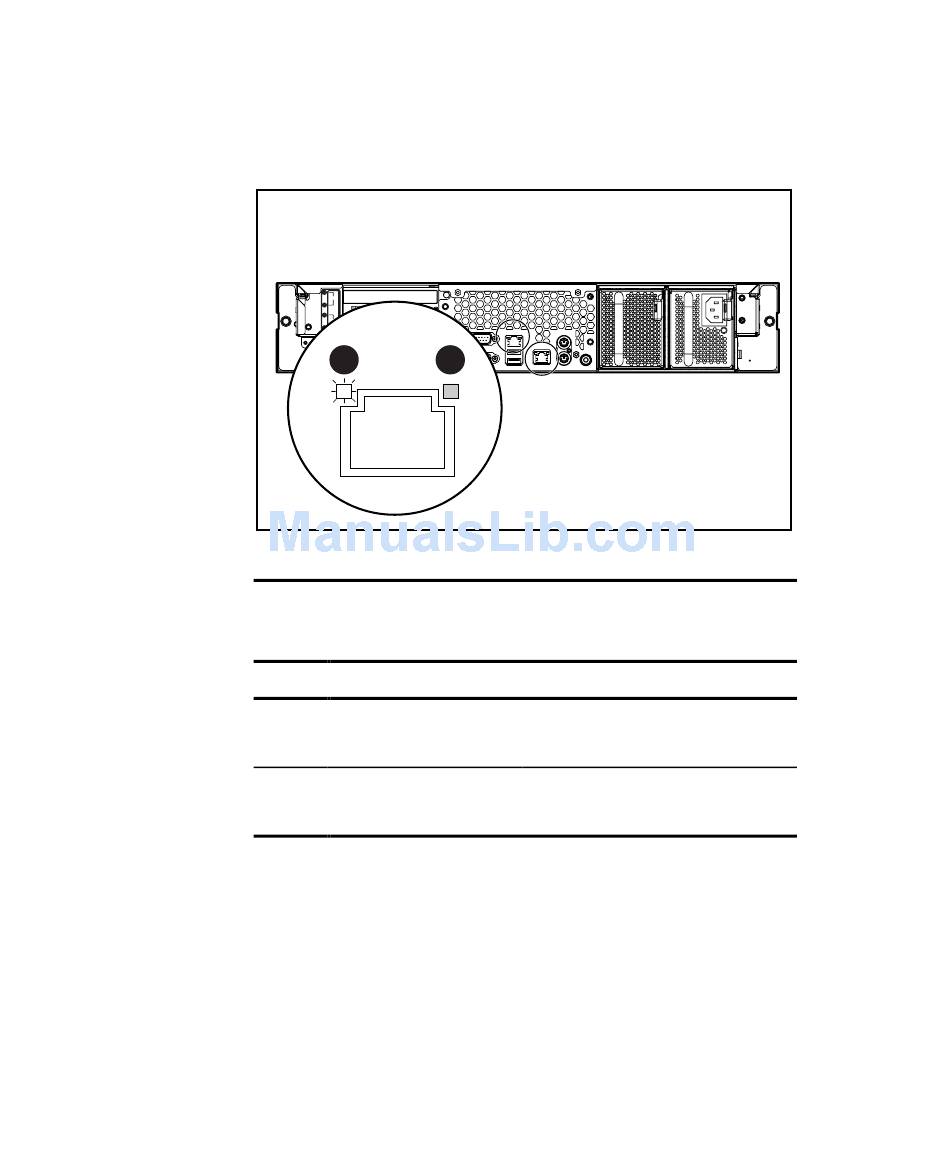

Figure E-5. RJ-45 network connector LEDs
RJ-45 Network Connector LEDs
Item
LED Description
Activity (green)
Link (green)
2
Table E-5
Status
On or flashing = Network activity
Off = No network activity
On = Linked to network
Off = Not linked to network
