Installing and Wiring the DP/ASi Link
4.4.6

Adapter Cable (6ES5 755-8CA11)

Usage
The adapter cable is required to connect the programmers (with programmer
interface module CP 5410-S5 DOS/ST) or the ET 200 Handheld to the
PROFIBUS-DP.
The programmer or the ET 200 Handheld are required for
Characteristics The adapter cable has the following characteristics:
Connections
The adapter cable has the following connections:
To connect the programmer, you also require the programmer connecting
cable.

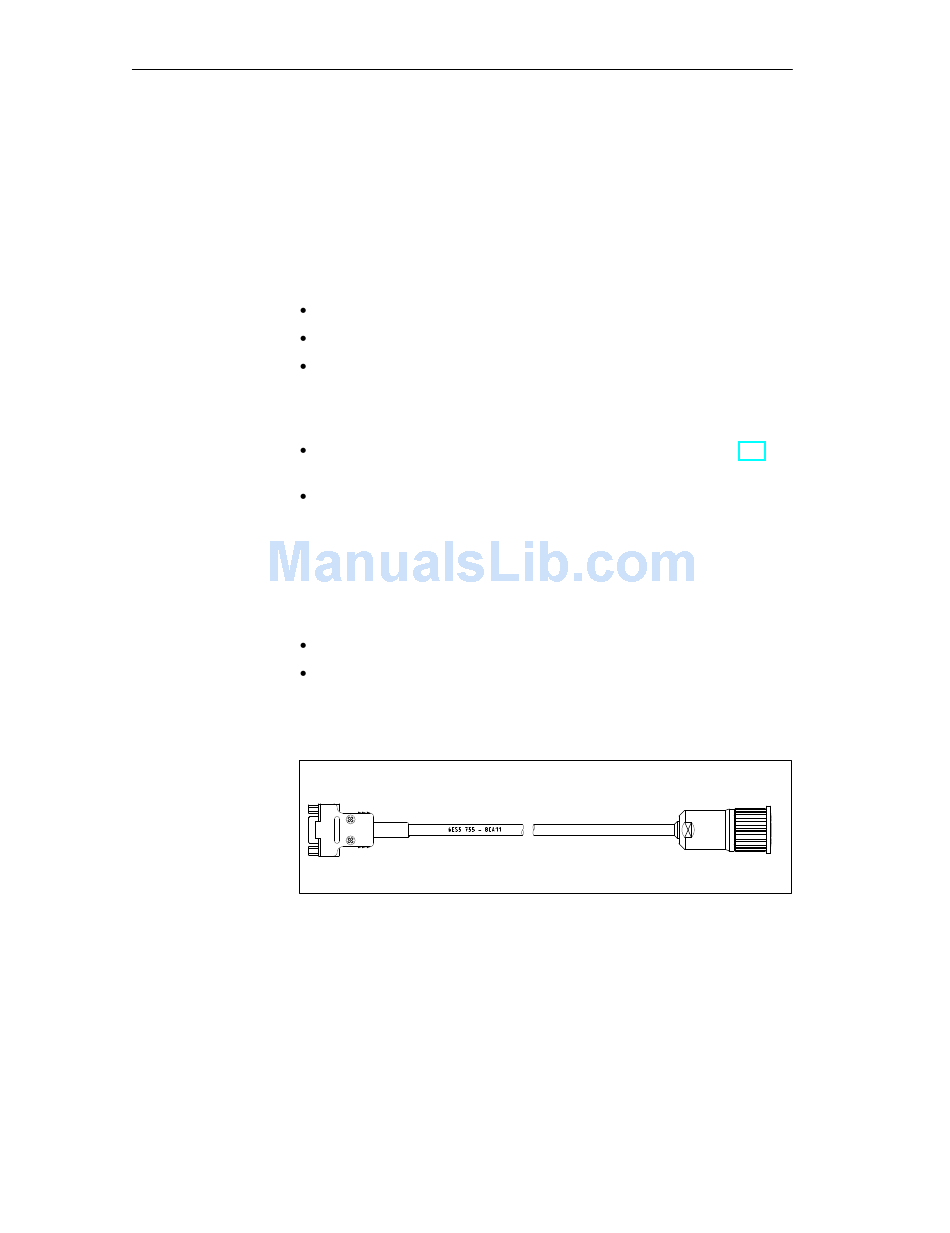

Figure 4-6
4-22
Setting the station number
Test and commissioning (not ET 200 Handheld)
Diagnostic functions (not ET 200 Handheld)
Degree of protection: IP 66/IP 67 (refer to installation rules, section 4.1)
only at extremity with IP 66/IP 67 bus connector
can be operated at the following baud rates
9.6; 19.2; 93.75; 187.5; 500; 1500; 3000; 6000 and 12000 kBd
The 3000, 6000 and 12000 kBd baud rates are possible only in the case of
operation with a suitable DP master – for example, the IM 308-C.
Bus connector in IP 20 (9-pin connector)
Bus connector in IP 66/IP 67 (12-pin connector)
Adapter cable
Distributed I/O System DP/ASi Link
EWA 4NEB 710 6055-02b
