Installing and Wiring the DP/ASi Link
4.4.1

T Connector (6ES5 762-2CT11)

Usage
You require a T connector for the following configurations:
This means that the PROFIBUS-DP can continue to run even when a slave
station is uncoupled via a T connector.
Characteristics The T connector has the following characteristics:
Connections A T connector has three bus connections:
The T connector is screwed with the 12-pin connector onto the bus connec-
tion of a DP/ASi link. Both bus connections of the DP/ASi link can be used
in all cases.

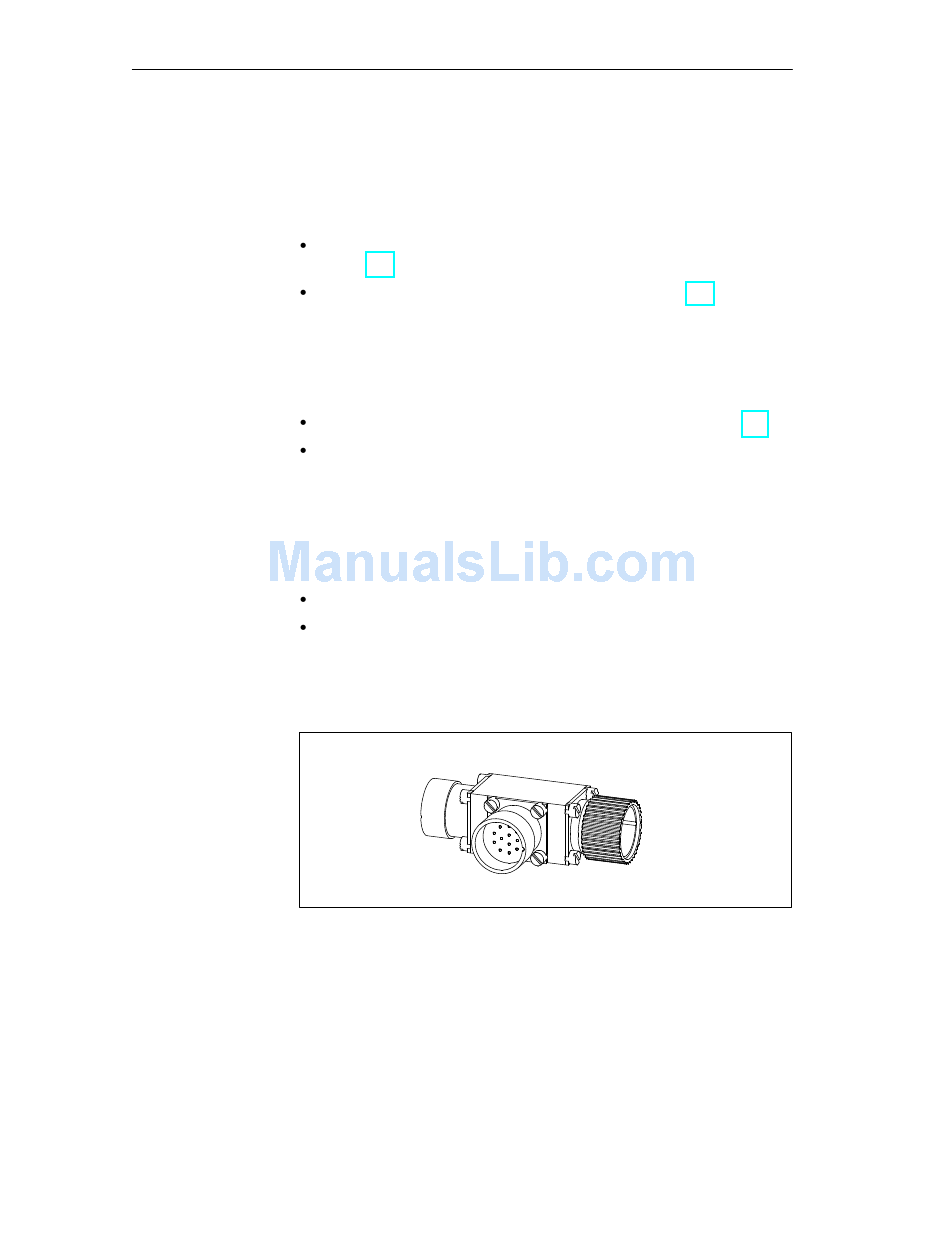

Figure 4-4
4-16
Configuration with power supply connector and T connectors (refer to
section 3.3)
Configuration with external power supply (refer to section 3.5)
Degree of protection: IP 66/IP 67 (refer to installation rules, section 4.1)
Can be operated with the following baud rates:
9.6; 19.2; 93.75; 187.5; 500; 1500; 3000; 6000 and 12000 kBd
The 3000, 6000 and 12000 kBd baud rates are possible only in the case of
operation with a suitable DP master – for example, the IM 308-C.
two 12-pin sockets
one 12-pin connector.
T connector
