Installing and Wiring the DP/ASi Link
4.2.3

Connecting the DP/ASi Link to ASi and PROFIBUS-DP

Pinout
The location of the three sockets of the DP/ASi link is described in Fig. A-1.
You will find the pinout of the DP/ASi link sockets in Table 4-2 and
Table 4-3.
Connecting the
Connect the ASi cable with the special terminal. Secure the connector with
ASi the union nut.
You obtain the special terminal for the ASi cable by quoting Order Number
6ES7 194-5AA00-0XA0. The assignment of the ASi socket can be seen in
Table 4-2.
You can also connect the ASi by using a 2-wire round cable.

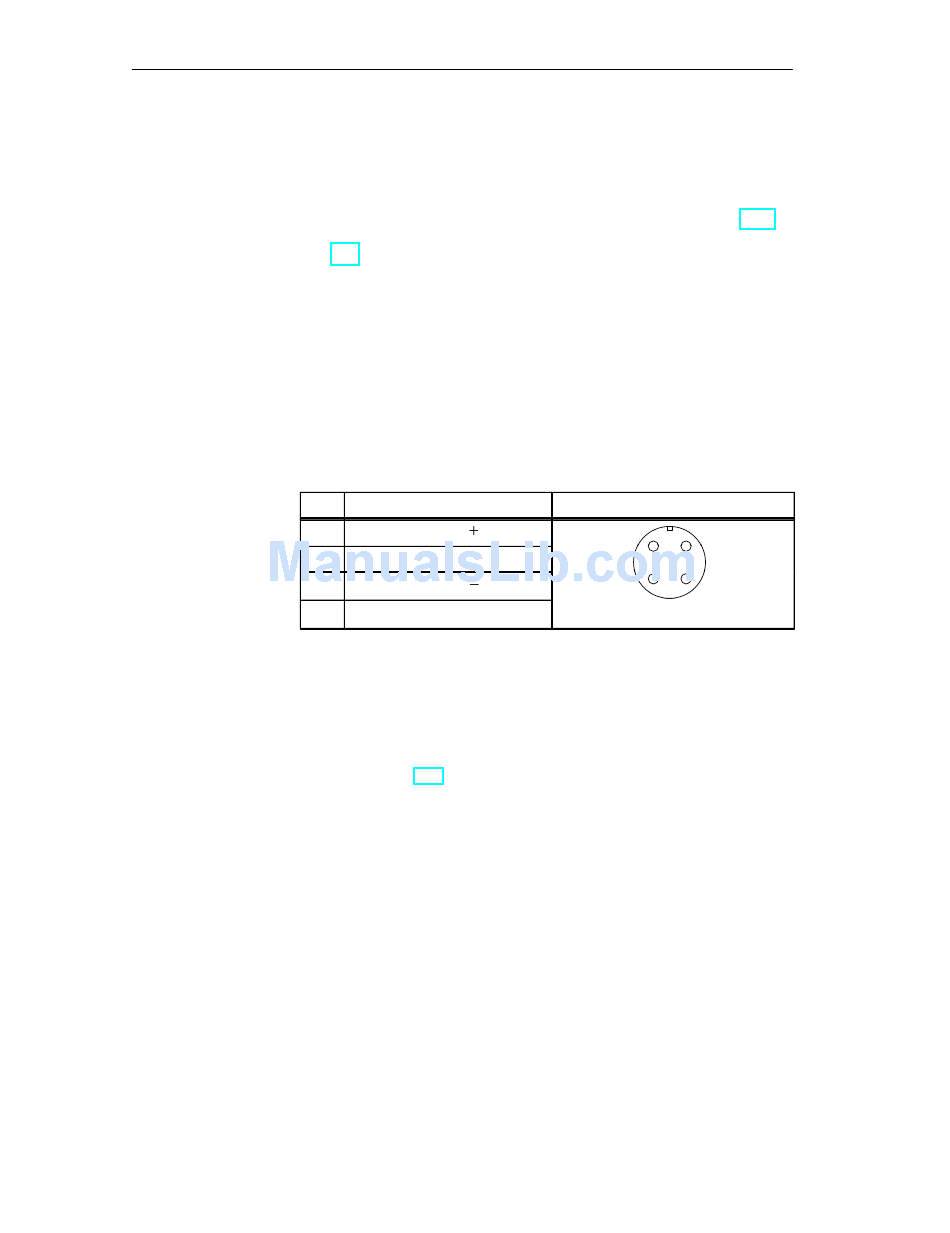

Table 4-2
Pin
1
2
Connecting the
Connect the PROFIBUS-DP using one of the two 12-pin device connectors
PROFIBUS-DP with a tee unit to the DP/ASi link. You will find the assignment of the 12-pin
connector in Table 4-3.
4-8

Pin assignment of ASi terminal connection

Assignment
1
1 ASi cable
2 Unused
2
3 ASi cable
4 Unused
Brown on Siemens sourced cable
Blue on Siemens sourced cable
View
1 2
1 2
4 3
View: mating side
Distributed I/O System DP/ASi Link
EWA 4NEB 710 6055-02b
