Configuration with T Connector and with Power Supply Connector

Definition
In a configuration with a power supply connector and a T connector, the DP/
ASi link is connected by means of a T connector to the PROFIBUS-DP.
The power supply is gated by means of the power supply connector with the
PROFIBUS-DP in a single cable.
Advantage
A slave station can be disconnected at any time from the bus without the "bus
traffic" being interrupted for the other slave stations.
The power supply is fed along the bus cable, i.e. an external power supply of
the slave station is not required.
Constraint The degree of expansion with a PS connector is limited (refer to section 3.4).
Cables You use cables of different design for the installation:
Installation Fig. 3-3 shows a possible installation for the configuration with a power sup-
ply connector and with a T connector:

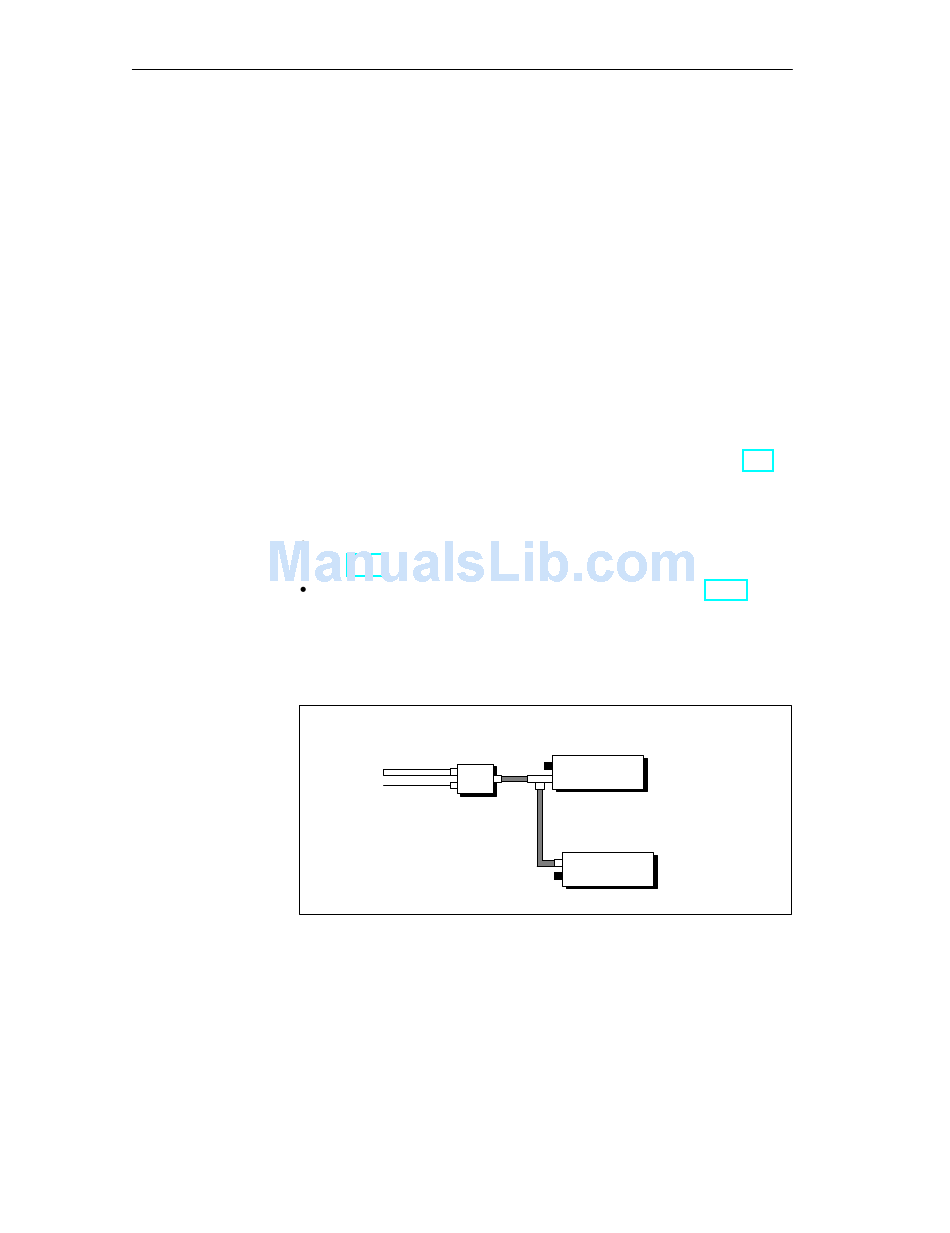

Figure 3-3
3-4
If you wish to use prefabricated Siemens cables, please turn to sec-
tion 4.4.4.
If you wish to prepare your own cables, please turn to section 4.4.7.
External
power supply
PS
PS
cntr
PROFIBUS-DP

PROFIBUS-DP and power supply looped through by means of T

connector

DP/ASi link
DP/ASi link
