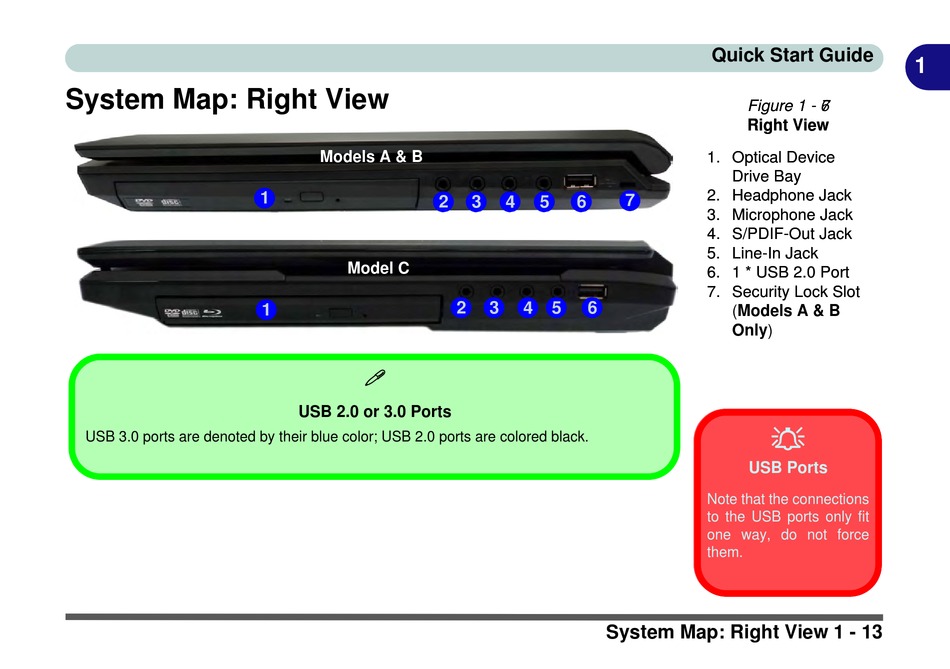

System Map: Right View

USB 3.0 ports are denoted by their blue color; USB 2.0 ports are colored black.
Models A & B
1
2
Model C
1

USB 2.0 or 3.0 Ports
7
3 4 5 6
2 3 4 5 6
System Map: Right View 1 - 13
Quick Start Guide
Figure 1 - 7 Figure 1 - 6
Right View Right View
1. Optical Device 1. Optical Device
Drive Bay Drive Bay
2. Headphone Jack 2. Headphone Jack
3. Microphone Jack 3. Microphone Jack
4. S/PDIF-Out Jack 4. S/PDIF-Out Jack
5. Line-In Jack 5. Line-In Jack
6. 1 * USB 2.0 Port 6. 1 * USB 2.0 Port
7. Security Lock Slot 7. Security Lock Slot
(Models A & B
Only)


USB Ports
USB Ports
Note that the connections
Note that the connections
to the USB ports only fit
to the USB ports only fit
one way, do not force
one way, do not force
them.
them.
