EUROCOM Notebook User Manual page 251

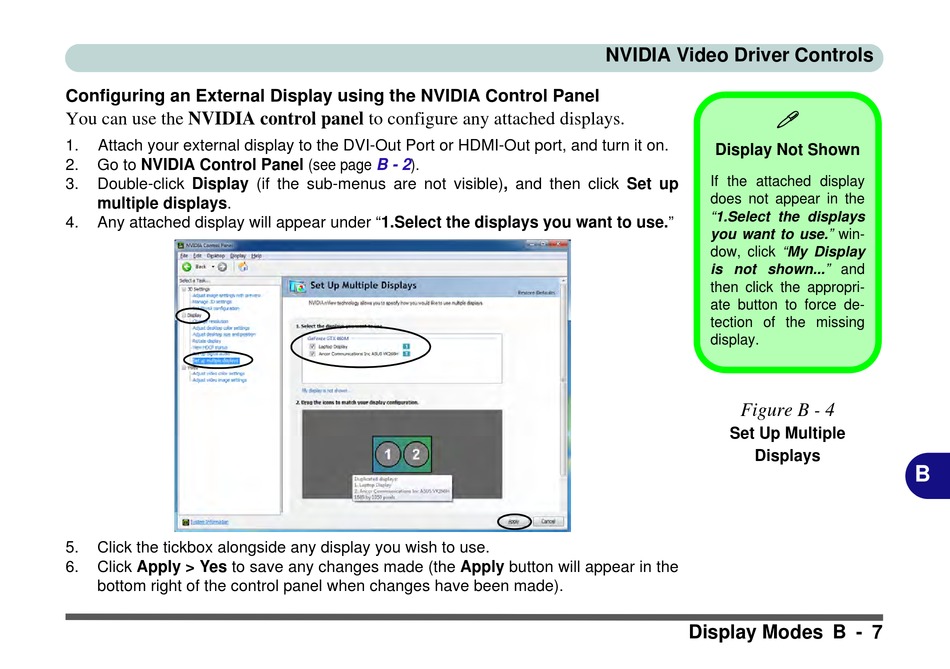

Configuring an External Display using the NVIDIA Control Panel
You can use the NVIDIA control panel to configure any attached displays.
1. Attach your external display to the DVI-Out Port or HDMI-Out port, and turn it on.
2. Go to NVIDIA Control Panel (see page
3. Double-click Display (if the sub-menus are not visible), and then click Set up
multiple displays.
4. Any attached display will appear under "1.Select the displays you want to use."
5. Click the tickbox alongside any display you wish to use.
6. Click Apply > Yes to save any changes made (the Apply button will appear in the
bottom right of the control panel when changes have been made).
B - 2).
NVIDIA Video Driver Controls

Display Not Shown
If the attached display
does not appear in the
"1.Select the displays
you want to use." win-
dow, click "My Display
is not shown..." and
then click the appropri-
ate button to force de-
tection of the missing
display.
Figure B - 4
Set Up Multiple
Displays
Display Modes B - 7
B
