EUROCOM Notebook User Manual page 124

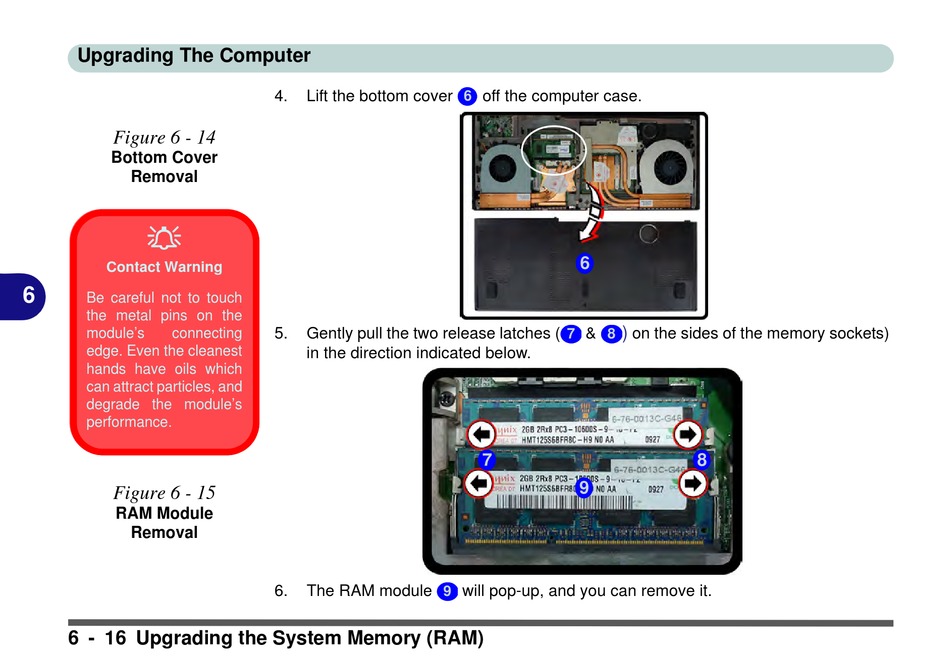

Upgrading The Computer
Figure 6 - 14
Bottom Cover
Removal

Contact Warning
6
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module's
performance.
Figure 6 - 15
RAM Module
Removal
6 - 16 Upgrading the System Memory (RAM)
4. Lift the bottom cover
5. Gently pull the two release latches (
in the direction indicated below.
6. The RAM module
9
off the computer case.
6
6
)
& on the sides of the memory sockets)
7 8
7
9
will pop-up, and you can remove it.
8
