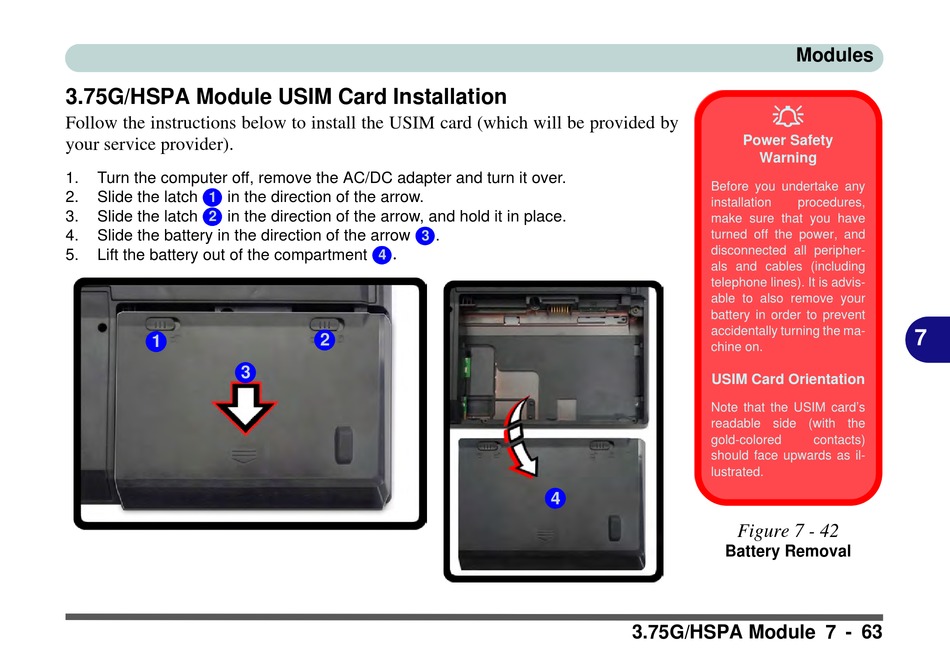

3.75G/HSPA Module USIM Card Installation

Follow the instructions below to install the USIM card (which will be provided by
your service provider).
1. Turn the computer off, remove the AC/DC adapter and turn it over.
2. Slide the latch in the direction of the arrow.
1
3. Slide the latch in the direction of the arrow, and hold it in place.
2
4. Slide the battery in the direction of the arrow
5. Lift the battery out of the compartment
1
3
.
3
.
4
2
Before you undertake any
installation
make sure that you have
turned off the power, and
disconnected all peripher-
als and cables (including
telephone lines). It is advis-
able to also remove your
battery in order to prevent
accidentally turning the ma-
chine on.
USIM Card Orientation
Note that the USIM card's
readable side (with the
gold-colored
should face upwards as il-
lustrated.
4
Battery Removal
3.75G/HSPA Module 7 - 63
Modules

Power Safety
Warning
procedures,
7
contacts)
Figure 7 - 42
