Quick Start Guide
1

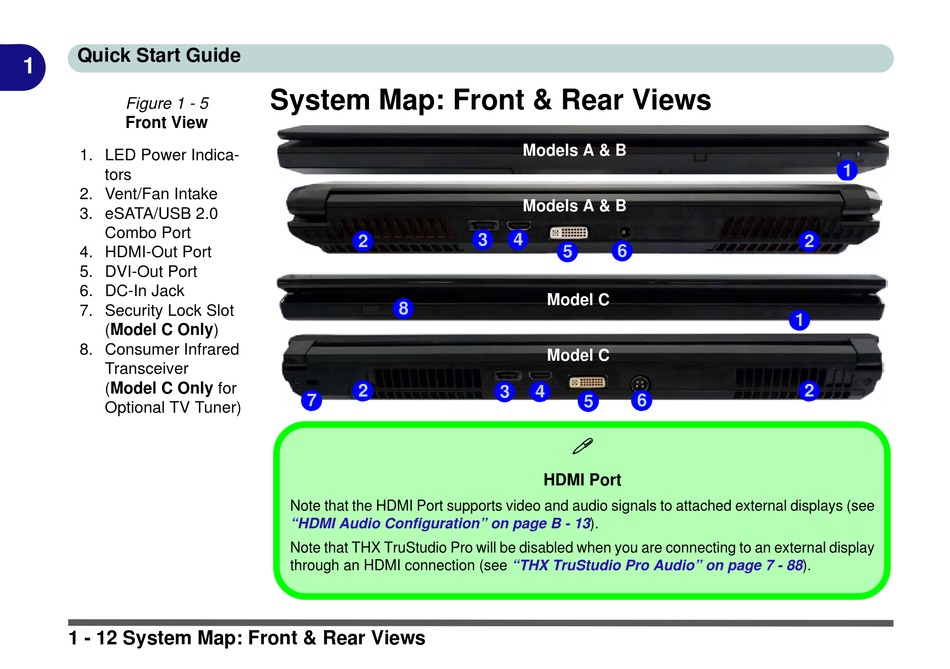

Figure 1 - 5
Front View
1. LED Power Indica-
tors
2. Vent/Fan Intake
3. eSATA/USB 2.0
Combo Port
4. HDMI-Out Port
5. DVI-Out Port
6. DC-In Jack
7. Security Lock Slot
(Model C Only)
8. Consumer Infrared
Transceiver
(Model C Only for
Optional TV Tuner)
1 - 12 System Map: Front & Rear Views
System Map: Front & Rear Views
2
8
2
7
Note that the HDMI Port supports video and audio signals to attached external displays (see
"HDMI Audio Configuration" on page B -
Note that THX TruStudio Pro will be disabled when you are connecting to an external display
through an HDMI connection (see
Models A & B
Models A & B
3 4
6
5
Model C
Model C
3 4
6
5

HDMI Port
13).
"THX TruStudio Pro Audio" on page 7 -
1
2
1
2
88).
