System Map: Bottom View - Model C - EUROCOM Notebook User Manual

Quick Start Guide
1

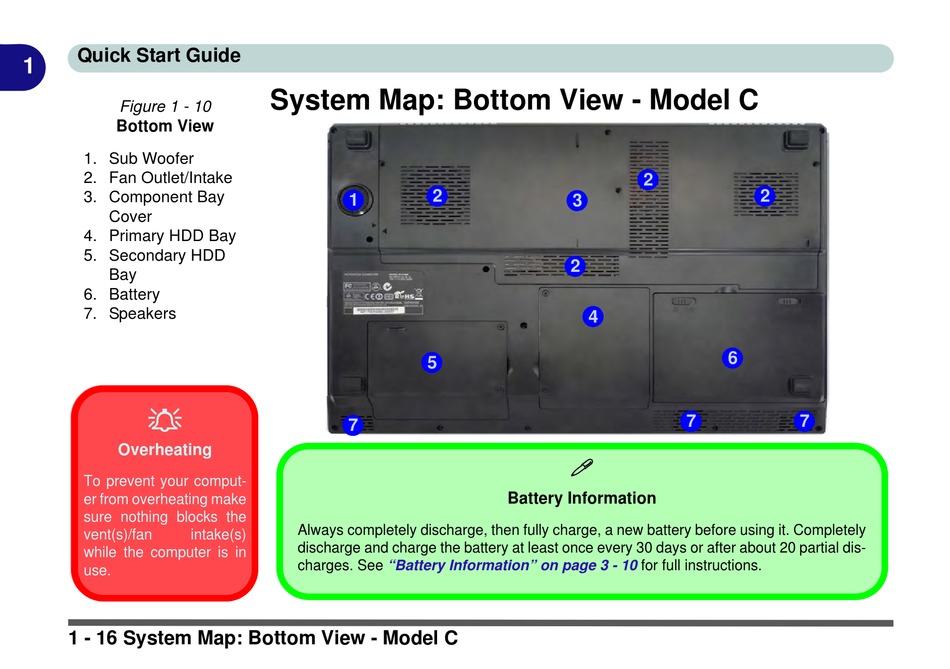

Figure 1 - 10
Bottom View
1. Sub Woofer
2. Fan Outlet/Intake
3. Component Bay
Cover
4. Primary HDD Bay
5. Secondary HDD
Bay
6. Battery
7. Speakers

Overheating
To prevent your comput-
er from overheating make
sure nothing blocks the
vent(s)/fan intake(s)
while the computer is in
use.

1 - 16 System Map: Bottom View - Model C

System Map: Bottom View - Model C
2
1
5
7
Always completely discharge, then fully charge, a new battery before using it. Completely
discharge and charge the battery at least once every 30 days or after about 20 partial dis-
charges. See "Battery Information" on page 3 - 10
2
3
2
4
6 6 7

Battery Information
for full instructions.
2
6
7
