Removing the Hard Disk from the Primary HDD Bay
Note that only Model A/B is pictured, however the procedure for removing the pri-
mary hard disk from Model C is identical.
1. Turn the computer off, remove the AC/DC adapter, turn it over and remove the bat-
tery.
2. Locate the hard disk bay cover and remove screws
3. Remove the hard disk bay cover by levering the cover at point
1
3
&
1
2
Upgrading The Computer
.
2
.
3
3
Upgrading the Hard Disk Drive(s) 6 - 7

RAID Hard Disks
All hard disks in a RAID
should be identical (the
same size and brand) in
order to prevent unex-
pected system behavior.

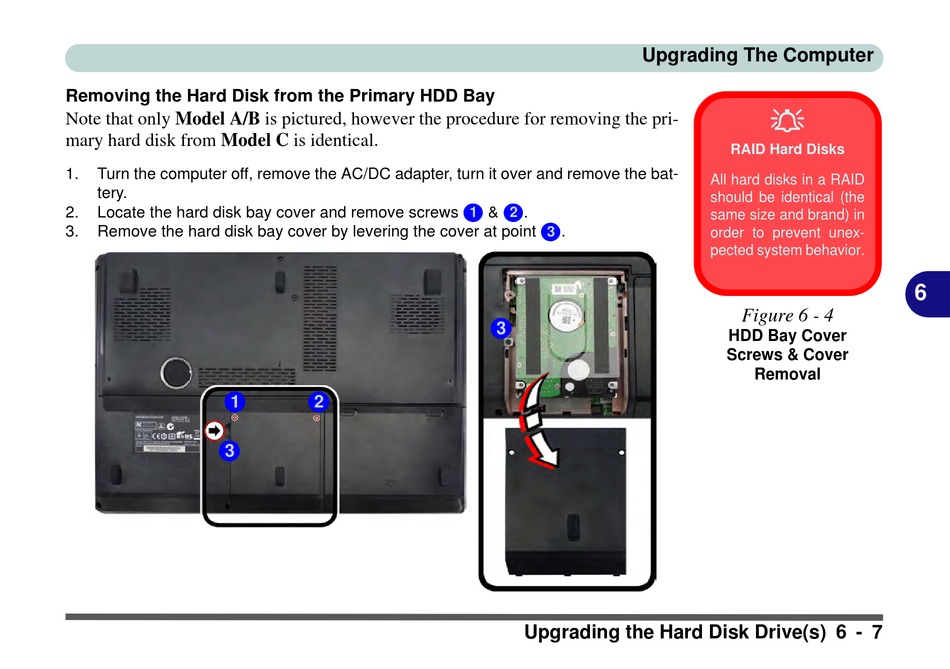

Figure 6 - 4
HDD Bay Cover
Screws & Cover
Removal
